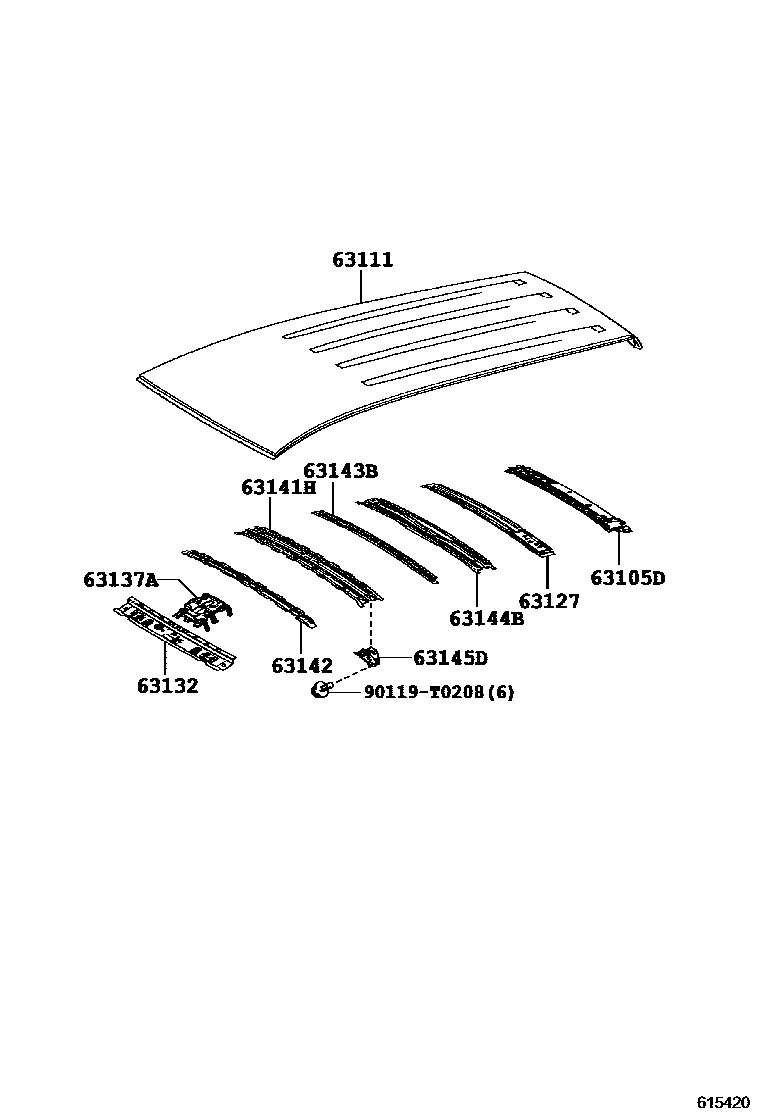

Toyota INNOVA — ROOF PANEL & BACK PANEL

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63107-0K020iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main63107-0K030iGUN142..5F..IND202011

63111PANEL, ROOF

main63111-0K100iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

main63111-0K110iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

63127REINFORCEMENT, ROOF PANEL, NO.5

main63106-0K030iGUN142..TH201511-201707

main63106-0K050iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

63132PANEL, WINDSHIELD HEADER, INNER

main63132-0K020iTGN140..5F..MA201511-201905

main63132-0K040iGUN142..5F..IND202011

63137ABRACKET, DOME LAMP, NO.1

main63137-0K060iGUN142..TH201511-201707

main63137-0K070iGUN14#..IND201604-202001

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0K020iGUN142..TH201511-201707

main63141-0K050iGUN142..5F..IND202011

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0K040iTGN140..5F..MA201511-201905

main63142-0K060iGUN14#..IND201604-202001

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0K030iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main63143-0K040iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0K030iTGN140..5F..MA201511-201905

main63144-0K040iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

63145DBRACKET, ROOF REINFORCEMENT

main63145-0K010×2iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main63145-0K020×2iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

90119T0208

main90119-T0208

11 parts on this diagram · 1 diagram in section
