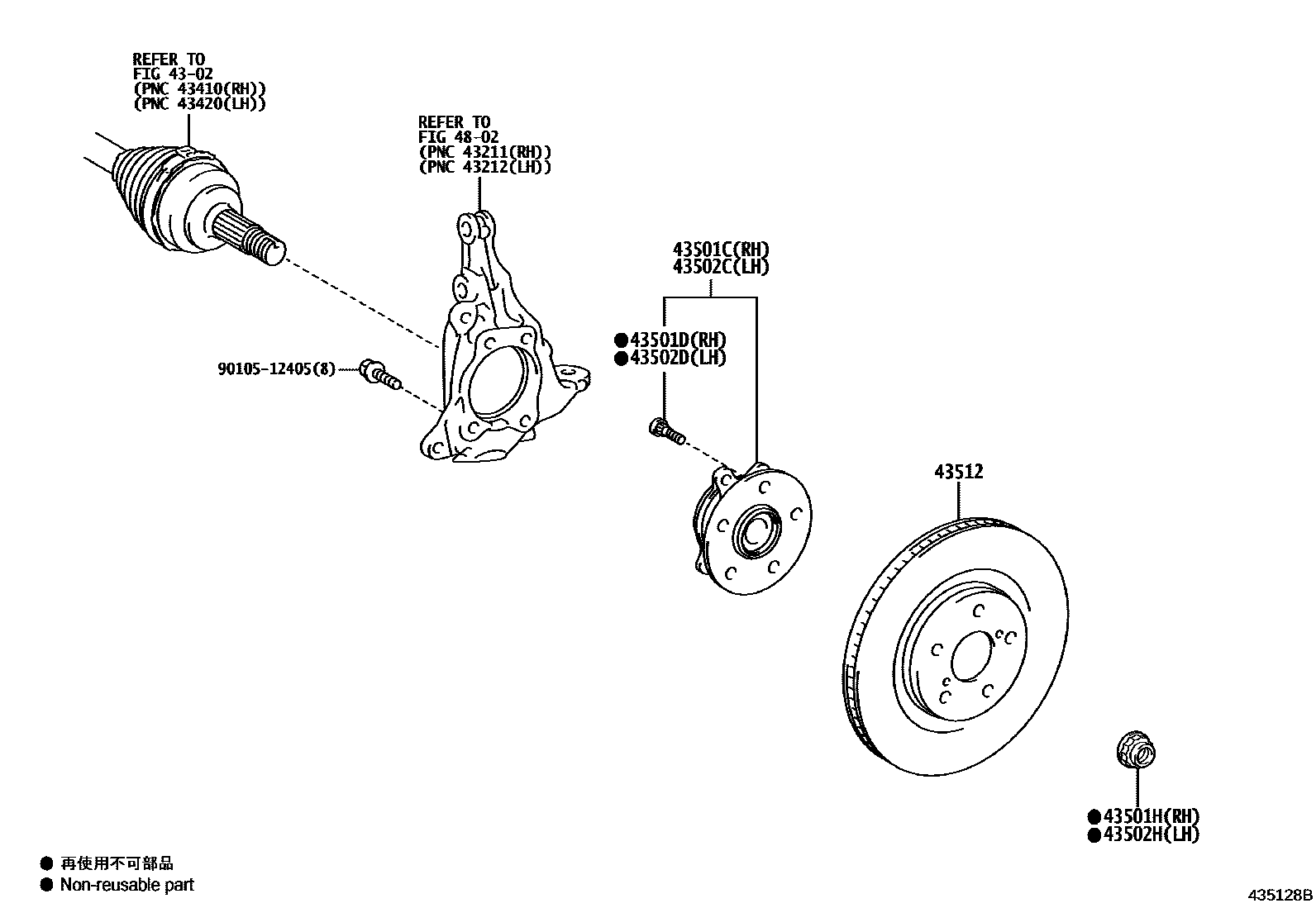

Toyota INNOVA — FRONT AXLE HUB
4302FRONT DRIVE SHAFT
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
(J)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
(J)
43512DISC, FRONT
4802FRONT AXLE ARM & STEERING KNUCKLE
9010512405
main90105-12405
10 parts on this diagram · 1 diagram in section
FRONT AXLE HUB for Toyota INNOVA
This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota INNOVA. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
