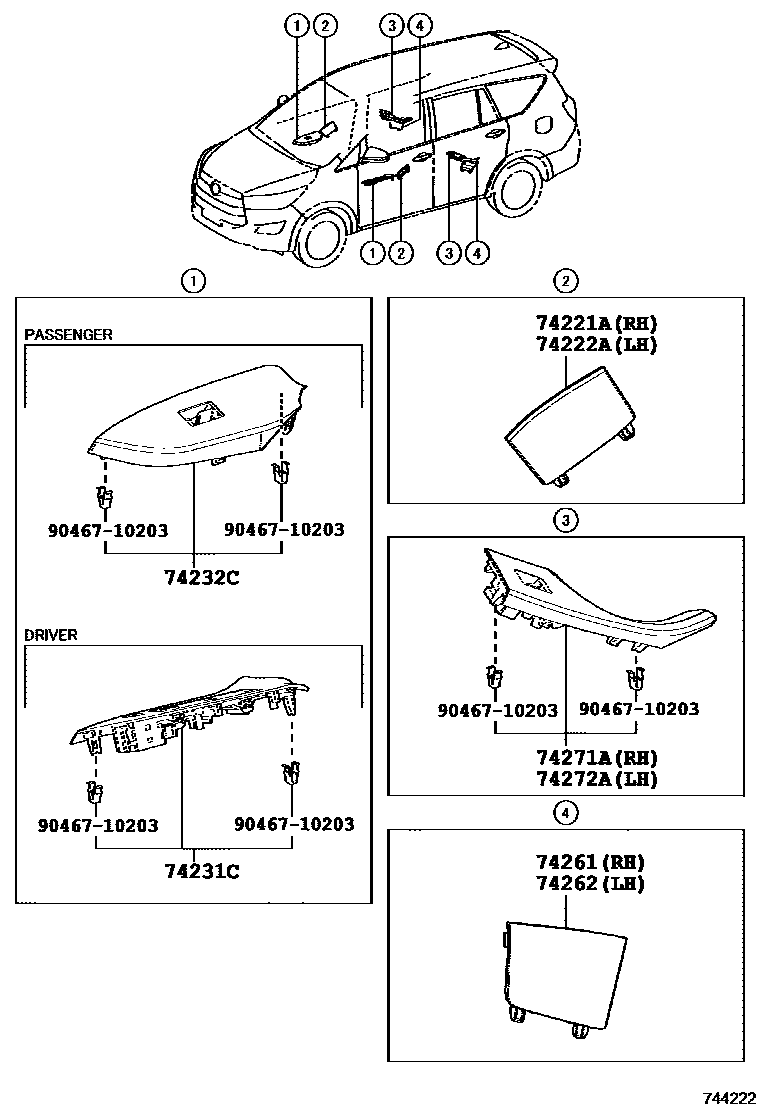

Toyota INNOVA — ARMREST & VISOR
74221ACOVER, FRONT DOOR ARMREST, RH
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
74222ACOVER, FRONT DOOR ARMREST, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
SEAT COVER MATERIAL-FULL HI FOR MPV
main74231-0K540iTGN140..20G..MA;GUN142..(24Q,24V)..IDN;GUN143,TGN140..RHD..(IDNP,MAP)..(20Q,20V,28G,28V)201511-202008
GRADE MARK-V
OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(*RCM)
SEAT COVER MATERIAL-FULL HI FOR MPV
SEAT COVER MATERIAL-FULL HI FOR MPV
74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
main74231-0K550iGUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..LHD..(IDNP,VNP)..(20E,N)201511-202304
SEAT COVER MATERIAL-FULL HI FOR MPV
SEAT COVER MATERIAL-FULL HI FOR MPV
SEAT COVER MATERIAL-FULL HI(FOR MPV)
main74232-0K530iTGN140..20G..MA;GUN142..(24Q,24V)..IDN;GUN143,TGN140..RHD..(IDNP,MAP)..(20Q,20V,28G,28V)201511-202008
SEAT COVER MATERIAL-FULL HI FOR MPV
GRADE MARK-V
74261COVER, REAR DOOR ARMREST, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
74262COVER, REAR DOOR ARMREST, LH
main74048-0K010-C0iTGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH)201511-202304
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
SEAT COVER MATERIAL-FULL HI FOR MPV
main74271-0K280iGUN143..28V..GCC;GUN143,TGN140..(20G,28G,28V)..(MA,PHL,TH,VN);GUN142,TGN140..(20Q,20V,24Q,24V)..(GEN,IDN,MA,VN)201511-202008
SEAT COVER MATERIAL-FULL HI FOR MPV
main74271-0K281iTGN140..20V..VN;GUN142,TGN141..MA,TH,VN;GUN14#,TGN140..(20,20Q,20V,24V,28,28V)..(IDN,MA,PHL)202009-202102
SEAT COVER MATERIAL-FULL HI(FOR MPV)
GRADE MARK-V
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
SEAT COVER MATERIAL-FULL HI FOR MPV
main74272-0K280iGUN143..28V..GCC;GUN143,TGN140..(20G,28G,28V)..(MA,PHL,TH,VN);GUN142,TGN140..(20Q,20V,24Q,24V)..(GEN,IDN,MA,VN)201511-202008
SEAT COVER MATERIAL-FULL HI FOR MPV
SEAT COVER MATERIAL-FULL HI(FOR MPV)
GRADE MARK-V
9046710203
main90467-10203
9 parts on this diagram · 4 diagrams in section
ARMREST & VISOR for Toyota INNOVA
This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota INNOVA. Key components include: ROOF HEADLINING & SILENCER PAD, COVER, FRONT DOOR ARMREST, RH, COVER, FRONT DOOR ARMREST, LH, PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE, PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE.
