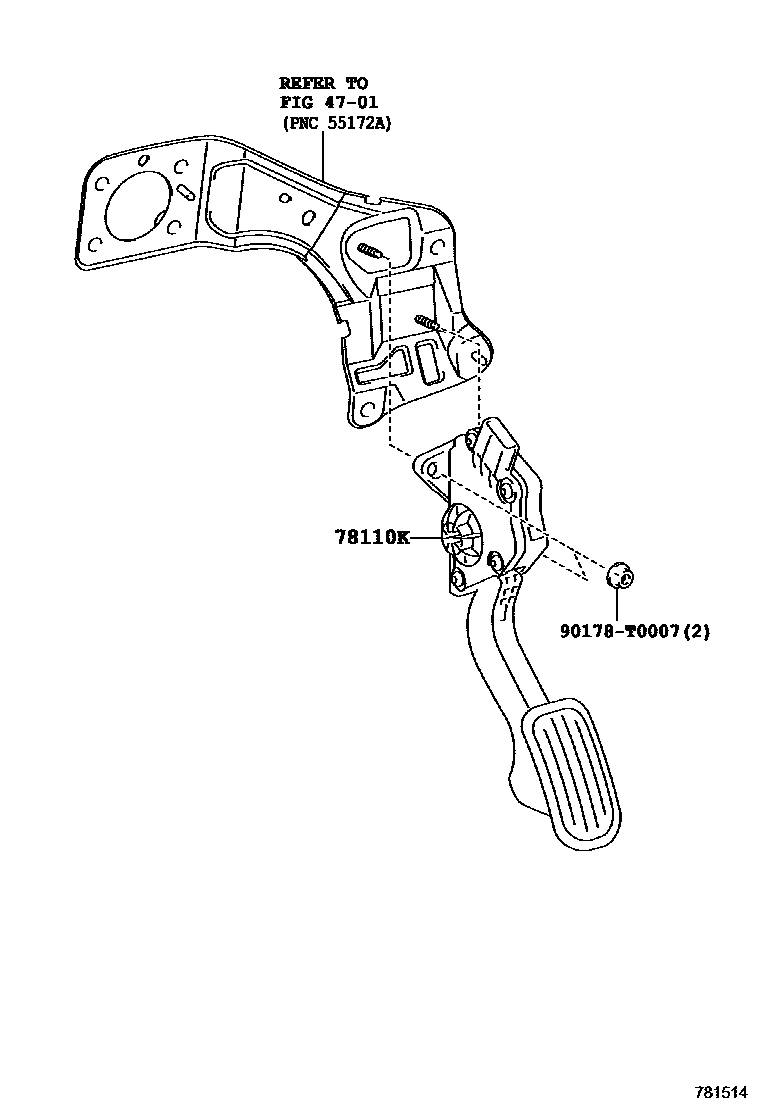

Toyota INNOVA — ACCELERATOR LINK

0001 1 0003 1 0005 1 0006 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0K010iGUN142,TGN140..RHD201511-201603

main78110-0K020iGUN142,TGN141..LHD201511-201603

main78110-0K030iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

main78110-0K040iGUN142,TGN140..GEN,SA201604-201807

main78110-KK010iTGN140..(20E,20V)..MA;GUN142,TGN140..(20G,20Q,24V,N)..(IDN,TH);GUN14#,TGN141..RHD..(20G,24,24G,24Z,27G,27Z,28V,G)202009-202105

main78110-KK011iTGN140..TH;GUN14#..RHD..(20G,28V)202106-202304

main78110-KK020iTGN140..20E..VN;TGN140..LHD..IDNP;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN14#,TGN141..LHD..(24V,27,28,28E,28V,G,N,SRV)202009-202105

main78110-KK021iGUN143,TGN14#..PHL,VN202106

90178T0007

main90178-T0007

3 parts on this diagram · 4 diagrams in section
