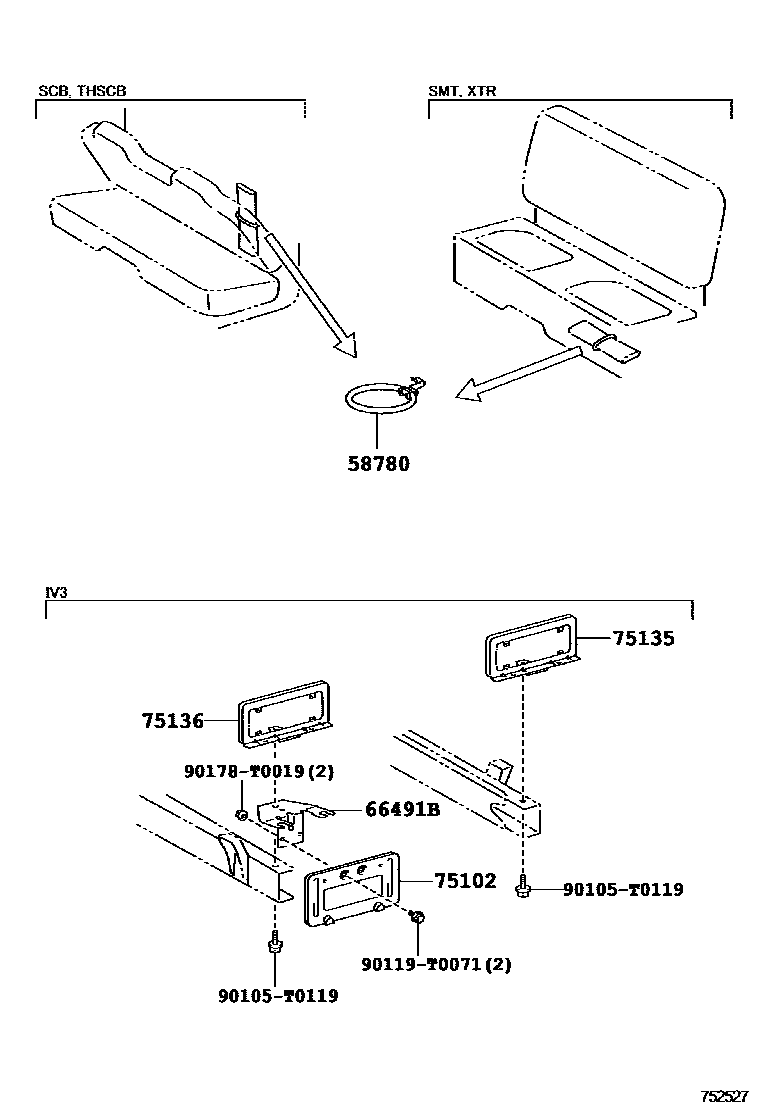

Toyota HILUX — TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-0K060i201107-201609

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412i201107-201609

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-25020i201107-201609

75135BRACKET, COMBINATION REAR LAMP, RH

main75103-95411i201107-201609

75136BRACKET, COMBINATION REAR LAMP, LH

main75103-95411i201107-201609

90105T0119

main90105-T0119

90119T0071

main90119-T0071

90178T0019

main90178-T0019

8 parts on this diagram · 1 diagram in section

TOOL BOX & LICENSE PLATE BRACKET for Toyota HILUX

This section contains 8 genuine Toyota parts for the TOOL BOX & LICENSE PLATE BRACKET system of the Toyota HILUX. Key components include: BAND ASSY, TOOL BOX, HANGER, LICENSE PLATE BRACKET, BRACKET SUB-ASSY, REAR LICENSE PLATE, BRACKET, COMBINATION REAR LAMP, RH, BRACKET, COMBINATION REAR LAMP, LH.
