83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010supersedes 83530-60010iGUN125,126..GHA202006-202111

DENSO

main83530-28020iGGN125,TGN11#,120,121,126,136..PS,SD,SS,TD,TS202006-202201

DENSO

main83530-60010iGUN125,126..GHA202006-202111

YAZAKI

main83530-60020iGGN125,TGN11#,120,121,126,136..PS,SD,SS,TD,TS202006-202201

YAZAKI

main83530-60030iLAN125202009-202109

DENSO

89465SENSOR, OXYGEN

main89465-0K180iGGN125202006-202110

main89465-0K190iTGN11#,120,121,136..PS,SD,SS,TD,TS202006-202201

main89465-0K200iTGN126,128202006-202110

89465ASENSOR, OXYGEN NO.2

main89465-0K170iGGN125202006-202110

89467BSENSOR, AIR FUEL RATIO

main89467-71110×2iGGN125202006-202110

main89467-71120iGUN126..ARL;GUN126..H..BZAG;GUN125..6FC..L..GEN;GUN126..6F..S..BZAG;GUN125,13#..ARL,BZAG202006-202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

main89467-71130iTGN11#,120,121,126,136..PS,SD,SS,TD,TS202006-202201

89615SENSOR, KNOCK CONTROL

main89615-20090iTGN126,128,13#..AD,AS202006-202110

8271571180BRACKET,WIRING HARNESS CLAMP

main82715-71180

8271571210BRACKET,WIRING HARNESS CLAMP

main82715-71210

90119T0134

main90119-T0134

9155180830

main91551-80830

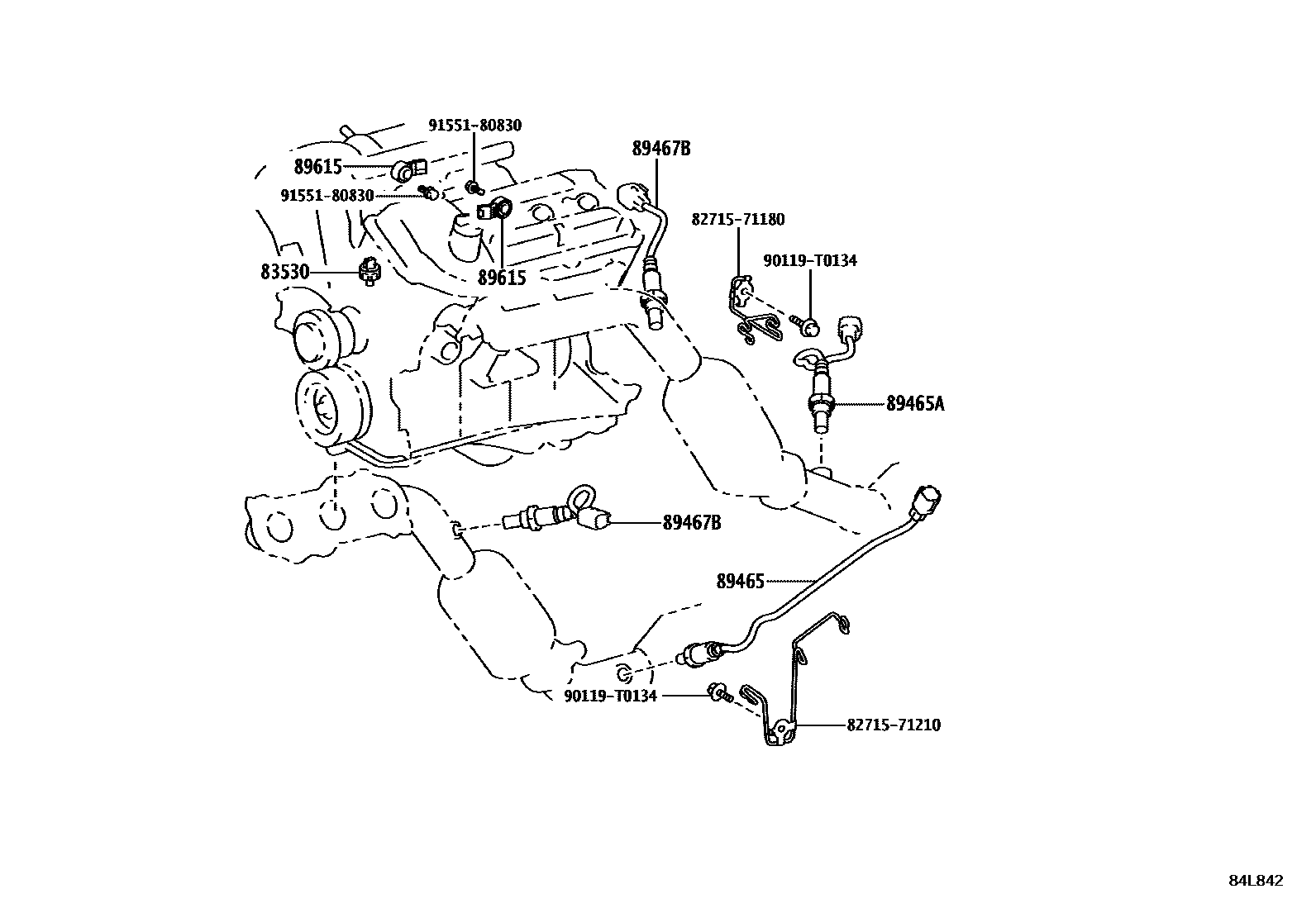

9 parts on this diagram · 20 diagrams in section
