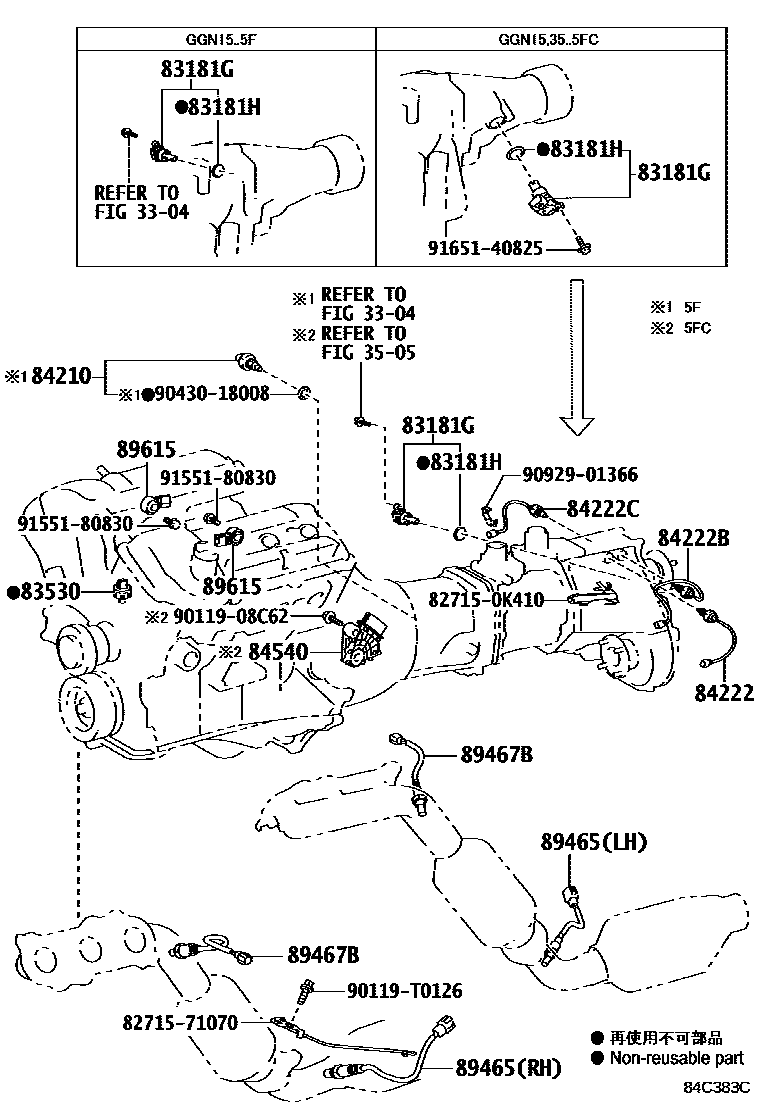

83181GSENSOR, SPEEDOMETER

main83181-12020iGGN25,KUN26;KUN16,3#,TGN16,36..5F;GGN15,KUN15,25,LAN25,TGN11,26..(4FC,5F)..(DEFI,HDCR,HTWC,HTWCF)201107

main83181-35041iKUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC201107-201609

main83181-35070iGGN15,35,KUN16,3#,TGN16,36..4FC,5FC201107

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iGGN15,35,KUN16,3#,TGN16,36..4FC,5FC201107

main90301-18018iKUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC201107-201609

main96711-24030iKUN25..PKN201107-201609

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iKUN2#..MA201107-201601

DENSO

main83530-28020iGGN15,25,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH201107

DENSO

main83530-60010iKUN26..4FC..LA;KUN2#,3#..(5F,5FC)..(CO,LA)201107-201510

YAZAKI

main83530-60020iTGN26,36..CO,LA201107-201510

YAZAKI

main83530-60030iLAN15,25,35201108-201512

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iKUN15..HDCR..SA;KUN15,TGN15..GCC,GEN,PHL,PKN,TH;GGN15,25,KUN10,16,2#,3#,TGN10..5F..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

TYPE D:REFER 33-01

main84210-0K010iKUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201601

TYPE C:REFER 33-01

main84210-12040iGGN15,25..5F201107-201206

TYPE B:REFER 33-01

main84210-52050iKUN16,26,36..5F..TH;KUN15,25,35..5F..HDCR..TH201107-201504

TYPE A,B:SEE 33-01

main84210-71010iTGN26..SCB..ANCOM201107-201504

main84210-71020iTGN11,16,36..5F201107-201512

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35080iLAN25..DCB;KUN25..SCB..GEN;LAN25..LHD..SCB;TGN26..5F..DLX..HTWC..(GCC,GEN,LA);KUN2#..(DCB,THDCB,XTR)..5F..DLX..(CO,GCC,GEN,PKN)201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35090iGGN25,KUN2#,TGN26..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35110iLAN25..DCB;LAN25..LHD..SCB;GGN25,KUN2#,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

84540SWITCH ASSY, NEUTRAL START

main84540-04010iKUN25..4FC..PKN201309-201609

(L)

main84540-35050iTGN16,26,36..4FC201107

main84540-71010iKUN25..4FC..PKN201309-201609

(J)

89465SENSOR, OXYGEN

main89465-0K010iTGN26..SR..GEN;TGN26..4FC..GEN;TGN1#,36..GCC,IDN,SA;TGN26..SCB..(GCC,GEN);TGN16,36..DCB..(ANCOM,GEN);TGN26..DCB..(ANCOM,CO,GCC,SA)201107

main89465-0K070iGGN25,35..ANCOM,SA201108

RH

main89465-0K080iGGN25,35..ANCOM,SA201108

LH

main89465-0K100iTGN16..RHD;TGN36..GEN,LA;TGN16..SCB..GEN201107-201510

main89465-0K110iGGN15,25..5F201107-201311

LH

main89465-0K130iGGN15,25..5FC..ARL201107-201504

LH

main89465-0K140iGGN15,25..5FC..ARL201107-201504

RH

main89465-0K150iTGN26..LA;TGN26..THDCB..DLX201107-201510

89467BSENSOR, AIR FUEL RATIO

main89467-35110×2iGGN15,25,35201107-202202

main89467-71070iTGN16..SCB..GEN;TGN26..THDCB..DLX;TGN36..HTWC..(GEN,LA);TGN16,26..(CNG,HTWC)..(ARL,LA,TH)201107-201510

main89467-71080iTGN26,36..HTWCF201110-201510

main89467-71090iKUN35..DCB..DLX..GEN201308-201504

main89467-71100iKUN2#..THDCB..5F201107-201504

CHILE SPEC(EURO 5 REGULATION)

89615SENSOR, KNOCK CONTROL

main89615-20090iGGN15,25..ANCOM,ARL201107

827150K410BRACKET,WIRING HARNESS CLAMP

main82715-0K410

8271571070BRACKET,WIRING HARNESS CLAMP

main82715-71070

9011908C62

main90119-08C62

90119T0126

main90119-T0126

9043018008

main90430-18008

9092901366

main90929-01366

9155180830

main91551-80830

9165140825

main91651-40825

21 parts on this diagram · 14 diagrams in section
