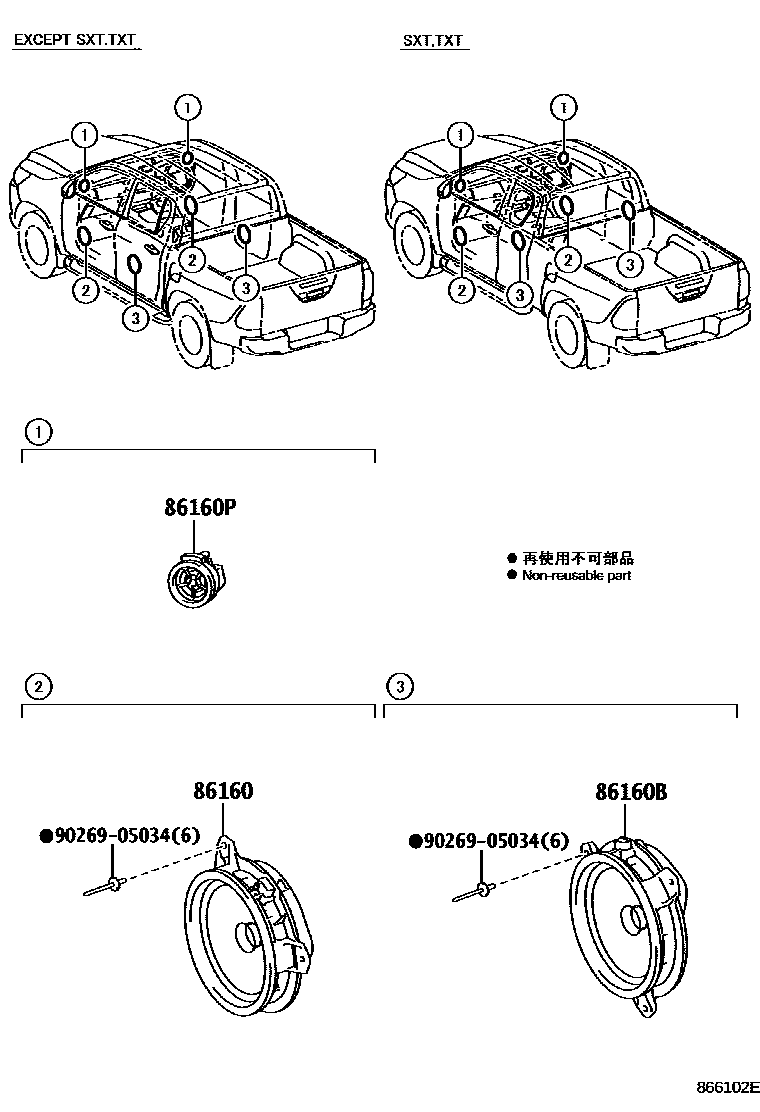

Toyota HILUX — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-0K430×2iTGN136..ADC,ASC,SDC,TDC,TSC;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138..ADC,ASC,KDC,KSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC201508-202105
86160BSPEAKER ASSY, REAR
main86160-0K420×2iGUN122,125,KUN122,125,TGN12#..TDC..L..GCC; KUN122,125,TGN121,126..TDC..(M,S)..GCC; KUN122..RHD..TDC..L; KUN122..RHD..TDC..L;GUN122,125,KUN122,125,TGN121,126..TDC..(M,S)..GCC; KUN125..M..GCC;GUN122..TDC..(PH,TH);KUN122,TGN121,126..TDC..L..GEN;GUN125,TGN121..TDC..(M,S,X)..(GCC,GEN,LA,TH);GUN122,KUN122,TGN126..TDC..(H,M,S,X)..(GCC,GEN,LA);GGN12#,GUN123,126,13#,KUN125,126,13#,TGN136..TDC..(ARL,GEN,IDN,LA,PH,TH,VN)201505-201508
AUDIO-AM/FM & CD & *BT & 4SPEAKER; AUDIO-WITHOUT & WITH(AUDIO LESS COVER); SPEAKER-2SPEAKER; SPEAKER-4SPEAKER
main86160-0K430×2iTGN126..S..SA;GUN126..(H,M)..PKN;GUN122,125..TDC..(M,S)..GCC;GUN125,135..LHD..(ADC,TDC)..X;GUN135..(ADC,SDC,TDC)..(H,L,M,S);KUN125..(SDC,TDC)..(M,S)..(GCC,SA);KUN122,126,TGN121,126..TDC..L..GEN;KUN126..(ADC,PDC,SDC,SXT,TDC)..(H,M,S,X);GUN122,KUN125..(ADC,TDC)..(GEN,IDN,LA,PH,TH);KUN122,TGN121,126..(ADC,TDC)..(H,M,S,X)..(BZAGT,GCC,GEN,LA,TH);GGN12#,135,GUN120,123,126,136,KUN13#,TGN128,13#..ADC,KDC,SDC,SXT,TDC;GUN125,LAN125..(ADC,SDC,TDC)..(H,L,M,S)..(BZAGT,GEN,IDN,LA,SA,TH,VN)201508-202105
86160PSPEAKER ASSY, FRONT NO.2
main86150-0K260×2iGUN126..TDC..ARL;GUN126,KUN126..H..PKN;GUN126..S..HDCR..BZAGT;GUN136..(ADC,TDC)..S..HDCR;GUN125,135..(M,S)..(BZAGT,IDN);GUN126,KUN126..RHD..ATM..M..GEN;GUN136,TGN126..(H,M)..(ARL,BZAGT,GEN,SA,TH);GUN122,125,126,135,KUN125,126,TGN13#..(H,M)..(BZAGT,KEN,PH,SA,TAIW,TH,VN);GGN12#,135,KUN125,TGN128..(H,M,S)..(HDCR,HTWC,HTWCF)..(ARL,BZAGT,IDN,LA,SA)201505-202105
9026905034
main90269-05034
4 parts on this diagram · 1 diagram in section
SPEAKER for Toyota HILUX
This section contains 4 genuine Toyota parts for the SPEAKER system of the Toyota HILUX. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
