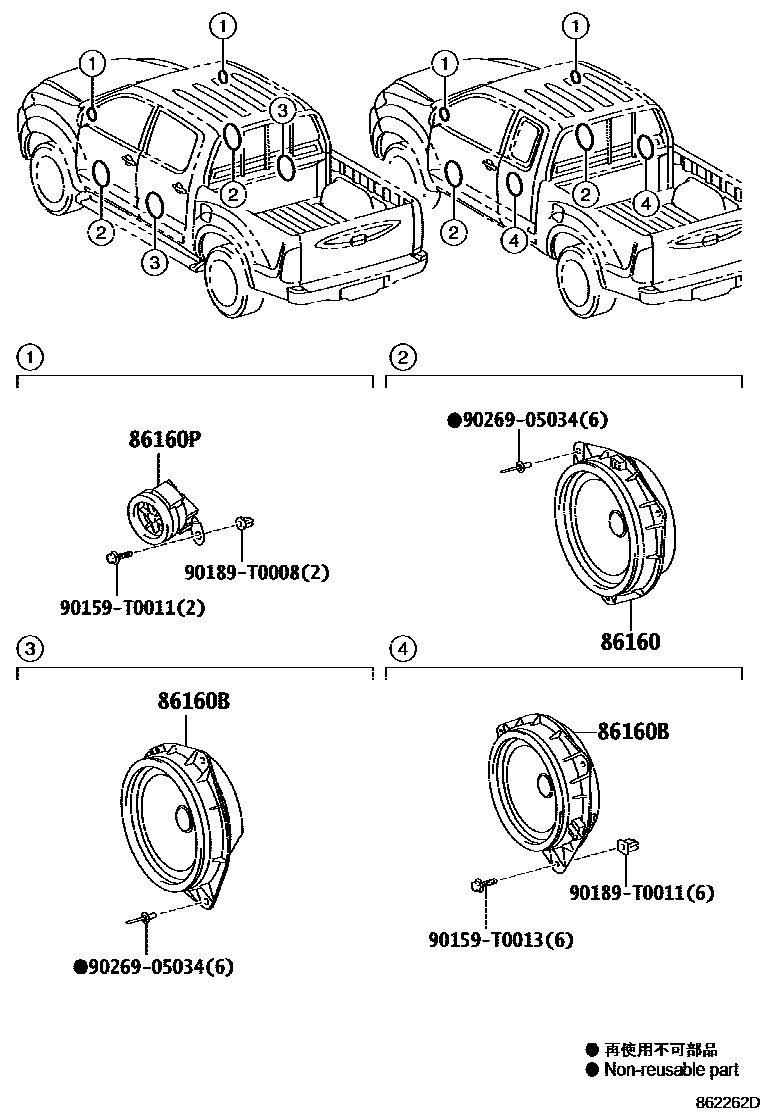

Toyota HILUX — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-0K010×2iTGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,SA,TH)200408-200810
86160BSPEAKER ASSY, REAR
main86160-0K010×2iKUN2#,TGN26..THDCB..DLX;KUN25..RHD..DCB..(SA,TH);KUN16,35..(DCB,THDCB)..(GEN,TH);GGN15,25,KUN15,26,36,TGN26,36..(DCB,THDCB)..SR..(ARL,GEN,PHL,SA,TH)200408-200810
main86160-0K220×2iGGN15,25,KUN16,26,TGN16..DCB..DLX..ARL; KUN15,25,TGN15,16,26..DCB..(GCC,GEN); KUN26..IDN;GGN15,KUN16..DCB..5F..SR; TGN16..DCB..GEN201106-201107
AUDIO-AM/FM CASSETTE 4SPEAKER; AUDIO-AM/FM CASSETTE CD 4SPEAKER; AUDIO-AM/FM CD 4SPEAKER
86160PSPEAKER ASSY, FRONT NO.2
main86150-0K010iGGN15,25,KUN26..SR..ARL; KUN15..DCB..HDCR; KUN16..DCB..TH;KUN26..4FC..(PHL,TH);KUN26,35..5F..SR..PHL; KUN26..DCB..GEN; KUN35..DCB..TH;KUN26..DCB..4FC..GEN;KUN15,26,36,TGN16..DCB..5F..SR..(GEN,IDN,TH)201102-201107
AUDIO-AM/FM CASSETTE CD 6SPEAKER,RH; AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,RH; AUDIO-AM/FM CD 6SPEAKER,RH; AUDIO-RADIO LESS 6SPEAKER,RH; RH
main86150-0K020iGGN15,25,KUN26..SR..ARL; KUN15..DCB..HDCR; KUN16..DCB..TH;KUN26..4FC..(PHL,TH);KUN26,35..5F..SR..PHL; KUN26..DCB..GEN; KUN35..DCB..TH;KUN26..DCB..4FC..GEN;KUN15,26,36,TGN16..DCB..5F..SR..(GEN,IDN,TH)201102-201107
AUDIO-AM/FM CASSETTE CD 6SPEAKER,LH; AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,LH; AUDIO-AM/FM CD 6SPEAKER,LH; AUDIO-RADIO LESS 6SPEAKER,LH; LH
RH
LH
main86160-0K020iGGN15,25,KUN26..SR..ARL; KUN15..DCB..HDCR; KUN16..DCB..TH;KUN26..4FC..(PHL,TH);KUN26,35..5F..SR..PHL; KUN35..DCB..TH;KUN26..DCB..4FC..GEN;KUN15,26,36,TGN16..DCB..5F..SR..(GEN,IDN,TH)200808-201102
AUDIO-AM/FM CASSETTE CD 6SPEAKER,RH; AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,RH; AUDIO-AM/FM CD 6SPEAKER,RH; RH
main86160-0K030iGGN15,25,KUN26..SR..ARL; KUN15..DCB..HDCR; KUN16..DCB..TH;KUN26..4FC..(PHL,TH);KUN26,35..5F..SR..PHL; KUN35..DCB..TH;KUN26..DCB..4FC..GEN;KUN15,26,36,TGN16..DCB..5F..SR..(GEN,IDN,TH)200808-201102
AUDIO-AM/FM CASSETTE CD 6SPEAKER,LH; AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,LH; AUDIO-AM/FM CD 6SPEAKER,LH; LH
RH
LH
90159T0011
main90159-T0011
90159T0013
main90159-T0013
90189T0008
main90189-T0008
90189T0011
main90189-T0011
9026905034
main90269-05034
8 parts on this diagram · 1 diagram in section
SPEAKER for Toyota HILUX
This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota HILUX. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
