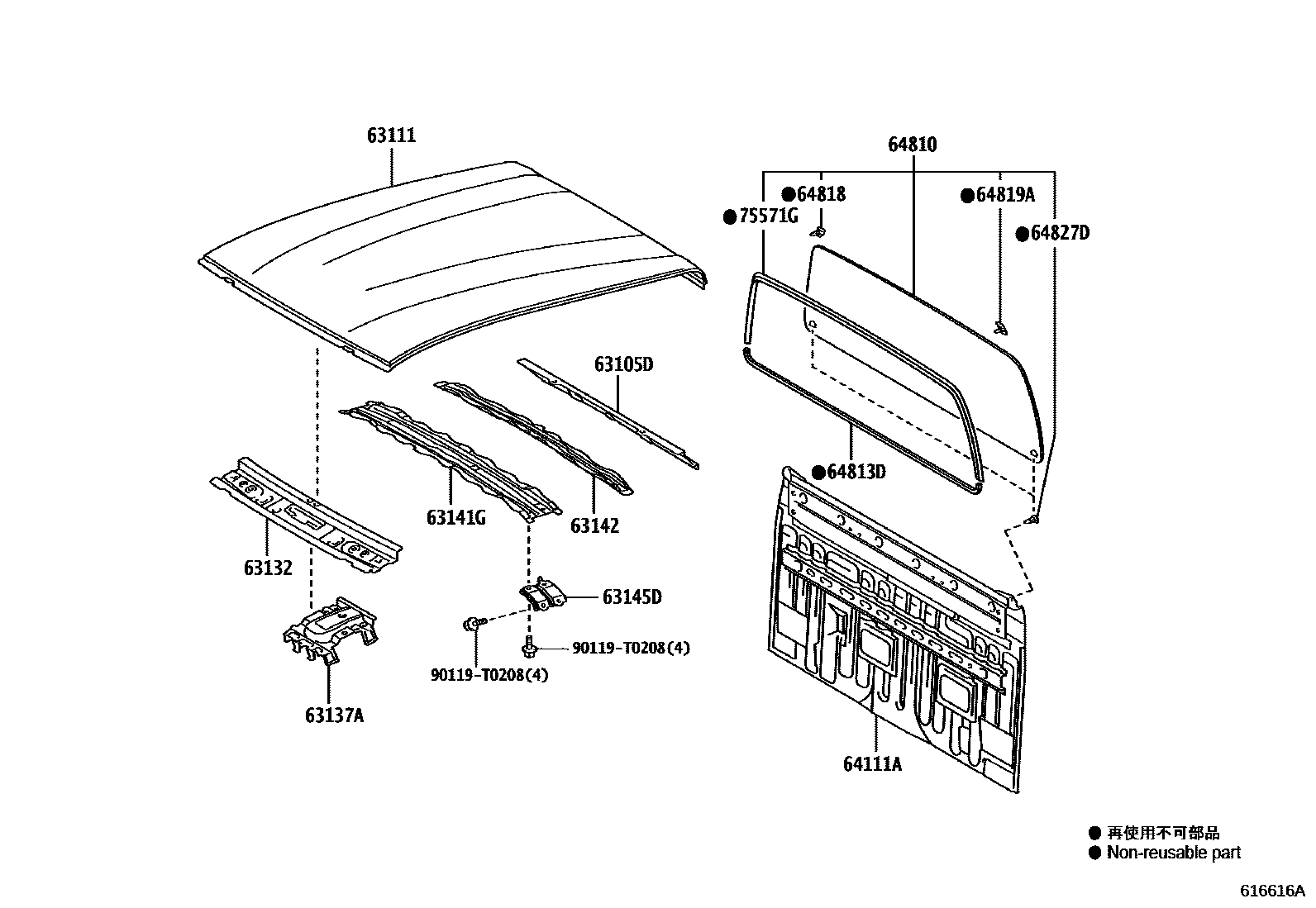

Toyota HILUX — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK040iGUN125,126,135,TGN126,136..AS202006-202110

main63105-KK070iGUN122,126,TGN121..PS202106-202201

main63135-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN12#,136..MD,SD,SX,TD,TX202006-202010

main63135-KK050iGUN126..PD202010-202201

63111PANEL, ROOF

main63111-KK010iGUN126..PD202006-202201

main63111-KK020iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,PS,SS,TS202006-202201

main63111-KK030iGUN120,122,125,126,13#..SX,TX202006-202109

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK900iGUN125,126..GHA202006-202111

sub63132-KK021

main63132-KK902iGUN126..PKN;GUN122,125,TGN121..MA,PKN202009-202201

sub63132-KK031

63137ABRACKET, DOME LAMP, NO.1

main63137-KK010iGUN125,126..GHA202006-202111

main63137-KK020iGUN125,126,135,TGN126,136..AS202006-202110

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-KK020iGUN126..PD202006-202201

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

main63142-KK030iGUN120,122,125,126,13#..SX,TX202006-202109

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK010×2iGGN125,GUN120,122,125,126,13#,LAN125,TGN12#,136..MD,SD,SX,TD,TX202006-202010

main63145-KK030×2iGUN125,126..GHA202010-202111

64111APANEL, BACK

main64101-KK010supersedes 64101-KK050iGUN126..GHA;GUN125..H..SA;GUN125..GD,KD;GGN125,GUN125,126,13#,TGN136..RHD..(KD,SD)..(H,S)202009-202111

main64101-KK020iGUN125..TD..GCC;TGN121..LHD..TD;TGN126..5F..S..SA;GUN125..LHD..SD..S;GUN125..LHD..L..GEN;GUN126..RHD..6FC..GEN;GUN126..RHD..6F..S..GEN;TGN126..TD..5F..(GCC,GEN);GUN202006-202109

REAR HEADREST-WITH(RH/LH)

main64101-KK030iGUN122..LHD..TS;GUN125,135..SS..S;GUN122..RHD..(SS,TS);GUN125,135,TGN121..AS,TS;GUN112,120,123,126,136,TGN11#,120,126,136..AS,SS,TS202006-202110

main64101-KK060iGUN126..PD..(L,S);LAN125,TGN126..SD..L202009-202201

main64101-KK070iGUN122..LHD..SS;GUN135..(KS,SS)..L;GUN122,125..KS,MS,PS;GUN125,126,LAN125,TGN121..(PS,SS)..L202009-202201

main64101-KK081iGUN125..TX..GEN202006-202108

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

main64101-KK090iGUN126..6F..H..GEN;GUN125..TD..L..(ARL,LA,PH);GUN125..LHD..TD..(H,S)..GEN;GUN126,135..LHD..S..(GEN,VN);GUN125..(MD,TD)..(H,S)..(LA,MA,TH,VN);GUN125,TGN126..TD..6FC.202006-202301

main64101-KK101iGUN120,122,125,126,135..TX..(GEN,TH)202006-202108

main64101-KK120iGUN125,126,13#..SX202009-202109

main64101-KK130iGUN125..MD..L;GUN126..H..PKN202010-202201

main64101-KK140supersedes 64101-KK140iTGN136..AD..L;GGN125,GUN125,126,13#,TGN126,128,138..AD202011-202110

main64101-KK040iGUN125..SX..S202009-202109

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

64810WINDOW ASSY, BACK

main64801-0K111iGUN125..TX..GEN;TGN126..TD..L..LA;GUN125..LHD..TD..H..GEN;GUN126..LHD..6FC..S..GEN;GUN135,TGN121..L..(ARL,VN);GUN125..RHD..TD..(H,S)..GEN;GUN122,126..MTM..S..(GEN,T202006-202301

main64801-0K121iGUN125..LHD..TD..S..GEN;GUN122,125..TD..(IDN,PH);GUN122..(PH,PKN,TH)..IV3;GUN126..RHD..6FC..S..GEN;GUN135,TGN126..L..(GEN,TH);GUN122..TS..L..(GEN,TH)..CBU;GUN122,12202006-202201

main64801-0K131iGUN126..LHD..6FC..H..GEN202006-202108

BACK GLASS-FIX TYPE(PRIVACY)

sub64801-0K132

main64801-0K140iTGN126..L..SA;GUN122,125..LHD..SS..L202009-202109

REAR WINDOW DEFOGGER-WITH

sub64801-0K141

main64801-0K150iGUN125..S..GHA;GUN126,135..GD,KS;LAN125,TGN126..L..SA;GUN122,125..LHD..(GD,SS)..L202009-202111

sub64801-0K151

main64801-0K170iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

sub64801-0K171

main64801-0K180iGUN125,126,135,TGN126,136..AS202011-202110

sub64801-0K181

main64801-0K190iGUN125,126..MD202009-202110

sub64801-0K191

main64801-0K200iGUN125..MS202009-202110

sub64801-0K201

main64810-0K041iGUN122..GCC..IV3;GUN122..(GCC,PKN)..CBU;GGN125,GUN112,125,126,TGN11#,120,121,126..GCC,PKN202006-202201

main64810-0K050iGUN125..KEN;GGN125,GUN125,126,13#,TGN136..RHD..(KD,SD,SS,SX)..(H,S)202009-202111

main64810-0K060iGGN125,GUN125,126,13#,TGN136..RHD..(H,S)..SA202009-202109

BACK GLASS-SLIDING TYPE(PRIVACY)

main64810-0K090iGGN125,GUN122,125,126,TGN121,126..H..GCC202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-KK040iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

64818SPACER, BACK WINDOW GLASS

main64818-0K090iGUN122..PKN..IV3202006-202201

main64818-0K100iGUN135..L..(KEN,SA);GUN126..LHD..(GHA,SA);GUN125..(H,L)..(GHA,SA);GUN125,TGN136..LHD..S..(GHA,SA);GUN122,LAN125,TGN120,121,126..SA202009-202111

main64818-0K110iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main64818-0K190iGUN125,126..MA202009-202110

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-0K110iGUN112,12#,13#,TGN110,121,126,136..(MMD,TD,TS,TX)..(ARL,GEN,IDN,LA,MMR,PH,TH,TWN,VN)202006-202301

main64819-0K120iGUN135..L..(KEN,SA);GUN126..LHD..(GHA,SA);GUN125..(H,L)..(GHA,SA);GUN125,TGN136..LHD..S..(GHA,SA);GUN122,LAN125,TGN120,121,126..SA202009-202111

main64819-0K130iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main64819-0K190iGUN125,126..MA202009-202110

64827DCLIP, BACK WINDOW GLASS

main64827-0K110×2iGUN112,12#,13#,TGN110,121,126,136..(MMD,TD,TS,TX)..(ARL,GEN,IDN,LA,MMR,PH,TH,TWN,VN)202006-202301

main64827-0K120×2iGUN135..L..(KEN,SA);GUN126..LHD..(GHA,SA);GUN125..(H,L)..(GHA,SA);GUN125,TGN136..LHD..S..(GHA,SA);GUN122,LAN125,TGN120,121,126..SA202009-202111

main64827-0K130×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main64827-0K160×2iGUN125,126..MA202009-202110

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-0K080iGUN122..PKN..IV3202006-202201

90119T0208

main90119-T0208

15 parts on this diagram · 3 diagrams in section
