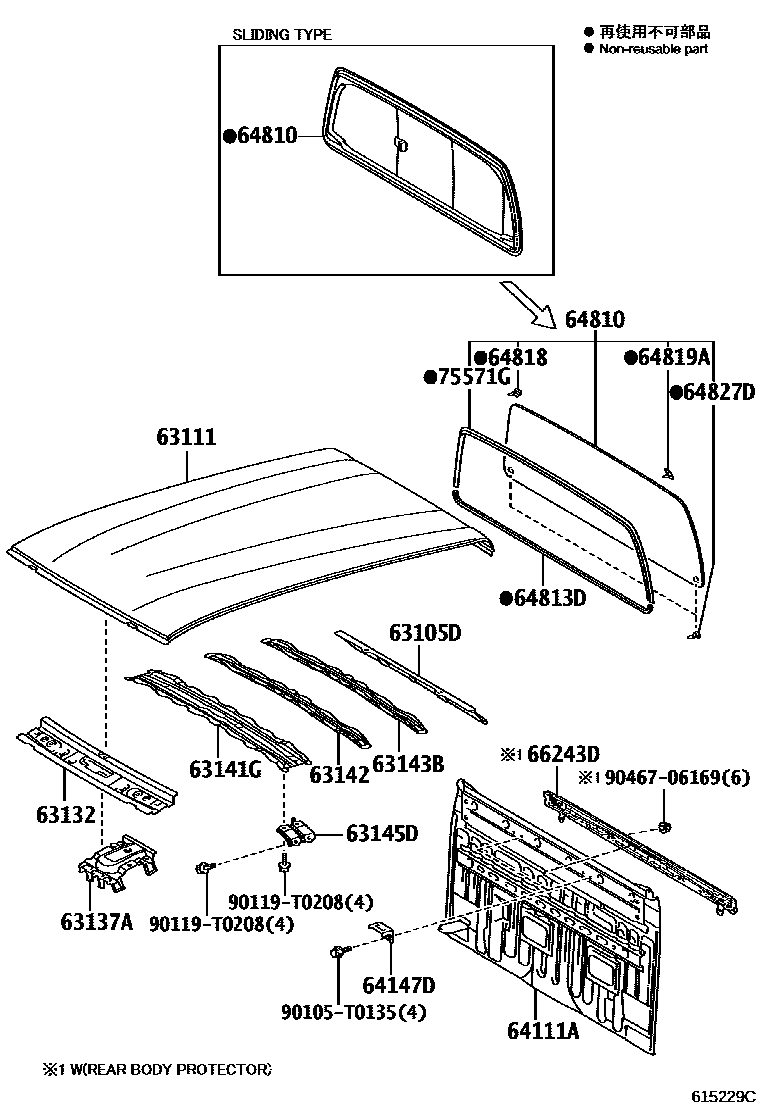

Toyota HILUX — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK040iTGN136..ASC,TSC;GUN122..(PSC,SSC,TSC)..5F;GUN112,123,125,126,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105

sub63105-KK070

main63135-KK010iGUN120,122..(TDC,TXT)..(6F,6FC)201809-202005

main63135-KK050iGUN125,126..MDC,PDC202010-202105

63111PANEL, ROOF

main63111-KK010iGUN120,122..TDC..(6F,6FC)201809-202005

main63111-KK020iTGN136..SSC201505-201807

main63111-KK030iGUN122..TXT..5F;GUN123,125,126,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK900iTGN136..X..BZAGT;TGN126..(ADC,ASC)..LA;TGN136..ADC..(S,X)..LA;GUN126..6FC..(M,S)..IART;GUN126..(ADC,ASC)..(H,L,X);GUN125,13#..(ADC,ASC)..HDCR..CBU;GUN126,TGN128,138201505-201808

sub63132-KK021

main63132-KK901iGGN125,GUN125,126,13#,TGN126,128,13#..ADC,ASC201808-202010

main63132-KK902iGUN126..MA;GUN122,125,135..MA,PKN201809-202105

sub63132-KK031

63137ABRACKET, DOME LAMP, NO.1

main63137-KK010supersedes 63137-KK020iTGN136..SSC201505-201807

main63137-KK020iGUN125..TSC..S;GUN122..TSC..S..DCR..GEN;GUN122..LHD..(SSC,TSC)..(S,X)..(GCC,SA);GUN122..(PSC,TSC)..(L,X)..(GCC,GEN,PH,PKN);KUN122,TGN121..(PSC,SSC,TSC)..(L,S,X)..(G201505-202105

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-KK020iGUN120,122..(TDC,TXT)..(6F,6FC)201809-202005

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-KK010iGUN120,122..TDC..(6F,6FC)201809-202005

main63142-KK030iGUN122..TXT..5F;GUN123,125,126,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK010×2iGUN122..(SDC,TDC,TXT)..5F;GUN135,KUN126..ADC,MDC,PDC,SDC,SXT,TDC,TXT;GGN12#,135,GUN123,125,126,136,KUN122,125,13#,LAN125,TGN12#,13#..ADC,KDC,SDC,SXT,TDC,TXT201505-202102

main63145-KK030×2iGUN125,126..MDC,PDC202010-202105

64111APANEL, BACK

main64101-KK010supersedes 64101-KK050iGUN122,125,TGN121..SDC..X201505-201808

main64101-KK020iGUN125..VN;LAN125,TGN126..SDC..X;KUN122..RHD..TDC..(L,X);KUN122..LHD..TDC..(M,S,X)201505-201806

main64101-KK030iGUN126,KUN122..PSC201505-201902

main64101-KK040iGUN126..M..TH;GUN126..TXT..6F..IV3;GUN122,123,125,13#,TGN121..TXT..CBU;GUN125,126,KUN122..TXT..(5F,6FC)..(M,S,X)201506-201806

main64101-KK060iKUN122..TDC;GUN125..M..VN;LAN125,TGN126..SDC..X201806-202105

main64101-KK070iGUN125..MSC201809-202105

main64101-KK080iGUN125..TXT..S..GEN201806-202005

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

sub64101-KK081

main64101-KK090iGUN135..RHD..TDC..L;GUN125..TDC..(LA,TH);GUN126..RHD..6F..H..GEN;GUN135..RHD..(MDC,TDC)..6FC;GUN122,126,TGN121,126..TDC..(ARL,LA,TAIW,TH);GUN135..(MDC,TDC)..6F..(M,201708-202012

main64101-KK100iGUN122..TXT..5F;GUN125..TXT..GEN;GUN125..RHD..(SXT,TXT)..CBU;GUN126,13#,KUN122,TGN121..TXT..(GEN,TH)201806-202009

sub64101-KK101

main64101-KK120iGUN125..SXT..X201808-202009

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main64101-KK130iGUN126..H..PKN201812

main64101-KK140iGGN125,GUN125..ADC..6FC201808-202010

64147DPLATE, BACK PANEL CORNER, UPPER

main64147-KK010×2iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

64810WINDOW ASSY, BACK

main64801-0K110iGUN125..ARL,TH;KUN125..TXT..GEN;KUN125..RHD..TDC..GEN;TGN121..TDC..(GEN,TH);GUN125,KUN125..TDC..LA;GUN125..6F..(L,M)..GEN;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..201505-201705

REAR WINDOW DEFOGGER-WITH

main64801-0K111iGUN126..S..GCC;GUN135..L..GEN;GUN122..5F..TH..IV3;KUN122..RHD..X..GEN;GUN125,KUN125..LHD..TDC..S..GEN;GUN122,125..RHD..(5F,6FC)..(L,X)..GEN201706-202005

REAR WINDOW DEFOGGER-WITH

main64801-0K120iKUN125..TSC..LA;KUN122..PKN..IV3;GUN135..L..(GEN,TH);KUN125..RHD..(TSC,TXT);KUN122..TDC..(L,S)..GEN;TGN121..(TSC,TXT)..(GEN,TH);GUN125,KUN125..LHD..TDC..(S,X)..GEN;201505-201705

REAR WINDOW DEFOGGER-WITHOUT

main64801-0K121iGUN135..L..(GEN,TH);GUN125,KUN125..TDC..IDN;KUN122..TDC..(L,S)..GEN;GUN122..RHD..X..(GEN,TH);GUN125..TDC..6FC..L..GEN;TGN121..(TSC,TXT)..(GEN,TH);GUN125..LHD..TDC..201706-202105

main64801-0K130iGGN125,GUN126,136..M..ARL201505-201702

main64801-0K131iGGN125,GUN126,136..M..(ARL,TAIW)201703-202005

sub64801-0K132

main64801-0K140iGUN125..LHD..SSC..X;KUN122,125,TGN126..LHD..X..SA201601-202009

REAR WINDOW DEFOGGER-WITH

sub64801-0K141

main64801-0K150iGUN135..KEN;GUN125..LHD..SSC..X;KUN122,125,LAN125,TGN126..LHD..X..SA201601-202102

sub64801-0K151

main64801-0K170iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

sub64801-0K171

main64801-0K180iGUN125,126,135,KUN125,135,TGN126,136..ASC201511-202010

sub64801-0K181

main64801-0K190iGUN125,126,135..MDC201604-202012

sub64801-0K191

main64801-0K200iGUN125..MSC201604-202012

sub64801-0K201

main64810-0K040iTGN121..L..GEN;KUN122,125..TXT..L..GEN;KUN122,TGN136..LHD..TDC..X..GEN;GUN125,KUN125,126..RHD..TDC..(5FC,6F)..L..GEN201505-201705

BACK GLASS-SLIDING TYPE(GREEN)

main64810-0K041iKUN122..GCC..IV3;GUN122,KUN122..(GCC,PKN)..CBU;GGN125,GUN112,125,126,KUN112,125,126,TGN11#,120,121,126..GCC,PKN201706-202105

main64810-0K050iTGN136..SDC;GUN125..X..KEN;GGN125,135,GUN125,126,13#,KUN125,126,135..RHD..(M,S)..(KEN,SA)201601-202102

main64810-0K060supersedes 64810-0K050iTGN136..SSC201601-201807

BACK GLASS-SLIDING TYPE(PRIVACY)

main64810-0K090iGGN125,GUN122,125,126,TGN121,126..M..GCC201806-202005

SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-KK040iGUN126,KUN126..LHD..SA;GUN122,KUN122..PKN..IV3;GUN125,KUN125..LHD..(SDC,SSC)..S;GUN125,135,KUN125..(SDC,SSC)..(M,X);GUN122,KUN122,LAN125,TGN121,126..ARL,BZAGT,GEN,L201505-202105

64818SPACER, BACK WINDOW GLASS

main64818-0K090iGUN122,KUN122..PKN..IV3;GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN110,121,126,136..(TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,TAIW,TH,VN)201505-202105

main64818-0K100iGUN135..X..(KEN,SA);GUN126,KUN126..LHD..SA;GUN125,KUN125..(M,X)..SA;GUN125,KUN125..LHD..S..SA;GUN122,KUN122,LAN125,TGN120,121,126..SA201601-202102

main64818-0K110iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

main64818-0K190iGUN125,126,135..MA201604-202012

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-0K110iGUN122,KUN122..PKN..IV3;GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN110,121,126,136..(TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,TAIW,TH,VN)201505-202105

main64819-0K120iGUN135..X..(KEN,SA);GUN126,KUN126..LHD..SA;GUN125,KUN125..(M,X)..SA;GUN125,KUN125..LHD..S..SA;GUN122,KUN122,LAN125,TGN120,121,126..SA201601-202102

main64819-0K130iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

main64819-0K190iGUN125,126,135..MA201604-202012

64827DCLIP, BACK WINDOW GLASS

main64827-0K110×2iGUN122,KUN122..PKN..IV3;GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN110,121,126,136..(TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,TAIW,TH,VN)201505-202105

main64827-0K120×2iGUN135..X..(KEN,SA);GUN126,KUN126..LHD..SA;GUN125,KUN125..(M,X)..SA;GUN125,KUN125..LHD..S..SA;GUN122,KUN122,LAN125,TGN120,121,126..SA201601-202102

main64827-0K130×2iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

main64827-0K160×2iGUN125,126,135..MA201604-202012

66243DPROTECTOR, REAR BODY, NO.1

main66243-0K010iTGN126..ADC..LA;TGN136..ADC..(S,X);GUN126..ADC..(H,L,X);GUN126..6FC..(M,S)..IART;GUN126,TGN138..ADC..(M,S)..(HDCR,HTWCF);GGN125,GUN125,13#,TGN128..ADC..(HDCR,HTWC,H201804-202010

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-0K080iGUN126,KUN126..LHD..SA;GUN122,KUN122..PKN..IV3;GUN125,KUN125..LHD..(SDC,SSC)..S;GUN125,135,KUN125..(SDC,SSC)..(M,X);GUN122,KUN122,LAN125,TGN121,126..ARL,BZAGT,GEN,L201505-202105

90105T0135

main90105-T0135

90119T0208

main90119-T0208

9046706169

main90467-06169

20 parts on this diagram · 3 diagrams in section
