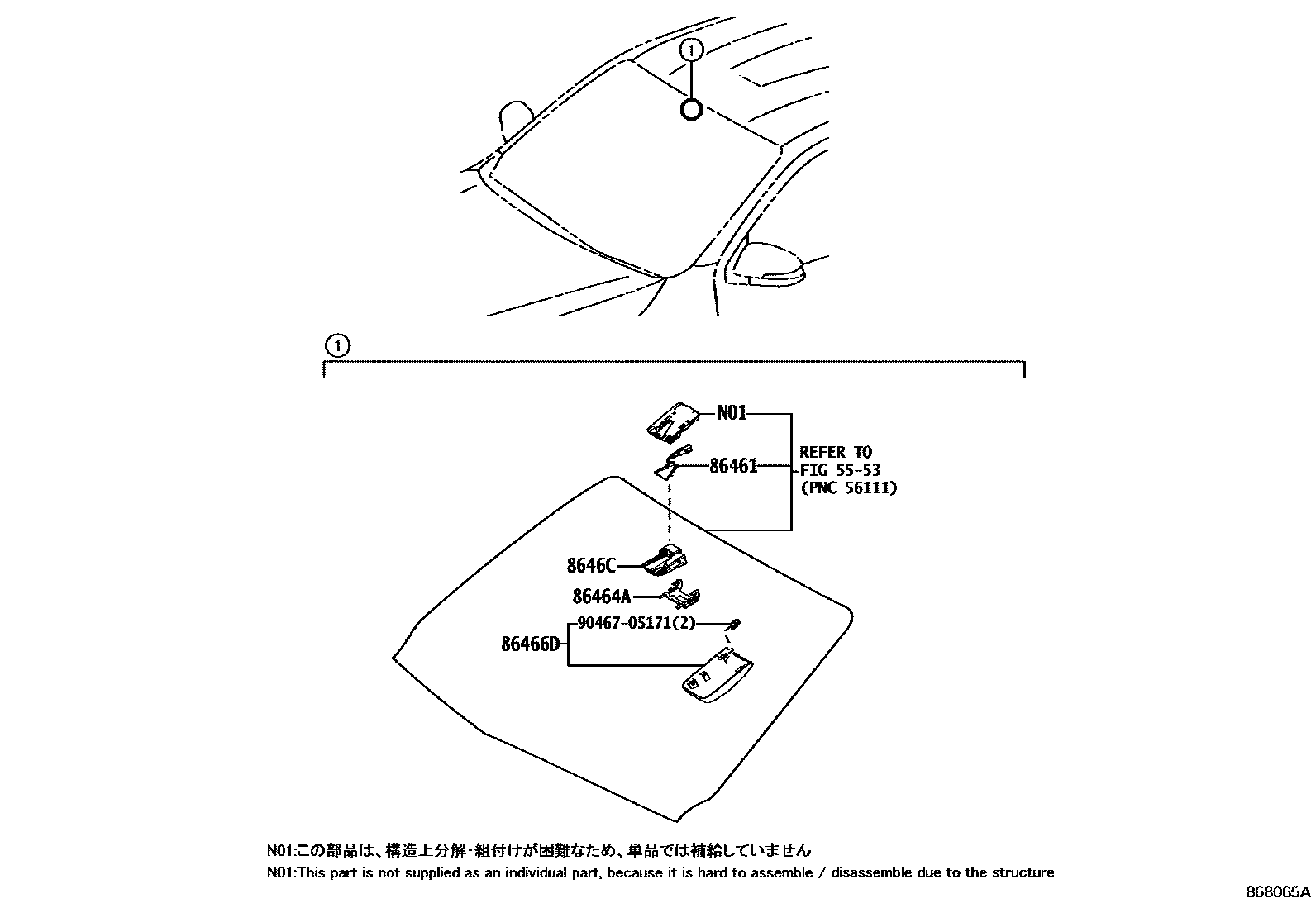

Toyota HILUX — PRE-COLLISION SYSTEM

5553

86461HOOD, FORWARD RECOGNITION

main86401-71010iGUN126..AD..H;GUN136..ARL,LA;GUN136..H..BZAG;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);GUN126..(MD,TD,TS,TX)..(ARL,LA,MA,TWN);GUN125,TGN121..(AS,TD,TS,TX).202006-202110

ACTIVE SAFETY PACKAGE-WITH

86464ALATCH, FORWARD RECOGNITION

main86464-26010iGUN126..AD..H;GUN136..ARL,LA;GUN136..H..BZAG;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);GUN126..(MD,TD,TS,TX)..(ARL,LA,MA,TWN);GUN125,TGN121..(AS,TD,TS,TX).202006-202110

ACTIVE SAFETY PACKAGE-WITH

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-71030iGUN126..AD..H;GUN136..ARL,LA;GUN136..H..BZAG;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);GUN126..(MD,TD,TS,TX)..(ARL,LA,MA,TWN);GUN125,TGN121..(AS,TD,TS,TX).202006-202110

ACTIVE SAFETY PACKAGE-WITH

8646CCAMERA, FORWARD RECOGNITION

main8646C-71011iGUN126..AD..H;GUN136..ARL,LA;GUN136..H..BZAG;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);GUN126..(MD,TD,TS,TX)..(ARL,LA,MA,TWN);GUN125,TGN121..(AS,TD,TS,TX).202006-202110

ACTIVE SAFETY PACKAGE-WITH

9046705171

main90467-05171

6 parts on this diagram · 1 diagram in section
