Toyota HILUX — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

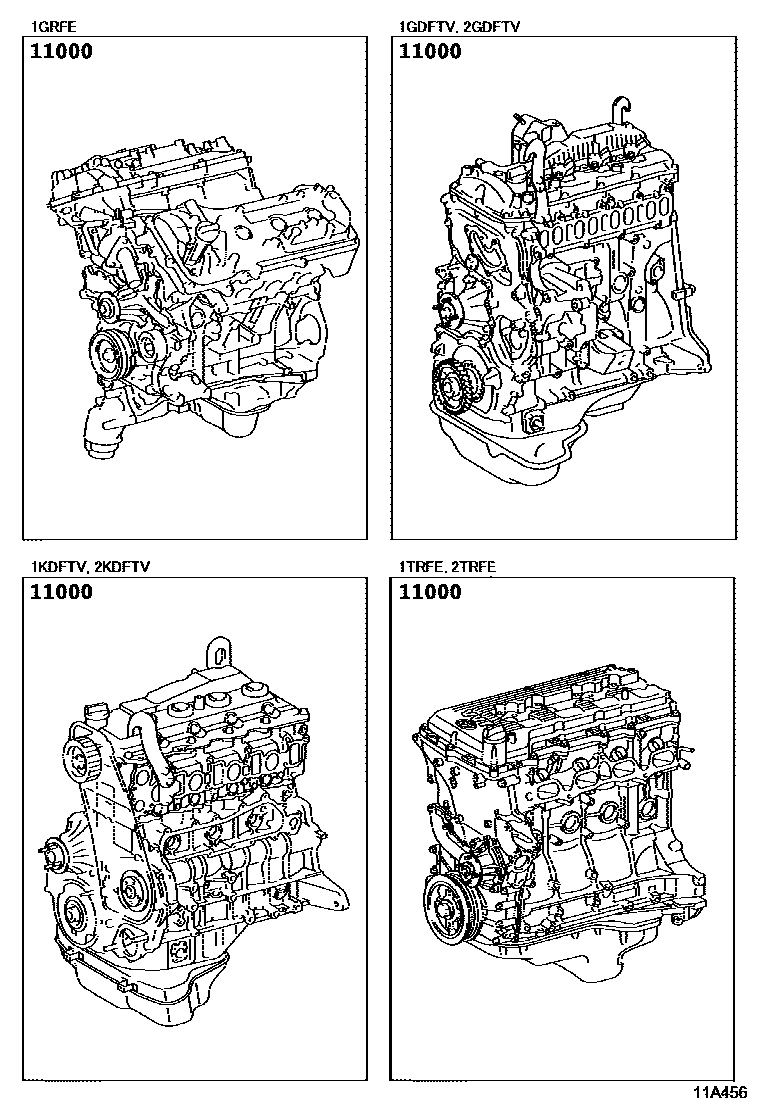

11000ENGINE ASSY, PARTIAL

main19000-0C240i1TRFE..TGN110,120..GCC201505-201507

main19000-0C250i2TRFE..TGN136..SDC,TXT;2TRFE..TGN136..(M,X)..LA;2TRFE..TGN126..6FC..L..GEN;2TRFE..TGN121,126..5F..(LA,SA,TH)201505-202010

main19000-0C260i2TRFE..TGN138..5F201710-202010

main19000-0C280supersedes 19000-0C250i2TRFE..TGN136..(ADC,TDC)..S;2TRFE..TGN126..M..(BZAGT,GEN);2TRFE..TGN121,136..5F..(ARL,BZAGT)201505-202010

main19000-0C290supersedes 19000-0C270i2TRFE..TGN121..6FC..ARL201512-202005

main19000-0C330i2TRFE..TGN121..6FC..ARL201505-201512

main19000-0C360i1TRFE..TGN110..IDN201505-202005

main19000-0C370supersedes 19000-0C370i2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..6FC..M..GCC201809-202005

SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main19000-0C420i2TRFE..TGN128,138..6FC201607-202010

main19000-0C430i2TRFE..TGN121..X..GEN201809-202005

MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0

main19000-0E010i1GDFTV..GUN123..ARL201505-201907

sub19000-0E220

main19000-0E020supersedes 19000-0E080i1GDFTV..GUN126..ADC..M..LA;1GDFTV..GUN126..ADC..6F..S..LA201710-201904

CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT

main19000-0E030i1GDFTV..GUN126,136..IART201511-202010

main19000-0E040supersedes 19000-0E090i2GDFTV..GUN125..RHD..TDC..6F..L..GEN201608-202005

main19000-0E050i2GDFTV..GUN125,135..TDC..LA201505-201708

CHILE SPEC

main19000-0E060supersedes 19000-0E060i1GDFTV..GUN136..M..TH;1GDFTV..GUN126..(ADC,TSC)..6F..(M,S)..(GCC,LA);1GDFTV..GUN126..(TDC,TSC,TXT)..6F..(LA,PH,TH,VN)201505-202010

main19000-0E070supersedes 19000-0E050i2GDFTV..GUN125,135..RHD..SA201505-201710

PERU SPEC

main19000-0E080supersedes 19000-0E080i1GDFTV..GUN126,136..SA201505-201710

main19000-0E090i2GDFTV..GUN125..6F..MA;2GDFTV..GUN135..6F..L..MA201709-201904

main19000-0E100supersedes 19000-0E200i2GDFTV..GUN125,135..TDC..LA201505-201708

ECUADOR SPEC

main19000-0E190supersedes 19000-0E100i2GDFTV..GUN135..SSC..6FC201904-201906

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main19000-0E200i2GDFTV..GUN122..RHD..SA201906-202105

main19000-0E210supersedes 19000-0E220i1GDFTV..GUN126..ADC..X;1GDFTV..GUN126..6FC..GEN;1GDFTV..GUN126..6FC..S..LA;1GDFTV..GUN126..TDC..6FC..X;1GDFTV..GUN126..6F..(M,S)..GEN;1GDFTV..GUN136..ARL,BZAGT,LA,S201904-202105

main19000-0E230i2GDFTV..GUN120,125,135..(TDC,TSC,TXT)..6FC..(GCC,LA,PH,TH,VN)201904-202010

PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main19000-0E240i1GDFTV..GUN126..TDC..6FC..M..LA;1GDFTV..GUN123,126,136..(5F,6FC)..(GCC,PH,TH,VN)201904-202005

main19000-0E250supersedes 19000-0E200i2GDFTV..GUN122..TSC..X..GEN;2GDFTV..GUN112,122..GCC,PH,TH201904-202005

IRAQ SPEC

main19000-0L061i1KDFTV..KUN126,136201505-201801

sub19000-30431

main19000-0L141i2KDFTV..KUN112,122..IDN,PKN201505-202006

sub19000-30411

main19000-0L170i2KDFTV..KUN125,135..HDCR201505-201707

sub19000-30790

main19000-30451i2KDFTV..KUN112,122,125,135..GCC,GEN,LA,SA201505-201905

main19000-31511i1GRFE..GGN12#..ARL201505-201805

main19000-31L11i1GRFE..GGN125,135..BZAGT,GCC,LA,SA201601-202010

main19000-54A40i5LE..LAN125201601-202009

1 parts on this diagram · 2 diagrams in section
