Toyota HILUX — PARTIAL ENGINE ASSEMBLY

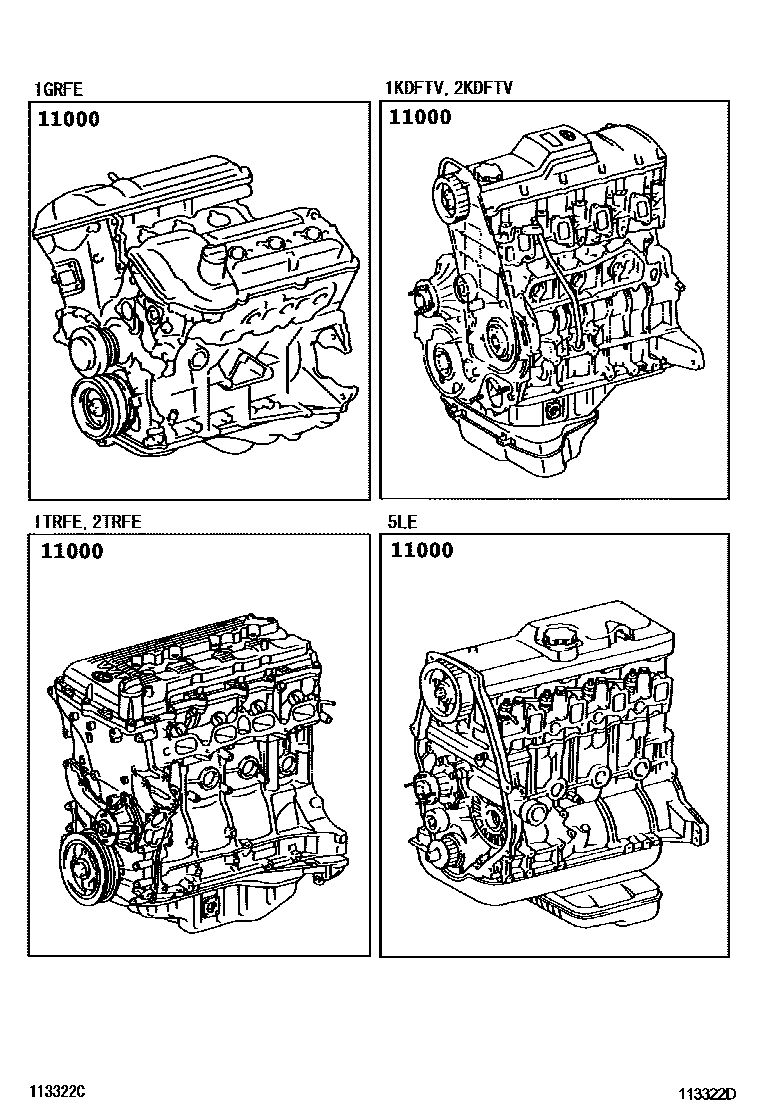

11000ENGINE ASSY, PARTIAL

main19000-0C010i2TRFE..TGN16..5F..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN11,26,36..GCC,PHL200501-200812

sub19000-0C011

sub15330-75010

main19000-0C030i1TRFE..TGN10,15..GCC,GEN,IDN200808-201108

sub19000-0C031

sub15330-75010

main19000-0C060i2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..5F..(ARL,LA);2TRFE..TGN16,26..(DCB,XTR)..(LA,TH)200501-200810

sub19000-0C061

sub15330-75010

main19000-0C070i1TRFE..TGN15..SA200504-200712

*125 OR *187

main19000-0C120i2TRFE..TGN16,26..(DCB,SCB,XTR)..GEN200808-201107

sub19000-0C121

sub15330-75010

main19000-0C170i1TRFE..TGN10..IDN200701-200806

sub19000-0C171

sub15330-75010

main19000-0C190i2TRFE..TGN26..SCB..LA;2TRFE..TGN36..4FC..LA;2TRFE..TGN26,36..SR..LA201006-201009

BRAZIL SPEC

sub19000-0C191

sub15330-75010

main19000-0L060i1KDFTV..KUN16,26,36..PHL,TH200408-200801

*130

sub23670-09330

main19000-0L061i1KDFTV..KUN26..IDN;1KDFTV..KUN16..DCB..5F..TH201008-201107

*130,*321

main19000-0L090i2KDFTV..KUN15..IV3200808-200811

ECUADOR & COLOMBIA SPEC,*130

main19000-0L140i2KDFTV..KUN15..DCR..TH200812-200903

*130

sub23670-09360

main19000-0L141i2KDFTV..KUN15..PHL;2KDFTV..KUN35..DLX..TH;2KDFTV..KUN15..RHD..(SA,TH)201008-201108

*130,*321

main19000-0L170i2KDFTV..KUN25,35..SR..TH200908-201107

sub19000-30790

main19000-30410i2KDFTV..KUN25,35..THDCB200808-201010

ECUADOR & COLOMBIA SPEC,*163 OR *184

main19000-30411i2KDFTV..KUN15..PHL;2KDFTV..KUN35..DLX..TH;2KDFTV..KUN15..RHD..(SA,TH)201008-201108

*163 OR *184,*321

main19000-30420i1KDFTV..KUN26,36..SA200504-200810

main19000-30430i1KDFTV..KUN16,26..ARL200501-200608

*163 OR *184

main19000-30431i1KDFTV..KUN26..IDN;1KDFTV..KUN16..DCB..5F..TH201008-201107

*163 OR *184,*321

main19000-30440i2KDFTV..KUN35..SR..SA;2KDFTV..KUN15,25,35..RHD..SCB..SA200810-201008

*321

main19000-30450supersedes 19000-30410i2KDFTV..KUN10,15,25..(DCB,SCB)..(GCC,GEN)200502-200808

main19000-30451supersedes 19000-30411i2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN10,15,25..(DCB,SCB)..DLX..(GCC,GEN,PKN)201008-201202

*321

main19000-30540i1KDFTV..KUN16,26..ARL200608-200803

main19000-30541i1KDFTV..KUN16,26..ARL200803-200808

main19000-30590supersedes 19000-30590i2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA200810-201008

*321

main19000-30690i1KDFTV..KUN16,26..ARL200908-201107

*553

main19000-30720i1KDFTV..KUN26..DCB..GEN201008-201107

*321

main19000-31500i1GRFE..GGN15,25..ARL200808-200903

main19000-31510i1GRFE..GGN25..ANCOM,SA200504-200812

main19000-31511i1GRFE..GGN15,25..ARL201012-201107

main19000-31L10i1GRFE..GGN25,35..ANCOM,LA,SA200903-201012

main19000-31L11i1GRFE..GGN25,35..ANCOM,SA201012-201204

main19000-54A40i5LE..LAN15,25,35200507-201009

main19000-75K10i1TRFE..TGN15..SA200609-200810

*130

main19000-75K20i2TRFE..TGN16,26,36..SA200609-200810

*130

main19000-75L70supersedes 19000-0C061i2TRFE..TGN26..SCB..LA;2TRFE..TGN26,36..SR..LA;2TRFE..TGN36..4FC..DLX..LA200810-201006

BRAZIL SPEC

main19000-30650i2KDFTV..KUN35..GEN201008-201107

CHILE SPEC

main19000-75K30i2TRFE..TGN16,26..SA200810-201005

LEADED GASOLINE,*130

1 parts on this diagram · 1 diagram in section
