Toyota HILUX — METER

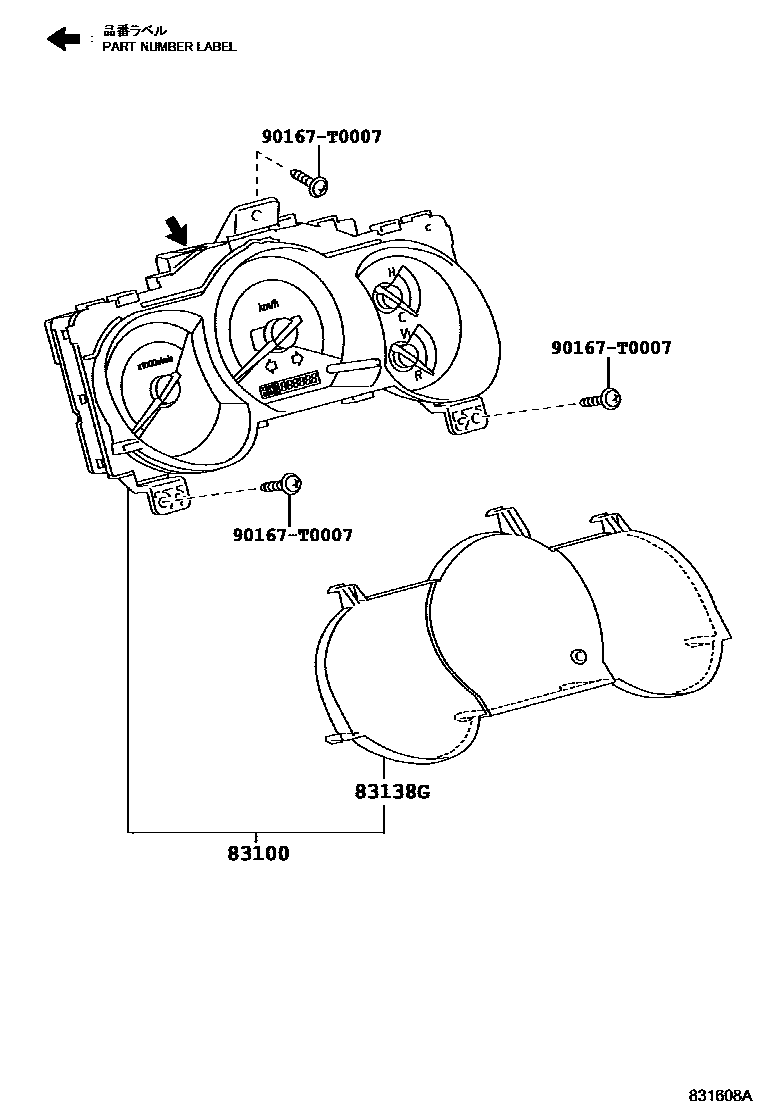

Parts diagram
83100METER ASSY, COMBINATION
main83800-F0620i201210-201504
main83800-F0E20i201107-201208
main83800-F0E21i201208-201408
main83800-F0E40supersedes 83800-FAE91i201107-201308
main83800-F0E41i201308-201601
main83800-F0E50i201107-201609
main83800-F0E60i201204
main83800-F0E70i201204-201509
main83800-F0E90i201107-201504
main83800-F0F80i201204-201404
main83800-F0F81i201404
main83800-F0F90supersedes 83800-F0Q71i201107-201308
MULTI INFORMATION DISPLAY-WITH
main83800-F0F91i201308-201512
main83800-F0G20i201107-201308
MULTI INFORMATION DISPLAY-WITH,P/N LABEL=83800F0G20; P/N LABEL=83800F0G20; SRS AIR BAG-WITH(DRIVER & PASSENGER),P/N LABEL=83800F0G20
main83800-F0G21i201308-201408
MULTI INFORMATION DISPLAY-WITH,P/N LABEL=83800F0G21; P/N LABEL=83800F0G21
main83800-F0G30i201107-201308
main83800-F0G31i201308-201504
main83800-F0J10i201107-201308
main83800-F0J11i201308-201504
main83800-F0L70i201110-201510
main83800-F0L80i201110-201210
main83800-F0L81i201210-201510
main83800-F0L90i201111-201510
main83800-F0N00i201107-201504
main83800-F0N10i201107-201504
main83800-F0N20i201107-201311
main83800-F0N70i201107-201311
main83800-F0N80i201107-201308
main83800-F0P00i201107-201311
TIRE & DISC WHEEL-255/70R15C 7JJ
main83800-F0P30i201107-201504
main83800-F0P50i201107-201504
main83800-F0P60i201107-201504
main83800-F0P80i201107-201504
main83800-F0P90i201107-201408
main83800-F0Q00i201107-201504
main83800-F0Q30i201107-201609
main83800-F0Q60supersedes 83800-FAF10i201107
main83800-F0Q80i201107-201504
main83800-F0Q90i201107-201504
main83800-F0R00i201107-201308
main83800-F0R01i201308-201504
main83800-F0R31i201208-201609
main83800-F0U30i201107-201308
main83800-F0U31i201308-201504
main83800-F0U41i201308-201408
main83800-F0U80i201107-201308
main83800-F0V20i201107-201311
main83800-FA310i201110-201310
main83800-FA311i201310-201510
main83800-FA380supersedes 83800-FAM10i201111-201310
main83800-FA381i201310-201510
main83800-FA390supersedes 83800-FAM21i201111-201310
main83800-FA391i201310-201510
main83800-FAE20i201110-201310
main83800-FAE21i201310-201510
main83800-FAE30i201408-201504
main83800-FAE90i201202-201309
main83800-FAE91i201308-201408
MULTI INFORMATION DISPLAY-CLOCK ONLY
main83800-FAF00i201107-201408
main83800-FAF10i201107-201408
main83800-FAF20supersedes 83800-F0L60i201110-201510
AUTO DISCONNECT DIFFERENTIAL-WITHOUT
main83800-FAF30i201110-201510
main83800-FAQ60i201108-201310
main83800-FAQ61i201310-201512
main83800-FAR10i201108-201512
main83800-FAR30i201108-201512
main83800-FAR60i201108-201512
main83800-FAR70i201108-201512
DIFFERENTIAL LOCK-WITH(LSD); DIFFERENTIAL LOCK-WITHOUT
main83800-FAS00supersedes 83800-FAS30i201108-201410
EXPORT FROM SOUTH AFRICA; KENYA SPEC
main83800-FAS90i201108-201310
main83800-FAS91i201310-201410
main83800-FAT01supersedes 83800-FAT31i201310-201410
main83800-FAY40i201204-201510
main83800-FAZ30i201204-201310
main83800-FAZ31i201310-201512
main83800-FAZ40i201204-201310
main83800-FAZ41i201310-201512
main83800-FAZ50i201204-201310
main83800-FAZ51i201310-201512
main83800-FAZ60i201204-201310
main83800-FAZ61i201310-201512
main83800-FB110i201210-201310
main83800-FB111i201310-201510
main83800-FB170i201208-201504
main83800-FB260i201208-201308
MULTI INFORMATION DISPLAY-WITH
main83800-FB261supersedes 83800-FB190i201308-201504
MULTI INFORMATION DISPLAY-WITH
main83800-FB400i201212-201310
main83800-FB401i201310-201510
main83800-FBW00i201311-201504
main83800-FBW20supersedes 83800-FCA40i201311-201408
main83800-FBX50i201308-201504
main83800-FBZ40i201308-201408
main83800-FC600i201311-201408
main83800-FC610i201408-201504
main83800-FC630supersedes 83800-FC620i201408-201504
MULTI INFORMATION DISPLAY-WITH
main83800-FC650i201311-201504
main83800-FC660i201408-201504
main83800-FCA50i201408-201504
MULTI INFORMATION DISPLAY-WITH
main83800-FCA70i201408-201504
main83800-FCD50i201410-201510
main83800-FCD60i201408-201504
main83800-FCD90i201408-201504
MULTI INFORMATION DISPLAY-WITH
main83800-FCE00i201408-201504
main83800-FCE20i201408-201504
MULTI INFORMATION DISPLAY-CLOCK ONLY
main83800-FCE30i201408-201504
main83800-FCE40i201408-201504
main83800-FCE50i201410-201512
EXPORT FROM SOUTH AFRICA; KENYA SPEC
main83800-FCE60i201410-201512
main83800-FCE70i201410-201512
main83800-FCE80i201410-201510
main83800-FCE90i201410-201510
main83800-F0E30supersedes 83800-FAE80i201107-201504
AUTO DISCONNECT DIFFERENTIAL-WITH
main83800-F0G40i201107-201308
MULTI INFORMATION DISPLAY-WITH
main83800-F0G41i201308-201504
KAZAKHSTAN SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER); MULTI INFORMATION DISPLAY-WITH
main83800-F0G50supersedes 83800-FC630i201107-201311
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J; VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-F0G60i201107-201311
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J; VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-F0G70supersedes 83800-F0N60i201107-201311
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J; VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-F0G80supersedes 83800-F0N50i201107-201311
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J; VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-F0L60i201110-201510
AUTO DISCONNECT DIFFERENTIAL-WITH
main83800-F0N90supersedes 83800-F0N50i201107-201311
TIRE & DISC WHEEL-255/70R15C 7JJ
main83800-F0P10i201107-201311
TIRE & DISC WHEEL-255/70R15C 7JJ
main83800-F0P20supersedes 83800-FBZ50i201107-201308
TIRE & DISC WHEEL-255/70R15C 7JJ
main83800-F0P70i201107-201504
AUTO DISCONNECT DIFFERENTIAL-WITH
main83800-F0T40i201107-201308
DIFFERENTIAL LOCK-WITHOUT&VSC-WITH
main83800-F0T41i201308-201504
DIFFERENTIAL LOCK-WITHOUT&VSC-WITH
main83800-F0U40supersedes 83800-FC660i201107-201308
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-F0U50supersedes 83800-F0U90i201107-201311
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-F0U60supersedes 83800-F0V00i201107-201311
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-F0U70supersedes 83800-FC640i201107-201311
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-FA770i201107-201504
DIFFERENTIAL LOCK-WITH
main83800-FAE80supersedes 83800-F0E30i201107-201504
AUTO DISCONNECT DIFFERENTIAL-WITHOUT
main83800-FAJ20i201107-201308
MULTI INFORMATION DISPLAY-WITH
main83800-FAP90supersedes 83800-FAT52i201108-201310
DIFFERENTIAL LOCK-WITH
main83800-FAQ00supersedes 83800-FAT52i201108-201310
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FAQ20supersedes 83800-FCC01i201108-201310
VSC-WITH
main83800-FAQ30supersedes 83800-FCC01i201108-201310
DIFFERENTIAL LOCK-WITH
main83800-FAQ40supersedes 83800-FCC01i201108-201310
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FAR00i201108-201512
DIFFERENTIAL LOCK-WITH
main83800-FAR20supersedes 83800-FAS10i201108-201310
DIFFERENTIAL LOCK-WITH
main83800-FAR40supersedes 83800-FAR50i201108-201512
DIFFERENTIAL LOCK-WITH
main83800-FAR90supersedes 83800-FAR80i201108-201512
EXPORT FROM SOUTH AFRICA; KENYA SPEC
main83800-FAS10i201108-201310
AUTO DISCONNECT DIFFERENTIAL-WITH&DIFFERENTIAL LOCK-WITH
main83800-FAS20supersedes 83800-FAS10i201108-201310
AUTO DISCONNECT DIFFERENTIAL-WITH
main83800-FAS30i201108-201512
EXPORT FROM SOUTH AFRICA; KENYA SPEC
main83800-FAT10supersedes 83800-FCD40i201108-201310
VSC-WITH
main83800-FAT11supersedes 83800-FCD40i201310-201410
VSC-WITH
main83800-FAT12supersedes 83800-FCD40i201410-201512
VSC-WITH
main83800-FAT30supersedes 83800-FCD40i201108-201310
DIFFERENTIAL LOCK-WITH
main83800-FAT31supersedes 83800-FCD40i201310-201410
DIFFERENTIAL LOCK-WITH
main83800-FAT40supersedes 83800-FCD40i201108-201310
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FAT41i201310-201410
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FAT42i201410-201512
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FAT60supersedes 83800-FAT52i201108-201310
VSC-WITH
main83800-FAT61supersedes 83800-FAT52i201310-201410
VSC-WITH
main83800-FAT62supersedes 83800-FAT52i201410-201512
VSC-WITH
main83800-FAW10i201108-201310
MULTI INFORMATION DISPLAY-WITH
main83800-FAX10supersedes 83800-FAX22i201108-201310
VSC-WITH
main83800-FAX20supersedes 83800-FAX22i201108-201310
DIFFERENTIAL LOCK-WITH
main83800-FAX30supersedes 83800-FAX22i201108-201310
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FAX31supersedes 83800-FAX22i201310-201410
VSC-WITH
main83800-FAX32supersedes 83800-FAX22i201410-201512
VSC-WITH
main83800-FAX50supersedes 83800-FAX62i201108-201310
VSC-WITH
main83800-FAX60supersedes 83800-FAX62i201108-201310
DIFFERENTIAL LOCK-WITH
main83800-FAX70supersedes 83800-FAX62i201108-201310
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FAX71supersedes 83800-FAX62i201310-201410
VSC-WITH
main83800-FAX72supersedes 83800-FAX62i201410-201512
VSC-WITH
main83800-FAY10supersedes 83800-FAY20i201204-201310
AUTO DISCONNECT DIFFERENTIAL-WITH
main83800-FAY30i201204-201510
AUTO DISCONNECT DIFFERENTIAL-WITH
main83800-FAY60supersedes 83800-FAY51i201204-201310
VSC-WITH
main83800-FAY61supersedes 83800-FAY51i201410-201510
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM
main83800-FAY80supersedes 83800-FAY71i201204-201310
VSC-WITH
main83800-FAY81supersedes 83800-FAY71i201310-201410
VSC-WITH
main83800-FAZ10supersedes 83800-FAZ20i201204-201310
AUTO DISCONNECT DIFFERENTIAL-WITH
main83800-FB010i201205-201308
CHILE SPEC(EURO 5 REGULATION); CHILE SPEC(EURO 5 REGULATION)&AUTO DISCONNECT DIFFERENTIAL-WITH
main83800-FB020supersedes 83800-F0E30i201308-201504
CHILE SPEC(EURO 5 REGULATION)&AUTO DISCONNECT DIFFERENTIAL-WITHOUT&POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FB040supersedes 83800-F0R21i201205-201308
CHILE SPEC(EURO 5 REGULATION)
main83800-FB041supersedes 83800-F0R21i201308-201504
CHILE SPEC(EURO 5 REGULATION)
main83800-FB070supersedes 83800-FB241i201208-201308
VSC-WITH
main83800-FB071supersedes 83800-FB241i201308-201504
VSC-WITH
main83800-FB150i201308-201504
KAZAKHSTAN SPEC&DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FB160supersedes 83800-FAE91i201208-201504
AUTO DISCONNECT DIFFERENTIAL-WITH&DIFFERENTIAL LOCK-WITH
main83800-FB250i201208-201308
LIGHT CONTROL SYSTEM-WITH
main83800-FB251i201308-201504
LIGHT CONTROL SYSTEM-WITH
main83800-FB270supersedes 83800-FB301i201210-201302
DIFFERENTIAL LOCK-WITHOUT
main83800-FB271supersedes 83800-FB301i201303-201310
DIFFERENTIAL LOCK-WITHOUT
main83800-FB280supersedes 83800-FB291i201210-201302
DIFFERENTIAL LOCK-WITH
main83800-FB281supersedes 83800-FB291i201303-201512
DIFFERENTIAL LOCK-WITH
main83800-FB380supersedes 83800-FB180i201208-201308
MULTI INFORMATION DISPLAY-WITH
main83800-FBX80i201308-201504
MULTI INFORMATION DISPLAY-CLOCK ONLY
main83800-FBZ60supersedes 83800-FBZ50i201308-201408
MULTI INFORMATION DISPLAY-WITH
main83800-FC120i201308-201504
DIFFERENTIAL LOCK-WITH
main83800-FC130i201308-201504
KAZAKHSTAN SPEC&DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FC190i201308-201504
VSC-WITH&LIGHT CONTROL SYSTEM-WITH
main83800-FC200i201308-201504
VSC-WITH
main83800-FCC11supersedes 83800-FAT52i201410-201512
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FCC21supersedes 83800-FAT52i201410-201512
DIFFERENTIAL LOCK-WITH
main83800-FCC31i201410-201512
DIFFERENTIAL LOCK-WITH&VSC-WITH
main83800-FCD10supersedes 83800-F0R30i201412-201609
MULTI INFORMATION DISPLAY-WITH
main83800-FCD30supersedes 83800-FCD40i201410-201512
DIFFERENTIAL LOCK-WITH
main83800-FCG90supersedes 83800-F0P40i201408-201504
ECUADOR SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FCJ00i201408-201504
ECUADOR SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FCJ10supersedes 83800-FCE10i201408-201504
ECUADOR SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FCJ20i201408-201504
ECUADOR SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FCJ30i201408-201504
ECUADOR SPEC&AUTO DISCONNECT DIFFERENTIAL-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FCJ40i201408-201504
ECUADOR SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83800-FCJ50i201408-201504
ECUADOR SPEC&TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM
83138GGLASS, COMBINATION METER
main83852-F0D60i201107-201308
main83852-F0F10i201107-201308
MULTI INFORMATION DISPLAY-WITH; SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83852-F0M00i201110-201510
main83852-FA320i201110-201510
90167T0007
main90167-T0007

3 parts on this diagram · 2 diagrams in section

METER for Toyota HILUX

This section contains 5 genuine Toyota parts for the METER system of the Toyota HILUX. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, METER ASSY, ACCESSORY, CLOCK ASSY.

Toyota HILUX METER — Parts Diagram | EPC Data
