Toyota HILUX — INDICATOR

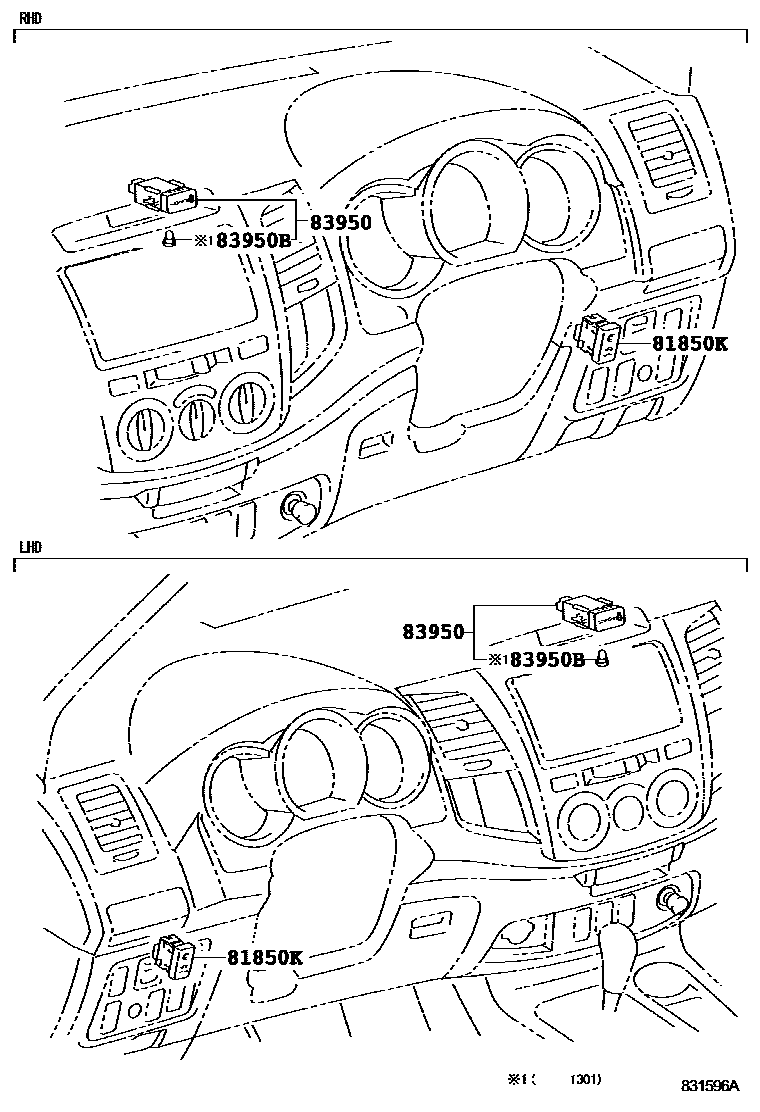

81850KLAMP ASSY, SECURITY INDICATOR
ANTI-THEFT SYSTEM-*IM
83950LAMP ASSY, TELLTALE
main83950-0K010supersedes 83950-0K011iKUN25..RHD..GEN;KUN15..RHD..SCB..GEN;KUN15..LHD..DCB..DLX..GEN201107-201301
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main83950-0K011supersedes 83950-0K090iKUN15..SMT..SR;KUN15..SR..PHL;KUN15,TGN16..DCB..TH;KUN25,35..(5F,5FC)..(IDN,TH)201301-201308
SRS AIR BAG-WITH(DRIVER & PASSENGER)
83950BBULB, TELLTALE LAMP
main90010-07011supersedes 90010-07011iKUN25..RHD..GEN;KUN15..RHD..SCB..GEN;KUN15..LHD..DCB..DLX..GEN201107-201301
14V 1.4W,SRS AIR BAG-WITH(DRIVER & PASSENGER)&MULTI INFORMATION DISPLAY-CLOCK ONLY
3 parts on this diagram · 1 diagram in section
