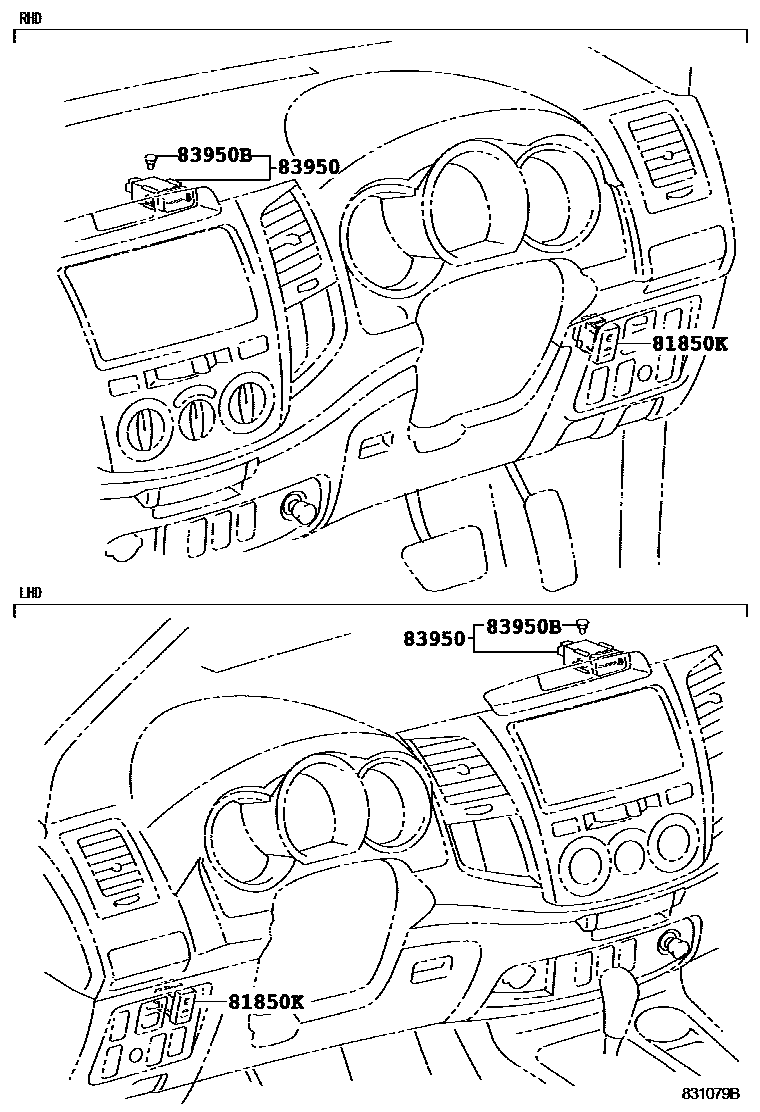

Toyota HILUX — INDICATOR
81850KLAMP ASSY, SECURITY INDICATOR
83950LAMP ASSY, TELLTALE
main83950-0K010iGGN15,25;KUN26..ARL;TGN36..4FC..ANCOM;KUN26..4FC..(GEN,LA);TGN26..SR..(ANCOM,GEN);KUN36..5F..SR..(LA,SA);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN16,TGN16,36..RHD..(DCB,SCB)..5F..(ARL,SA)200501-200812
83950BBULB, TELLTALE LAMP
main90010-07011iGGN15,25;KUN26..ARL;TGN36..4FC..ANCOM;KUN26..4FC..(GEN,LA);TGN26..SR..(ANCOM,GEN);KUN36..5F..SR..(LA,SA);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN16,TGN16,36..RHD..(DCB,SCB)..5F..(ARL,SA)200501-200812
14V 1.4W
3 parts on this diagram · 1 diagram in section
INDICATOR for Toyota HILUX
This section contains 3 genuine Toyota parts for the INDICATOR system of the Toyota HILUX. Key components include: LAMP ASSY, SECURITY INDICATOR, LAMP ASSY, TELLTALE, BULB, TELLTALE LAMP.
