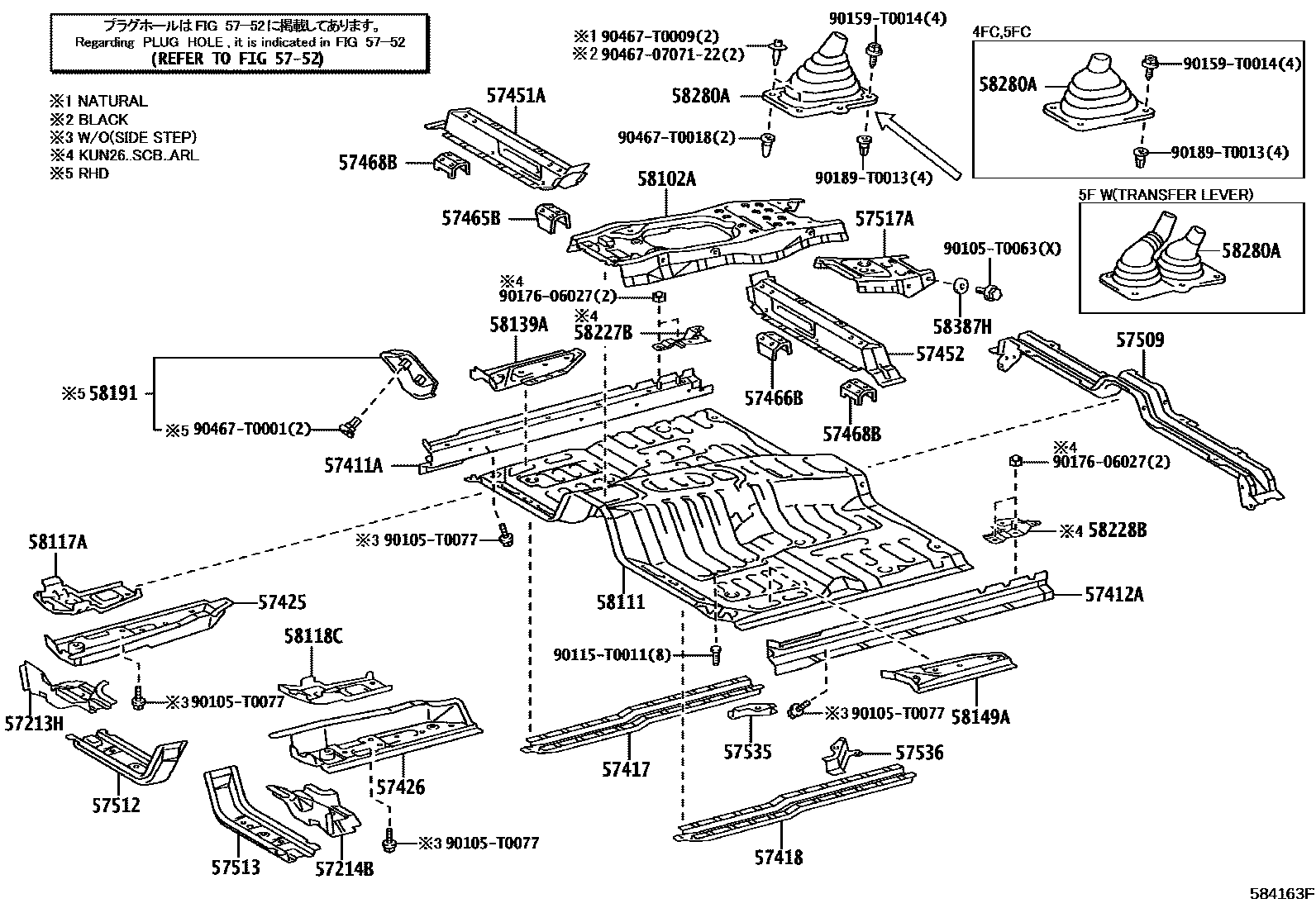

Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57213HBRACKET, BODY MOUNTING, NO.2 RH
57214BBRACKET, BODY MOUNTING, NO.2 LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
main57412-0K010iGGN15;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..SCB..(LA,SA);KUN15..(DCB,SCB)..(GCC,GEN,PHL,SA,TH);KUN26..(DCB,SADCB,THDCB,XTR)..(ARL,CO,GEN,LA,PHL,SA,TH);GGN25,35,KUN1201107-201609
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57465BBRACKET, FRONT SEAT, INNER
57466BBRACKET, FRONT SEAT, INSIDE LH
57468BBRACKET, FRONT SEAT, REAR
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
main57509-0K010iKUN26,TGN36..4FC..LA;KUN25,3#,TGN26..CO,LA;KUN26,TGN36..(5F,5FC)..(ANCOM,CO,LA)201107-201604
57512REINFORCEMENT, FRONT FLOOR, RH
main57512-0K010iKUN15..XTR..TH;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
57513REINFORCEMENT, FRONT FLOOR, LH
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
5752HOLE PLUG
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
main58102-0K010iGGN15,25,35,KUN16,2#,3#,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107-201609
58111PAN, FRONT FLOOR
main58111-0K030iKUN15..XTR..DLX;KUN15..DCB,SCB,SMT;GGN15,KUN10,16,3#,LAN15,35,TGN1#,36..5F201107-201609
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
main58117-0K010iKUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107-201609
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58139APLATE, FRONT FLOOR SIDE, REAR RH
58149APLATE, FRONT FLOOR SIDE, REAR LH
main58149-0K010iKUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107-201609
58191FOOTREST, FRONT FLOOR
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58228BPLATE, FRONT FLOOR PANEL SIDE, LH
58280ABOOT ASSY, SHIFT LEVER
main58280-0K080iKUN26..4FC..ARL..CBU;KUN26..(4FC,5FC)..IV3;KUN2#..RHD..(4FC,5FC)..(GEN,IDN,MA,PKN,SA,TH)201107-201609
58387HPLATE, REAR FLOOR
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)
FRONT SEAT-*PAS(FOR TWO PERSONS) & W/O(CENTER *SBE)
FRONT SEAT-PASSENGER SEAT(FOR TWO PERSONS)
90105T0063
main90105-T0063
90105T0077
main90105-T0077
90115T0011
main90115-T0011
90159T0014
main90159-T0014
9017606027
main90176-06027
90189T0013
main90189-T0013
904670707122
main90467-0707122
90467T0001
main90467-T0001
90467T0009
main90467-T0009
90467T0018
main90467-T0018
41 parts on this diagram · 4 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX
This section contains 68 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, COVER, SIDE DOOR STEP PLATE, FRONT RH.
