Toyota HILUX — FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0K070iGUN126..GHA,SA;GGN125,GUN122,125,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111
main69201-0K080iGUN125,126,135,TGN126,136..AD..S..LA; GUN126,TGN126..(AD,AS)..L;GUN125,135,TGN128,13#..(AD,AS)..(H,L); TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY); WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0K070iGUN126..GHA,SA;GGN125,GUN122,125,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111
main69202-0K080iGUN125,126,135,TGN126,136..AD..S..LA; GUN126,TGN126..(AD,AS)..L;GUN125,135,TGN128,13#..(AD,AS)..(H,L); TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY); WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
main69205-0K100-C1iTGN126..(TD,TS)..L..LA;GUN126..RHD..6FC..S..GEN;GUN122,125..LHD..(TD,TS)..S..GEN;GUN125..TD..(L,S)..(ARL,IDN,PH,VN);GUN135..(TD,TS)..L..(ARL,GEN,LA,VN);GUN125,126..(PD,TD)..L..(GEN,LA,PKN);GUN135,TGN126..(5F,6FC)..(L,S)..(GEN,VN);GUN126,136..(PS,TD,TS,TX)..(L,S)..(ARL,PKN,TH);GUN125..(MD,MS,TS,TX)..(L,S)..(ARL,GEN,IDN,LA,MA,TH);GUN112,120,122,123,TGN110,121,136..(PS,TD,TS,TX)..L..(ARL,GEN,IDN,LA,PH,PKN,TH)202006-202201
BLACK,TRIM2#
main69205-0K110-C0iGGN125,GUN122,125,126,TGN121,126..H..GCC; GUN125..TX..S;GUN122,125..LHD..TD..S..GEN; GUN126..RHD..6FC..S..GEN202006-202108
BLACK,TRIM2#,3#; CENTRAL AND SOUTH AMERICA SPEC,BLACK,TRIM2#; DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#; NEPAL, SRI LANKA SPEC(EURO 4 REGULATION),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,3#
main69206-0K100-C0iGUN135..PH,TH;GUN125..TD..6F..S..LA;GUN126..LHD..TD..6FC..S;GUN125..TD..6FC..(IDN,LA);GUN125,TGN126..LHD..H..GEN;GUN126..TD..6F..S..(GEN,LA);GUN135..TD..(H,S)..(GEN,LA);GUN125..RHD..(TD,TS)..(H,S)..(GEN,TH);GUN120,122,TGN126..(TD,TX)..(H,S)..(LA,TH);GUN126,136..(MMD,TD,TX)..H..(ARL,GEN,LA,MMR,PH,TH,TWN,VN)202006-202301
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PAINT REQ.
main69210-0K060iGUN125..6F..S..MA;GUN126..LHD..S..GEN;GUN125,126,13#..(KD,MD,MMD,TD,TX)..H..(ARL,GEN,KEN,MA,MMR,PH,TH,TWN,VN)202006-202301
PLATED
PLATED
main69210-0K210iGUN125..6FC..S..MA;GUN135..(TD,TS)..L..(ARL,GEN,LA,VN);GUN112,12#,TGN110,121,126,136..(MD,MS,PD,PS,TD,TS,TX)..L..(ARL,GEN,IDN,LA,MA,PH,PKN,TH)202006-202201
NO PAINT REQ.
PLATED
main69210-0K250iGUN125..L..GHA;GUN122,125,126,13#,LAN125,TGN120,121,126,136..(L,S)..(KEN,SA)202009-202111
NO PAINT REQ.
NO PAINT REQ.
PLATED
main69210-0K903iGUN125,126,135,TGN126,136..AD..S..LA; TGN128,138..H; TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
PAINT REQ.; PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY); PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
PAINT REQ.
NO PAINT REQ.,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69210-YP030iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125..TD..H..GEN;GUN126..LHD..H..GEN; GUN126..VN202006-202108
NO PAINT REQ.,MLM ADVENTURE PACKAGE; NO PAINT REQ.,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH; NO PAINT REQ.,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
NO PAINT REQ.,MLM ADVENTURE PACKAGE
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
LESS COLOR,DRIVER SIDE
main69217-0K370×2supersedes 69217-0K914iGUN112,122,125,TGN110,120,121,126..L..GCC; GUN112,122,125,TGN110,120,121,126..TS..L..GCC; GUN122,125,TGN120,121,126..TD..L..GCC; TGN121,126..TS..(GEN,LA); TGN126..H..GEN; TGN126..TS..LA;TGN121..TD..GEN;GUN125,135..TD..L..LA;GUN125..RHD..TD..6F..L..GEN202006-202108
*CR; *CR,DOOR OUTSIDE HANDLE-*CR; *CR,DRIVER & PASSENGER; *CR,DRIVER SIDE; *CR,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE; *CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
*CR,PASSENGER SIDE
main69217-0K430×2iGUN122,126,TGN121..PS; GUN135,TGN126,136..TD..L..LA;GUN122,125,126,TGN121..(PD,TD)..MTM..L..(GEN,LA,PH,PKN)202006-202201
BLACK MATERIAL; BLACK MATERIAL,DRIVER & PASSENGER
main69217-0K440iGUN125..6FC..S..MA;GUN125..TD..L..IDN;GUN126..TD..6FC..L;GUN135..L..(ARL,GEN,VN);GUN112,12#,TGN121..L..(ARL,MA,TH);GUN125,TGN126,136..(5F,6FC)..L..GEN202006-202110
BLACK MATERIAL,PASSENGER SIDE
main69217-0K450iGUN125..(GD,KD,SX)..L;GUN122,TGN120..RHD..SA;GUN125,126,13#,LAN125,TGN126,136..S..SA; GUN125..KS;GUN125..(SD,SS)..L;GUN135..L..(KEN,SA);GUN122,LAN125,TGN121,126..LHD..L..SA202009-202111
BLACK MATERIAL,DRIVER & PASSENGER; BLACK MATERIAL,DRIVER SIDE
main69217-0K460iGUN125..(GD,KD,SX)..L;GUN122,TGN120..RHD..SA;GUN125,126,13#,LAN125,TGN126,136..S..SA202009-202111
BLACK MATERIAL,PASSENGER SIDE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
PLATED,PASSENGER SIDE
PLATED,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
BLACK MATERIAL,POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,DRIVER SIDE; BLACK MATERIAL,POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH,DRIVER SIDE
BLACK MATERIAL,POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE; BLACK MATERIAL,POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K913iGUN125,126,135,TGN126,136..AD..S..LA; TGN128,138..H; TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE; LESS COLOR,DRIVER SIDE; LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE
main69217-0K914iGUN125,126,135,TGN126,136..AD..S..LA; TGN128,138..H; TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE; LESS COLOR,PASSENGER SIDE; LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE
main69217-YP010iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125..TD..H..GEN;GUN126..LHD..H..GEN; GUN126..TD..6FC..H..ARL..CBU; GUN126..VN202006-202108
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),DRIVER SIDE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH,DRIVER SIDE; RUGGED X PACKAGE,DRIVER SIDE
main69217-YP020iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125..TD..H..GEN;GUN126..LHD..H..GEN; GUN126..TD..6FC..H..ARL..CBU; GUN126..VN202006-202108
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),PASSENGER SIDE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE; RUGGED X PACKAGE,PASSENGER SIDE
MLM ADVENTURE PACKAGE,DRIVER SIDE
MLM ADVENTURE PACKAGE,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PAINT REQ.
main69210-0K060iGUN125..6F..S..MA;GUN126..LHD..S..GEN;GUN125,126,13#..(KD,MD,MMD,TD,TX)..H..(ARL,GEN,KEN,MA,MMR,PH,TH,TWN,VN)202006-202301
PLATED
main69210-0K200iGUN122..L..GCC;GUN135..(L,S)..(PH,TH);GUN126..(H,S)..(GCC,LA);GUN125..TD..6F..(H,L)..GCC;GUN125..RHD..(TS,TX)..(H,S);GUN125..6FC..(H,L)..(GCC,IDN);GUN126,136..RHD..S..(ARL,GEN);GUN135,TGN126..(H,S)..(LA,VN);GGN125,GUN112,TGN11#,120,121,126..GCC;GUN125..LHD..(TS,TX)..(L,S)..(GCC,GEN);GUN122,136,TGN136..(H,S)..(GCC,GEN,LA);GUN125..(AD,TD)..S..(GCC,GEN,IDN,LA,TH,VN)202006-202110
PLATED
main69210-0K210iGUN125..6FC..S..MA;GUN135..(TD,TS)..L..(ARL,GEN,LA,VN);GUN112,12#,TGN110,121,126,136..(MD,MS,PD,PS,TD,TS,TX)..L..(ARL,GEN,IDN,LA,MA,PH,PKN,TH)202006-202201
NO PAINT REQ.
PLATED
main69210-0K250iGUN125..L..GHA;GUN122,125,126,13#,LAN125,TGN120,121,126,136..(L,S)..(KEN,SA)202009-202111
NO PAINT REQ.
NO PAINT REQ.
PLATED
main69210-0K903iGUN125,126,135,TGN126,136..AD..S..LA; TGN128,138..H; TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
PAINT REQ.; PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY); PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
PAINT REQ.
NO PAINT REQ.,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69210-YP030iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125..TD..H..GEN;GUN126..LHD..H..GEN; GUN126..VN202006-202108
NO PAINT REQ.,MLM ADVENTURE PACKAGE; NO PAINT REQ.,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH; NO PAINT REQ.,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
NO PAINT REQ.,MLM ADVENTURE PACKAGE
69237ANUT, FRONT DOOR HANDLE
main69237-0K070×2iGUN125,126,135,TGN126,136..AD..S..LA; GUN126,TGN126..(AD,AS)..L;GUN125,135,TGN128,13#..(AD,AS)..(H,L); TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY); WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
69239CBUSH, FRONT DOOR HANDLE
main69239-0K070×2iGUN125,126,135,TGN126,136..AD..S..LA; GUN126,TGN126..(AD,AS)..L;GUN125,135,TGN128,13#..(AD,AS)..(H,L); TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY); WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69239-0K080×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MMD,SD,SS,SX,TD,TS,TX202006-202301
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-0K041×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MMD,SD,SS,SX,TD,TS,TX202006-202301
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-33010iGUN125,126,135,TGN126,136..AD..S..LA; GUN126,TGN126..(AD,AS)..L;GUN125,135,TGN128,13#..(AD,AS)..(H,L); TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY); WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-33020iGUN125,126,135,TGN126,136..AD..S..LA; GUN126,TGN126..(AD,AS)..L;GUN125,135,TGN128,13#..(AD,AS)..(H,L); TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY); WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
main69030-02470iGUN126..H..PKN;GUN136..RHD..S;GUN136..H..ARL;GUN125..TD..L..IDN;GUN126..S..(PKN,SA);GUN125..6FC..(GEN,IDN);GUN126,135..RHD..(KD,TD,TS,TX);GUN125..RHD..6F..(H,S)..(GEN,IDN);GUN112,120,122,123,125,TGN121..RHD..(KD,SX,TD,TS,TX)..(ARL,KEN,SA,TH)202006-202201
main69030-02480iGUN125..LHD..H..GEN;GUN135..LHD..(GEN,PH);GUN126..LHD..(GEN,MMR,PH,TWN,VN)202006-202301
main69030-02530iGGN125,TGN128,138..AD;GUN125,126,13#..(H,S)..BZAG; GUN126,136..AD..H..LA;GUN125,TGN126,136..AD..(5F,6FC)..(H,S); GUN126..AD..H..LA;GUN125,TGN126,136..AD..(5F,6FC)..S; GUN126..AD..H..LA;GUN126..AD..6F..S..LA;GUN125,13#,TGN126,136..AD..(H,S)..LA; GUN126..AD..H..LA;GUN126..AD..6F..S..LA;GUN125,135,TGN126,136..AD..S..LA; GUN135..6FC..BZAG202011-202110
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69030-02600iTGN126..L..GEN;GUN126..TD..6FC..L;GUN125..H..(GCC,SA);TGN136..LHD..(GEN,SA);GUN125,135..L..(GHA,VN);GUN126..LHD..(GD,SD,TD)..(H,S)..(GCC,GHA,LA,SA);GUN125,135..LHD..(GD,SD,SS,SX,TD,TX)..S..(GCC,GEN,GHA,LA,SA,VN);GGN125,GUN112,122,136,LAN125,TGN111,121,126..LHD..(SD,TD,TS)..(H,S)202006-202111
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69030-53080iGUN125..MA;GUN125,135..RHD..S..SA;GUN126,136..RHD..H..(MA,SA);GGN125,GUN122,TGN120,136..RHD..SA202009-202110
main69310-02160iGUN135..RHD..L..(KEN,SA);GUN125..RHD..(KS,TS)..6F..(L,S)..CBU;GUN125..RHD..(SD,SS,TD)..6F..L..(GEN,SA);GUN112,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN)202006-202201
main69310-0K100iGUN126,TGN136..TD..MTM..L..LA;TGN126..(SD,TD,TS)..L..(GCC,LA,SA);GUN112,122,125,135,LAN125,TGN110,120,121..LHD..(SD,SS,TD,TS)..L..(GCC,GEN,LA,PH,SA)202006-202109
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
69320LOCK ASSY, FRONT DOOR, LH
main69040-02450iGUN126..TD..6FC..L;TGN136..LHD..(GEN,SA);GUN135,TGN126..LHD..L..(GEN,VN);GGN125,GUN112,122,125,126,13#,LAN125,TGN111,121,126..LHD..(MMD,SD,SS,SX,TD,TS,TX)..(H,S)202006-202301
main69040-02470iGUN126..(H,S)..PKN;GUN125..(KD,TD,TX)..(IDN,KEN,TH);GUN125,136..RHD..TD..H..(ARL,GEN);GUN112,120,122,123,135,TGN121..TH;GUN126..RHD..(H,L)..(ARL,GEN,KEN,TH)202006-202201
main69040-02550iGUN125..TS..H;GUN125..6FC..GEN;GUN135..L..(ARL,GEN);GUN125..RHD..6F..S..GEN;GUN126,136..RHD..S..(ARL,GEN,SA);GUN125,TGN121..(SX,TD,TS,TX)..L..(ARL,SA)202006-202109
main69040-53090iGUN125..MA;GUN125,135..RHD..S..SA;GUN126,136..RHD..H..(MA,SA);GGN125,GUN122,TGN120,136..RHD..SA202009-202110
main69320-02160iGUN135..RHD..L..(KEN,SA);GUN125..RHD..(KS,TS)..6F..(L,S)..CBU;GUN125..RHD..(SD,SS,TD)..6F..L..(GEN,SA);GUN112,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN)202006-202201
main69320-0K090iGUN126,TGN136..TD..MTM..L..LA;TGN126..(SD,TD,TS)..L..(GCC,LA,SA);GUN112,122,125,135,LAN125,TGN110,120,121..LHD..(SD,SS,TD,TS)..L..(GCC,GEN,LA,PH,SA)202006-202109
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-0K070×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MMD,SD,SS,SX,TD,TS,TX202006-202301
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0K140iGUN126..SS..S;GUN122..LHD..SS;GUN125,135..SS..L;GUN125..LHD..SS..S;GUN126,135..KS,PS,TS,TX;GUN122,125,TGN120..KS,PS,SX,TS,TX;GUN112,120,123,136,LAN125,TGN11#,121,126..(PS,SS,TS,TX)..(L,S)202006-202201
main69710-0K200iGUN125..MS;GUN126..(SS,SX)..H;GUN125,135..RHD..(SS,SX)..S;GUN122,136,TGN120,136..RHD..(SS,SX)202009-202110
main69710-0K210iGUN125..MD;GUN126,136..RHD..(MD,SD)..H;GGN125,GUN125,135,TGN136..RHD..SD..(H,S)202009-202110
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0K140iGUN126..SS..S;GUN122..LHD..SS;GUN125,135..SS..L;GUN125..LHD..SS..S;GUN126,135..KS,PS,TS,TX;GUN122,125,TGN120..KS,PS,SX,TS,TX;GUN112,120,123,136,LAN125,TGN11#,121,126..(PS,SS,TS,TX)..(L,S)202006-202201
main69710-0K200iGUN125..MS;GUN126..(SS,SX)..H;GUN125,135..RHD..(SS,SX)..S;GUN122,136,TGN120,136..RHD..(SS,SX)202009-202110
main69710-0K210iGUN125..MD;GUN126,136..RHD..(MD,SD)..H;GGN125,GUN125,135,TGN136..RHD..SD..(H,S)202009-202110
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-0K140iGUN126..SS..S;GUN122..LHD..SS;GUN125,135..SS..L;GUN125..LHD..SS..S;GUN126,135..KS,PS,TS,TX;GUN122,125,TGN120..KS,PS,SX,TS,TX;GUN112,120,123,136,LAN125,TGN11#,121,126..(PS,SS,TS,TX)..(L,S)202006-202201
main69750-0K200iGUN125..MS;GUN126..(SS,SX)..H;GUN125,135..RHD..(SS,SX)..S;GUN122,136,TGN120,136..RHD..(SS,SX)202009-202110
main69750-0K210iGUN125..MD;GUN126,136..RHD..(MD,SD)..H;GGN125,GUN125,135,TGN136..RHD..SD..(H,S)202009-202110
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-0K140iGUN126..SS..S;GUN122..LHD..SS;GUN125,135..SS..L;GUN125..LHD..SS..S;GUN126,135..KS,PS,TS,TX;GUN122,125,TGN120..KS,PS,SX,TS,TX;GUN112,120,123,136,LAN125,TGN11#,121,126..(PS,SS,TS,TX)..(L,S)202006-202201
main69750-0K200iGUN125..MS;GUN126..(SS,SX)..H;GUN125,135..RHD..(SS,SX)..S;GUN122,136,TGN120,136..RHD..(SS,SX)202009-202110
main69750-0K210iGUN125..MD;GUN126,136..RHD..(MD,SD)..H;GGN125,GUN125,135,TGN136..RHD..SD..(H,S)202009-202110
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005

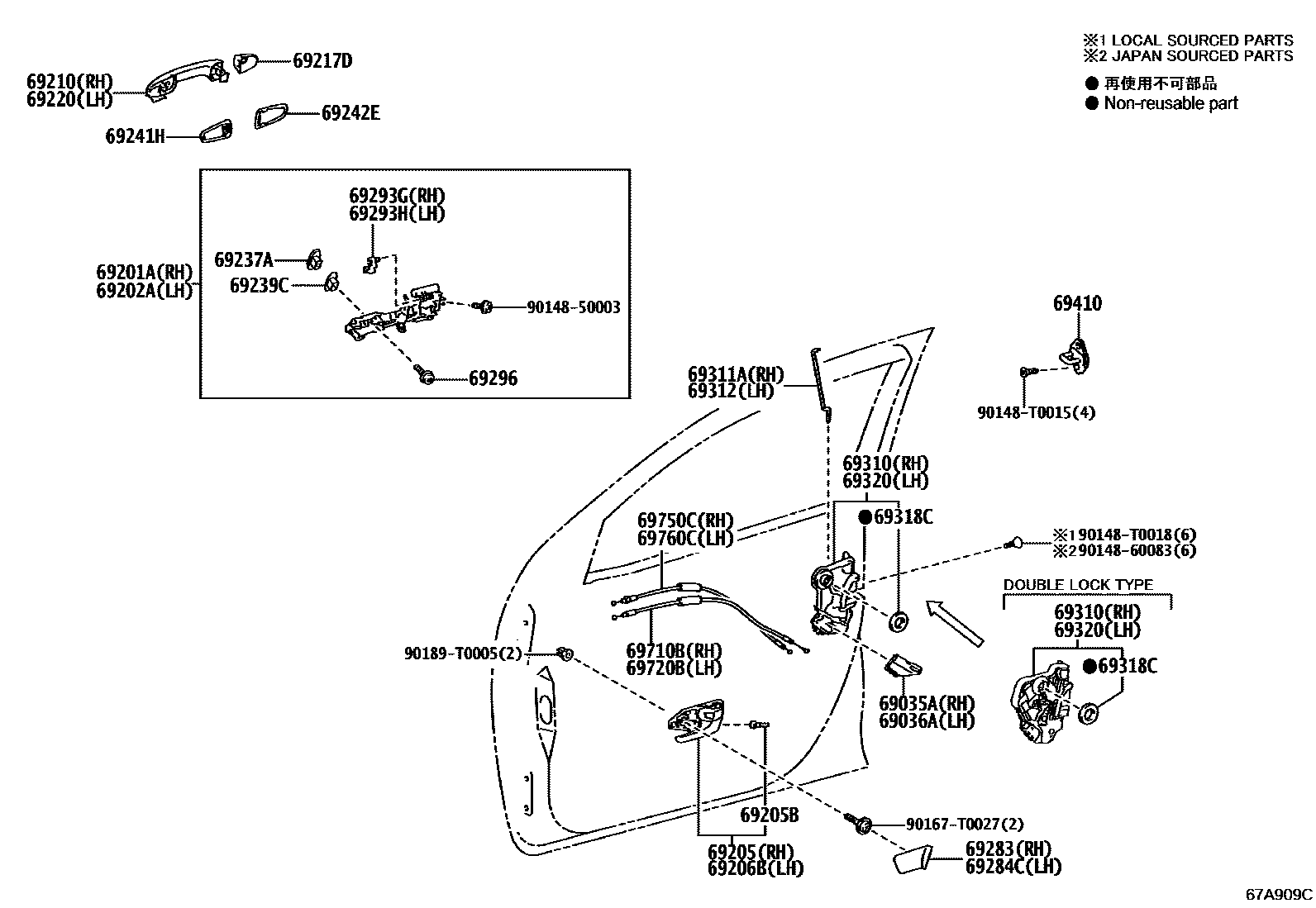

35 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota HILUX
This section contains 35 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota HILUX. Key components include: COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
