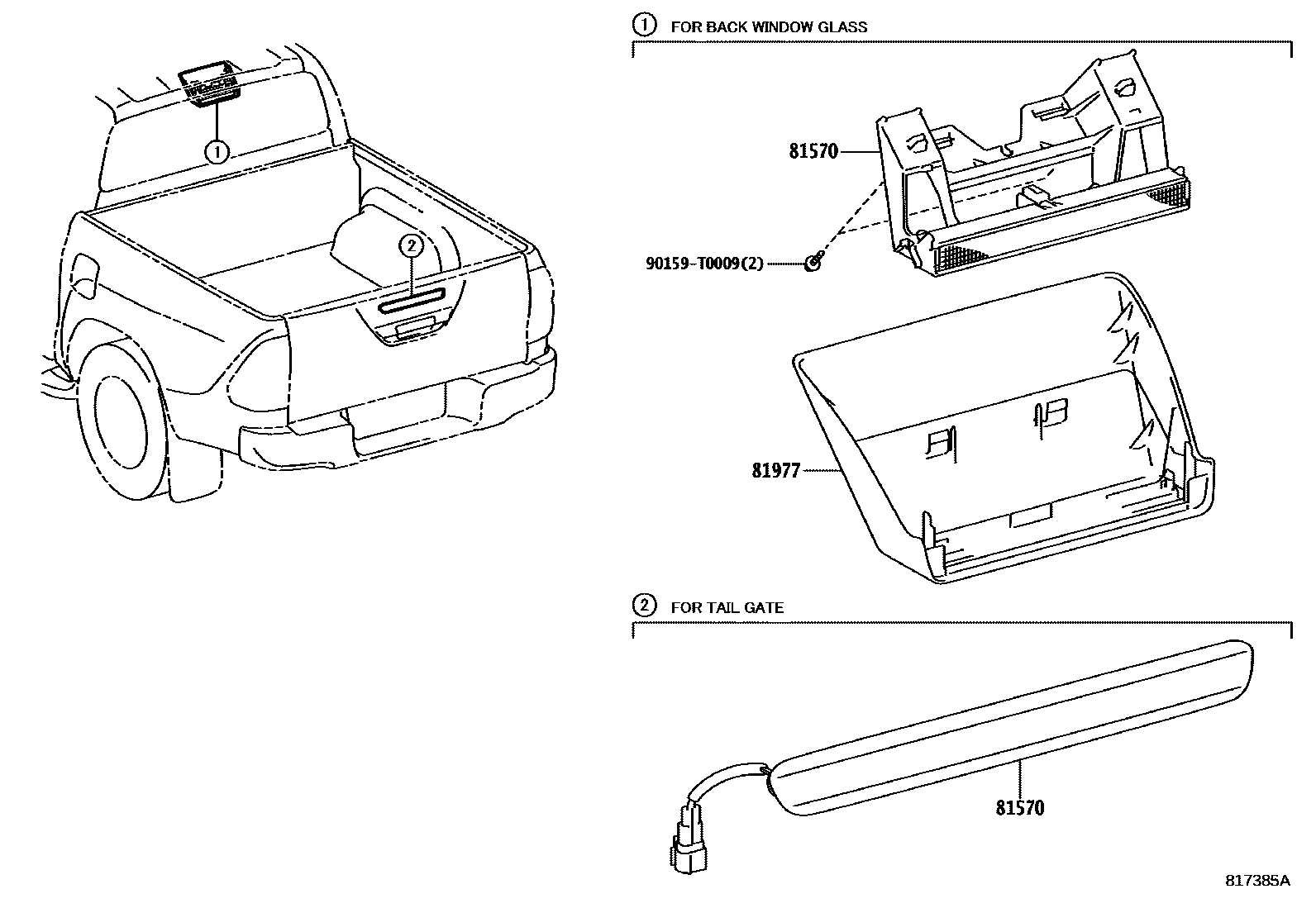

Toyota HILUX — CENTER STOP LAMP
81570LAMP ASSY, CENTER STOP
main81006-0K060iGUN126..ADC..M..LA;TGN136..ADC..X..LA;GUN125,135..ADC..LA;GUN126..ADC..6F..S..LA; TGN136..S..LA;GUN125..ASC..LA201505-201808
CHILE SPEC
main81570-0K100iGUN135..6FC..S..VN;GGN125,GUN112,122,126,KUN126..(M,S)..(GCC,PKN);GUN125,KUN112,122,125,TGN11#,120,121,126..(GCC,PH)..CBU; TGN136..M,X;GUN135..6F..S..VN;KUN125..GEN,IDN,LA,SA;GUN125..(ADC,TDC)..LA;GUN122..(ARL,GEN,TH)..CBU;KUN126..(ADC,SDC,TDC)..5FC;TGN136..RHD..(SDC,TDC,TXT);KUN126..(ADC,SSC,SXT,TDC)..6F;GUN135..LHD..(H,L,M)..(GEN,VN);GUN135..(ARL,BZAGT,KEN,LA,MA,PH,SA,TH)..CBU;GUN122,126,KUN126..RHD..(H,X)..(PKN,SA)..CBU;GUN125..(ARL,BZAGT,GEN,IDN,KEN,MA,SA,TH,VN)..CBU;GGN12#,135,GUN112,120,123,126,136,KUN122,13#,LAN125,TGN12#,138..(ARL,BZAGT,GEN,KEN,LA,MA,PH,SA,TAIW,TH,VN)..CBU201505-202105
HIGH MOUNT STOP LAMP-WITH(TAIL GATE)
81977COVER, CENTER STOP LAMP
main81952-0K010iGUN125..TSC..LA; GUN126..TDC..M..LA;TGN136..TDC..X..LA;GUN125,126,135..TDC..6F..(S,X)..LA201505-201806
CHILE SPEC
90159T0009
main90159-T0009
3 parts on this diagram · 1 diagram in section
CENTER STOP LAMP for Toyota HILUX
This section contains 3 genuine Toyota parts for the CENTER STOP LAMP system of the Toyota HILUX. Key components include: LAMP ASSY, CENTER STOP, COVER, CENTER STOP LAMP.
