Toyota HILUX — WINDSHIELD WASHER

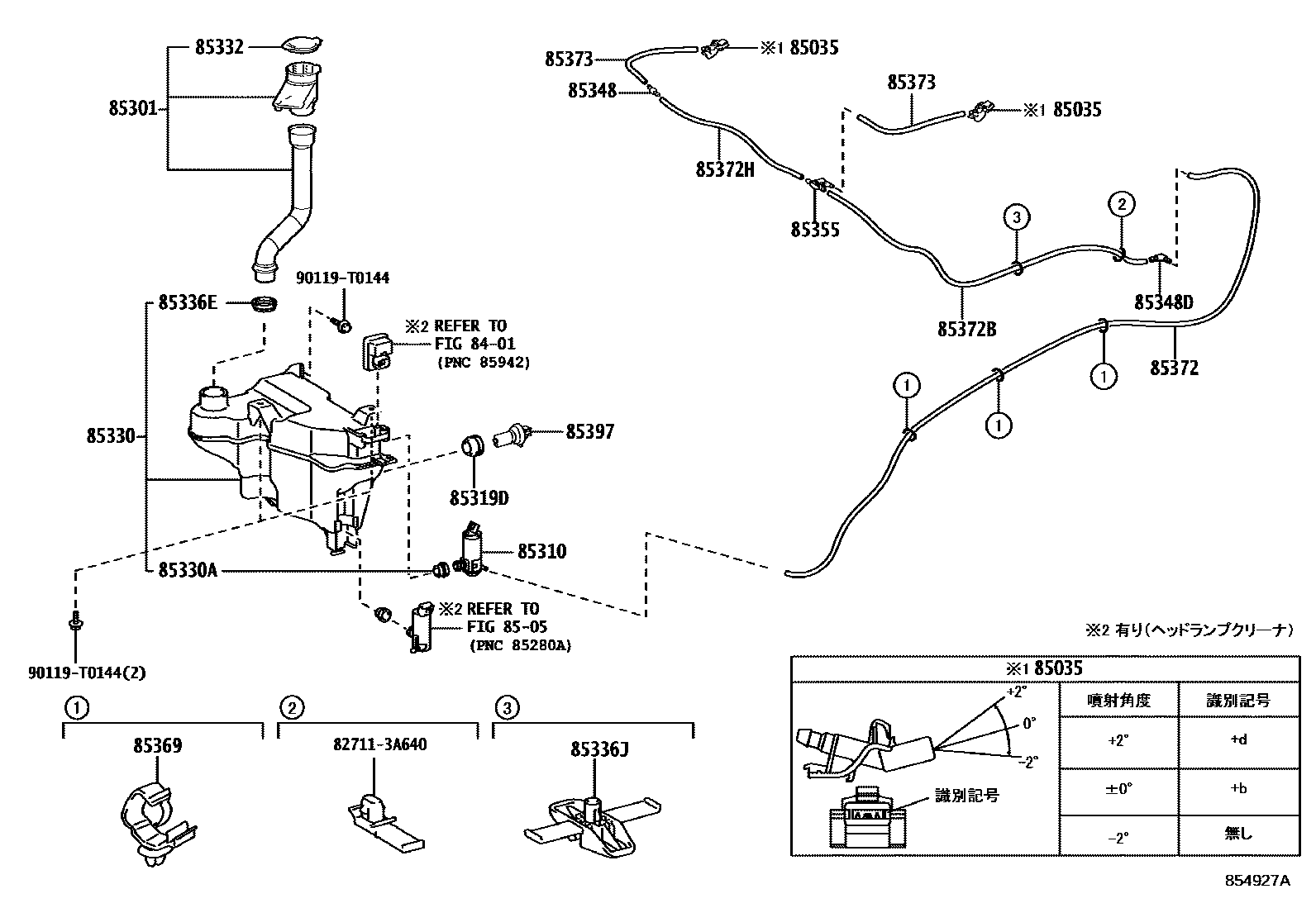

Parts diagram
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85035NOZZLE SUB-ASSY, WASHER
main85381-0K070×2i202208-202307
main85381-0K080×2i202208-202307
main85381-0K090×2i202208-202307
8505HEADLAMP CLEANER
→ Go to FIG 85-05
85301INLET SUB-ASSY, WASHER
main85301-0K111i202208-202307
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-0K021i202208-202307
85319DPACKING, FRONT WASHER
main85319-33230i202208-202307
85330JAR ASSY, WINDSHIELD WASHER
main85315-0K420supersedes 85355-0K040i202208-202307
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i202208-202307
85332CAP, WINDSHIELD WASHER JAR
main85316-YE011i202208-202307
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160i202208-202307
85336JPROTECTOR, WASHER JAR
main85372-0K020i202208-202307
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-06101i202208-202307
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85377-0D040i202208-202307
85355VALVE, WINDSHIELD WASHER HOSE
main85321-0A010i202212-202307
main85321-28020i202208-202212
85369CLAMP
main82711-0K070×3i202208-202307
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-33278i202208-202307
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90068-33296i202208-202307
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90068-33258i202208-202307
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90068-33251×2i202208-202307
85397SWITCH ASSY,LEVEL WARNING
main85397-30400i202208-202307
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
90119T0144
main90119-T0144

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota HILUX

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
