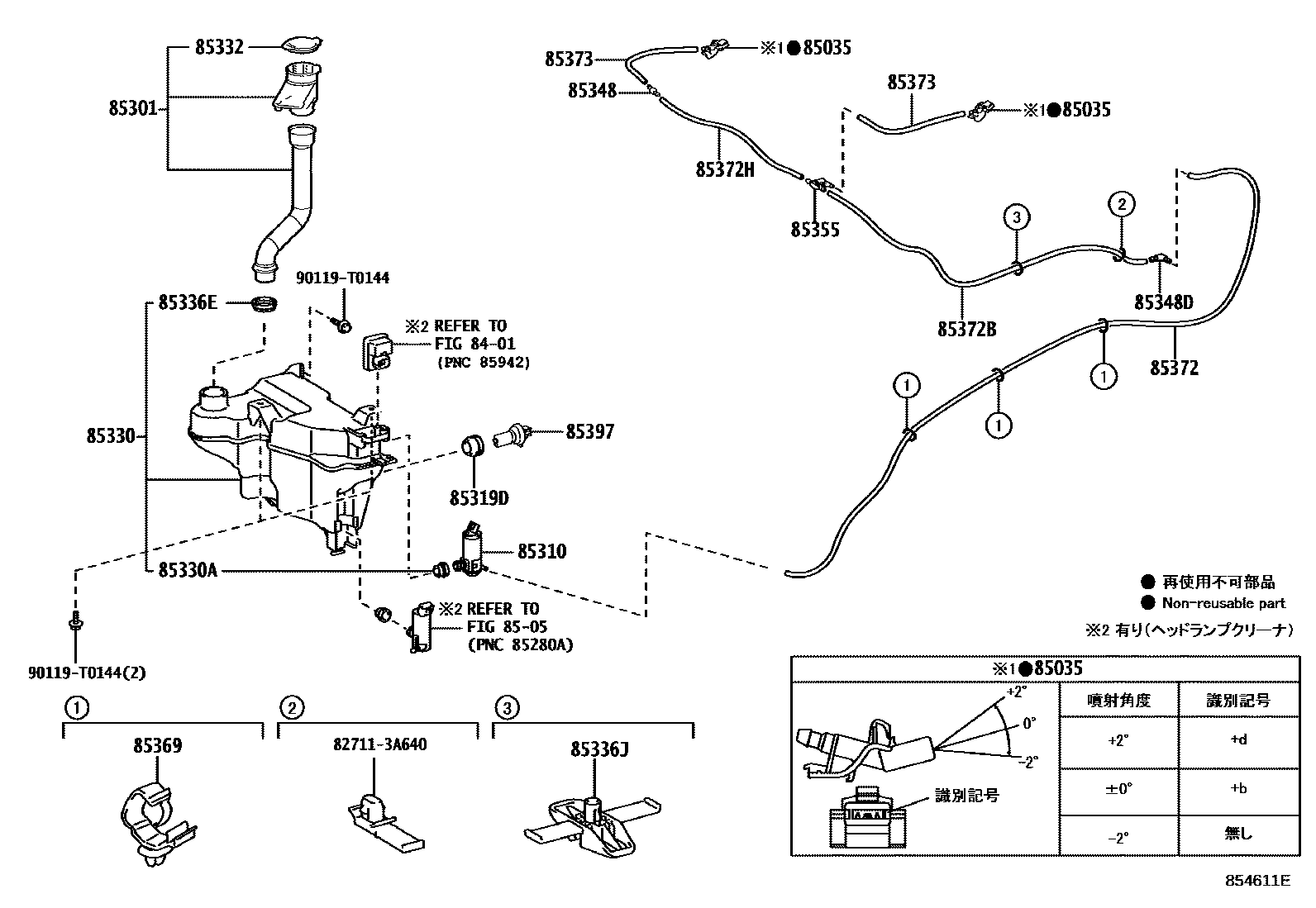

Toyota HILUX — WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85035NOZZLE SUB-ASSY, WASHER

main85381-0K070×2i202108-202207

main85381-0K080×2i202108-202207

main85381-0K090×2i202108-202207

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-0K111i202108-202207

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K021i202108-202207

85319DPACKING, FRONT WASHER

main85319-33230i202108-202207

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K420supersedes 85355-0K040i202108-202207

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202108-202207

85332CAP, WINDSHIELD WASHER JAR

main85316-YE011i202108-202207

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i202108-202207

85336JPROTECTOR, WASHER JAR

main85372-0K020i202108-202207

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-06101i202108-202207

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-0D040i202108-202207

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0A010i202203-202207

main85321-28020i202108-202203

85369CLAMP

main82711-0K070×3i202108-202207

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33278i202108-202207

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33296i202108-202207

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33258i202108-202207

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33251×2i202108-202207

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i202108-202207

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

90119T0144

main90119-T0144

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota HILUX

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
