Toyota HILUX — WINDSHIELD WASHER

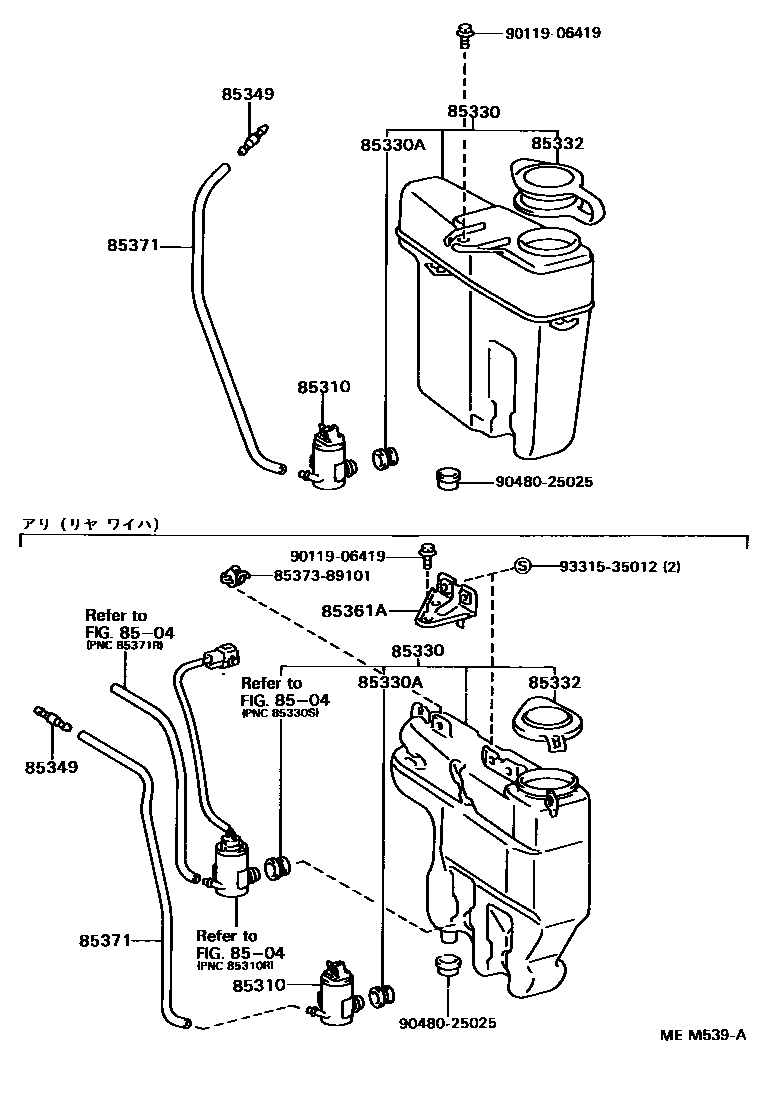

Parts diagram

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198809-199208

main85330-35040i199208

85330JAR ASSY, WINDSHIELD WASHER

main85315-35030i199108-199511

main85331-89136i198809-199108

main85331-89141i198904-199108

85330ABUSH, WINDSHIELD WASHER JAR

main88335-14020i199111-199308

main90099-32089i198809

85332CAP, WINDSHIELD WASHER JAR

main85332-12650i199108-199511

main85332-89133i198809-199108

main85332-89134i198904-199108

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i198809

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-89135i198904-198908

main85361-89137i198908-199108

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i198809-199108

main90446-07001i198904-199108

8537389101HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-89101

9011906419

main90119-06419

9048025025

main90480-25025

9331535012

main93315-35012

12 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota HILUX

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
