Toyota HILUX — WINDSHIELD WASHER

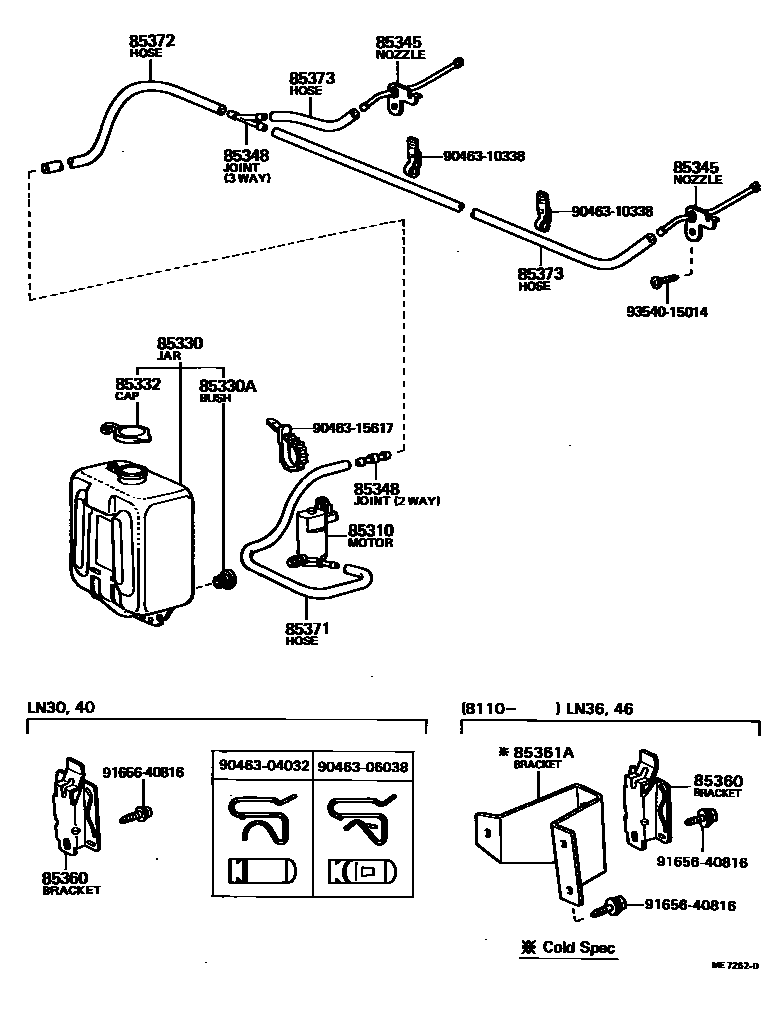

Parts diagram
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-20100i197808-198809
12V
main85310-22080i198110-198809
W/COOLER,COLD SPEC
main85310-25010i197912-198110
24V
85330JAR ASSY, WINDSHIELD WASHER
main85330-89104i197808-198809
main85331-89101i198110-198809
W/COOLER,COLD SPEC
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i197808-198809
85332CAP, WINDSHIELD WASHER JAR
main85033-36120i198110-198809
W/COOLER,COLD SPEC
main85332-30050i197808-198809
85345NOZZLE, WINDSHIELD WASHER
main85341-89104×2i197808-198809
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85355-14010i197808-198809
3-WAY
main85355-87201×2i197808-198809
2-WAY
85360BRACKET ASSY, WINDSHIELD WASHER
main16611-95110i198112-198809
main53752-12030i197912-198110
12V
main53752-89101i198110-198112
main85361-89103i198110-198809
W/COOLER,COLD SPEC
85361ABRACKET, WINDSHIELD WASHER, NO.1
main74465-89102i198110-198310
COLD SPEC
main85362-89101i198110-198809
W/COOLER,COLD SPEC
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-06013i197808-198809
main90446-06051i198110-198809
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90446-06013i197912-198110
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90446-06013i197808-198809
9046304032
main90463-04032
9046306038
main90463-06038
9046310338
main90463-10338
9046315617
main90463-15617
9165640816
main91656-40816
9354015014
main93540-15014

17 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota HILUX

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: WIRE, WINDSHIELD WASHER MOTOR, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
