Toyota HILUX — TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-0K020i202108-202207

main04362-71170i202108-202207

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36100TRANSFER ASSY

main36100-0K460i202108-202207

main36100-71460i202108-202207

3 parts on this diagram · 1 diagram in section

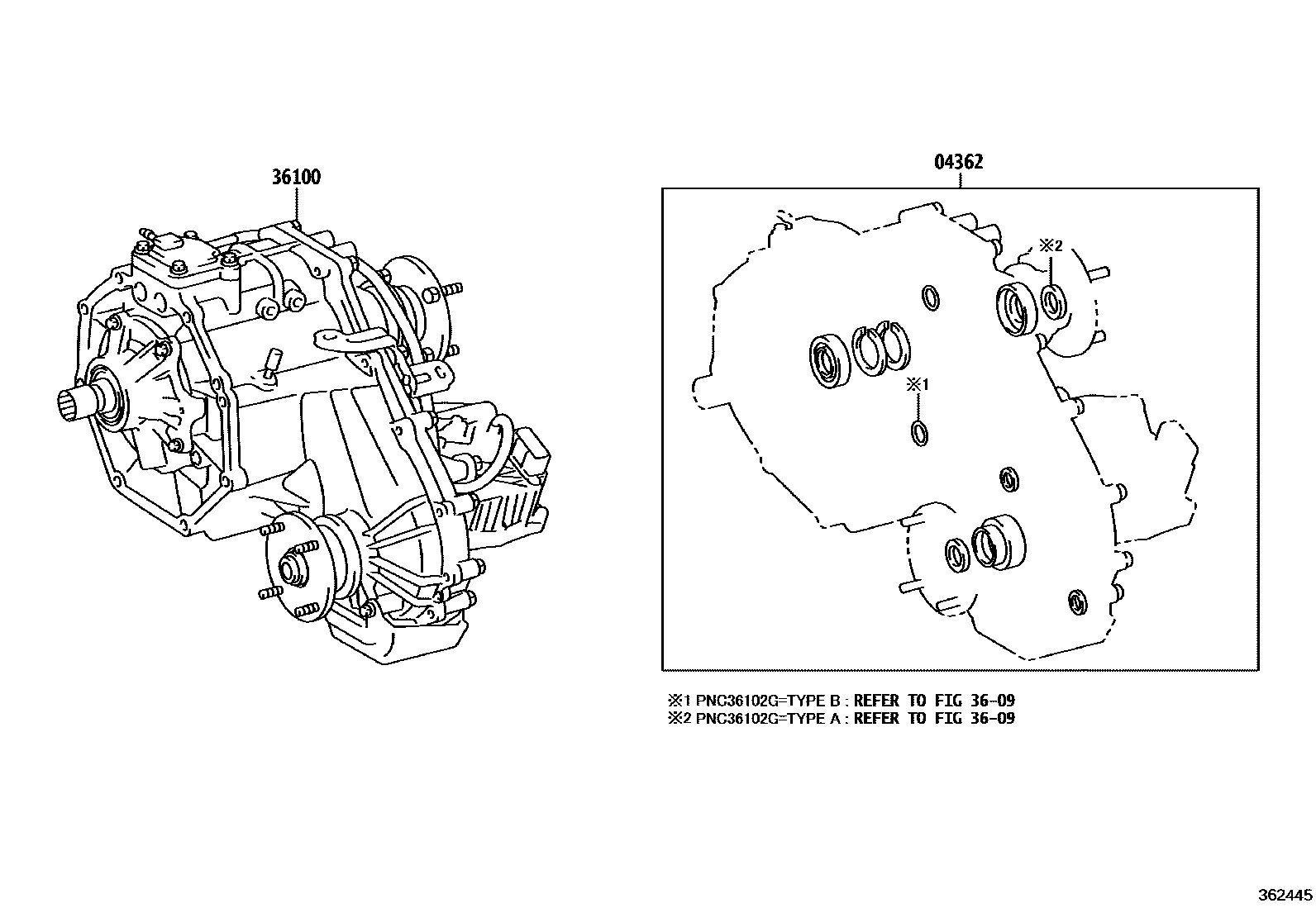

TRANSFER ASSEMBLY & GASKET KIT for Toyota HILUX

This section contains 3 genuine Toyota parts for the TRANSFER ASSEMBLY & GASKET KIT system of the Toyota HILUX. Key components include: GASKET KIT, TRANSFER OVERHAUL, TRANSFER CASE & EXTENSION HOUSING, TRANSFER ASSY.
