Toyota HILUX — TRANSFER ASSEMBLY & GASKET KIT

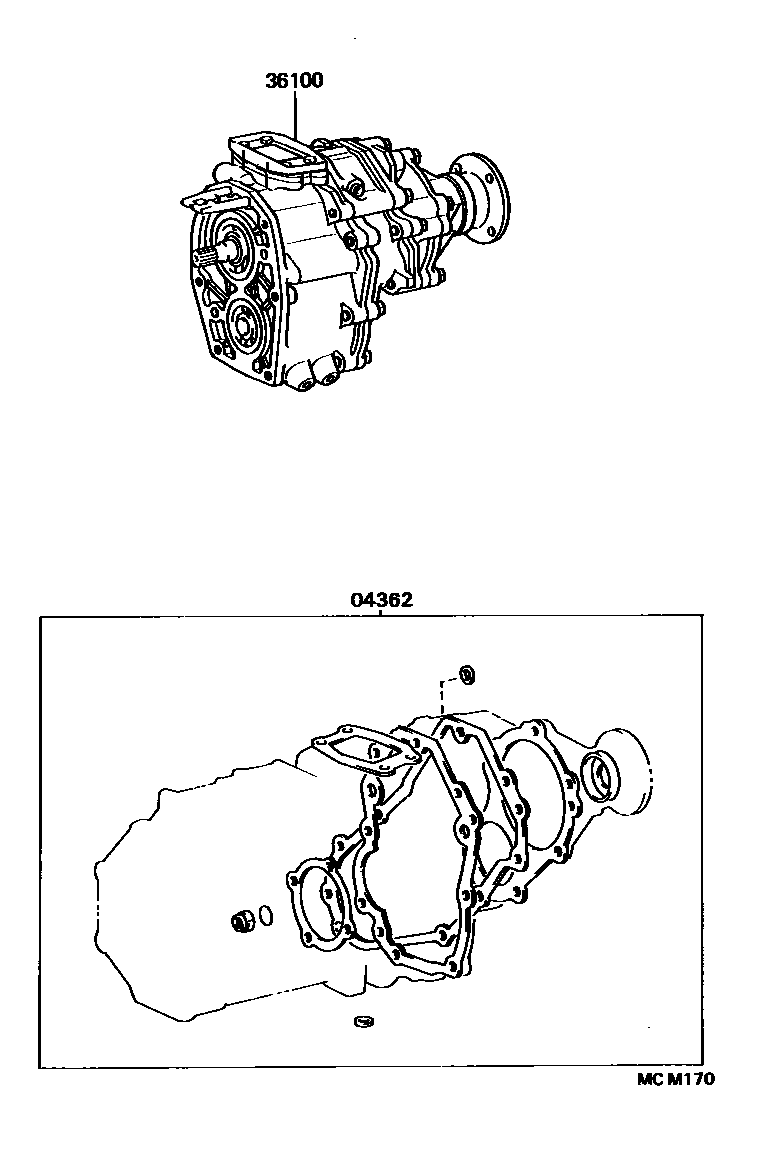

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-35020i198904-199511

main04362-35030i199008-199511

main04362-35040i198809-199401

main04362-35041i199401-199708

main04362-35050i198904-199601

main04362-35060i199601-199708

36100TRANSFER ASSY

main36100-34050i199508-199601

main36100-35320i198809-199108

main36100-35321i199108

main36100-35400i198904-199008

main36100-35401i199008-199108

main36100-35420i198904-199008

main36100-35421i199008-199108

main36100-35500i199008-199108

main36100-35520i199008-199108

main36100-35590i199108-199511

main36100-35610i199108-199308

main36100-35650i199108-199601

main36100-35730i199108-199601

main36100-35740i199408-199601

main36100-35780i199308-199511

main36100-35790i199308-199511

main36100-35830i199508-199601

main36100-35840i199601

main36100-35850i199601

main36100-35860i199601

main36100-35880i199601

main36100-35890i199601

2 parts on this diagram · 3 diagrams in section

TRANSFER ASSEMBLY & GASKET KIT for Toyota HILUX

This section contains 2 genuine Toyota parts for the TRANSFER ASSEMBLY & GASKET KIT system of the Toyota HILUX. Key components include: GASKET KIT, TRANSFER OVERHAUL, TRANSFER ASSY.
