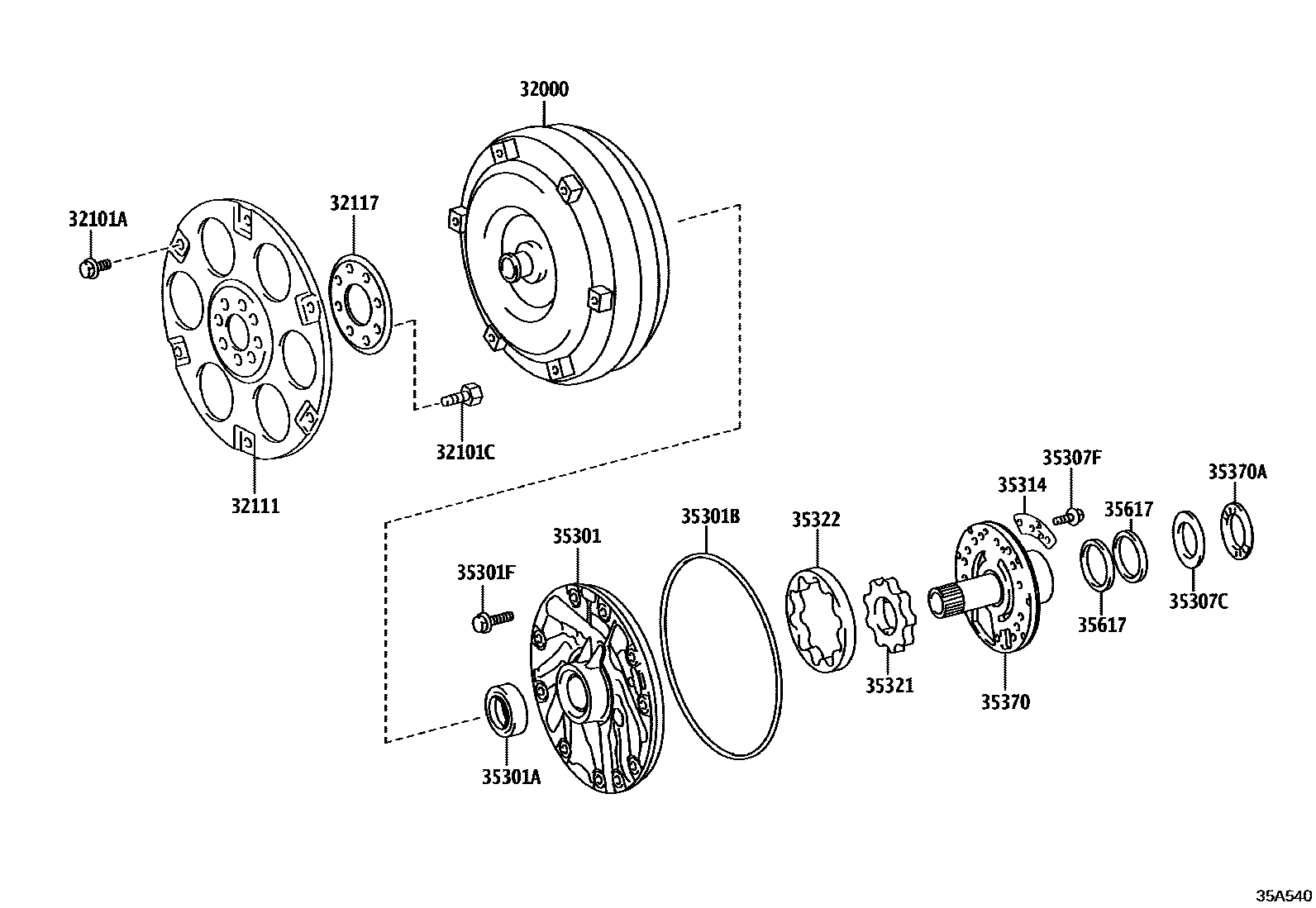

Toyota HILUX — TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-0K020i202006-202108

main32000-71040i202006-202108

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413×5i202006-202108

main90105-10546i202006-202108

main90105-T0237×5i202006-202108

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-13015×8i202104-202108

main90105-T0203×8i202104-202108

32111PLATE, PUMP IMPELLER DRIVE

main32111-0K030i202006-202108

main32111-71010i202006-202108

32117SPACER, DRIVE PLATE, REAR

main32117-60050i202006-202108

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-0K010i202006-202108

main35301-71010i202006-202108

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101i202006-202108

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010i202006-202108

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×10i202006-202108

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-71070i202006-202108

35307FBOLT (FOR STATOR SHAFT)

main90148-60079×10i202006-202108

main90148-T0024×10i202006-202108

35314PLATE, FRONT OIL PUMP

main35314-0K020i202006-202108

main35314-71020i202006-202108

35321GEAR, FRONT OIL PUMP DRIVE

main35321-0K010i202006-202108

main35321-71010i202006-202108

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-0K010i202006-202108

main35322-71010i202006-202108

35370SHAFT ASSY, STATOR

main35370-0K010i202006-202108

main35370-71010i202006-202108

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-71002i202006-202108

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030×2i202006-202108

17 parts on this diagram · 1 diagram in section

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) for Toyota HILUX

This section contains 17 genuine Toyota parts for the TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) system of the Toyota HILUX. Key components include: CONVERTER ASSY, TORQUE, BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING), BOLT, HEXAGON(FOR DRIVE PLATE SETTING), PLATE, PUMP IMPELLER DRIVE, SPACER, DRIVE PLATE, REAR.
