Toyota HILUX — SWITCH & RELAY & COMPUTER

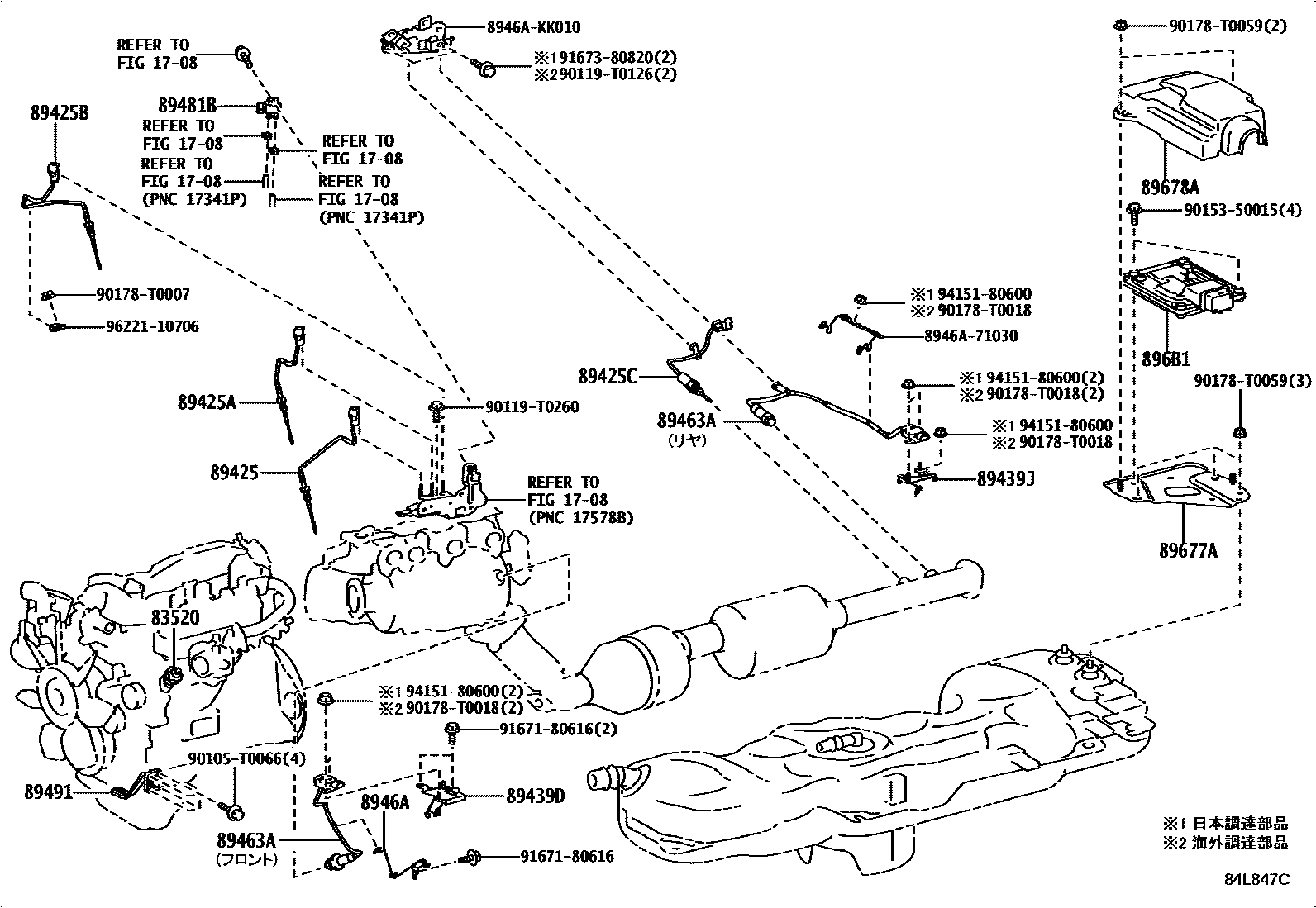

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060i202006-202108

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070i202006-202108

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080i202006-202108

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090i202006-202108

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-71060i202006-202108

89439DBRACKET, SENSOR, NO.1

main8946A-60020i202006-202108

89439JBRACKET, SENSOR, NO.2

main8946A-71020i202006-202108

89463ASENSOR, NITROGEN OXIDES

main89463-71010i202006-202108

main89463-71040i202006-202108

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-71010i202006-202108

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010i202006-202108

89491SENSOR, ENGINE OIL LEVEL

main89491-26190i202006-202108

89677ABRACKET, UREA PUMP CONTROL, NO.1

main89677-71010i202006-202108

89678ABRACKET, UREA PUMP CONTROL, NO.2

main89678-0K010i202006-202108

896B1COMPUTER, UREA PUMP CONTROL

main896B1-71040i202006-202108

8946A71030BRACKET, EXHAUST SENSOR CLAMP

main8946A-71030

8946AKK010BRACKET, EXHAUST SENSOR CLAMP

main8946A-KK010

90105T0066

main90105-T0066

90119T0126

main90119-T0126

90119T0260

main90119-T0260

9015350015

main90153-50015

90178T0007

main90178-T0007

90178T0018

main90178-T0018

90178T0059

main90178-T0059

9167180616

main91671-80616

9167380820

main91673-80820

9415180600

main94151-80600

9622110706

main96221-10706

28 parts on this diagram · 11 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota HILUX

This section contains 154 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota HILUX. Key components include: VACUUM PIPING, RELAY ASSY, STARTER, RELAY ASSY, STARTER, NO.2, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2.
