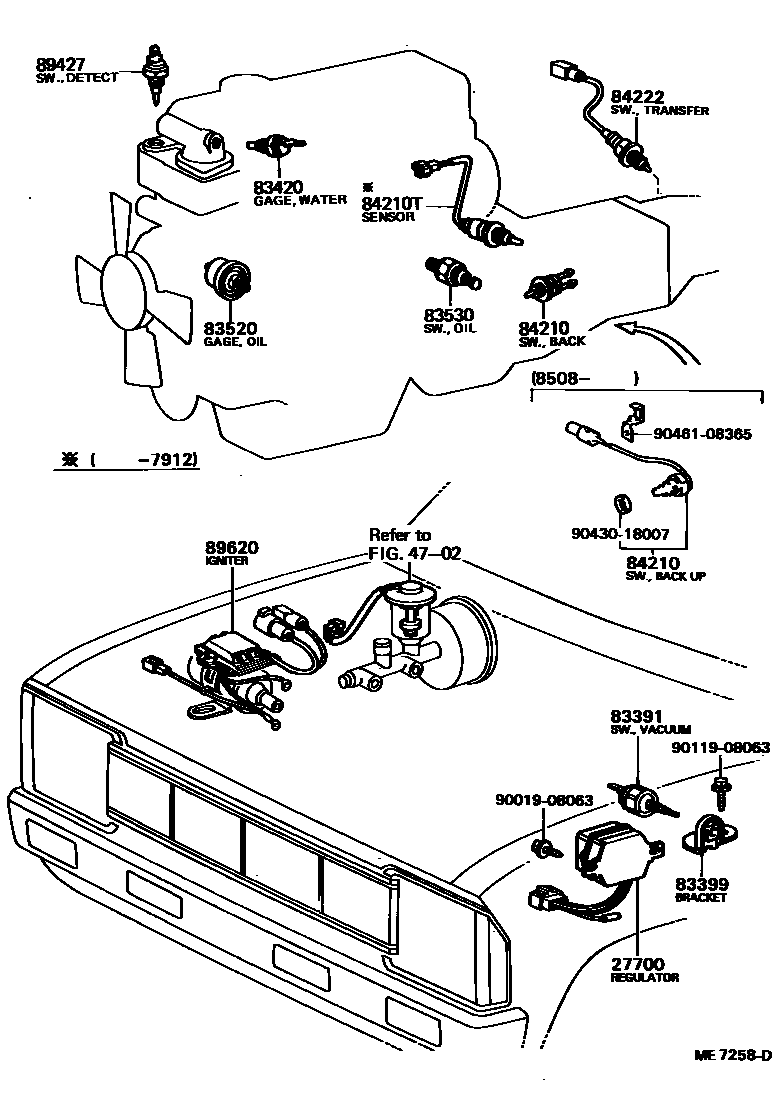

Toyota HILUX — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

27700REGULATOR ASSY, GENERATOR

main27700-13010iL,12RJ,18RJ..LN30,40,RN3#,4#197808-198110

12V

sub27700-36020

main27700-13050iL,12RJ,18RJ,2L..LN3#,4#,RN3#,45198110-198809

12V

main27700-56050iL..LN30,40197912-198110

24V

sub27700-57020

4702

83391SWITCH, VACUUM

main83391-14010iRN3#,45198110-198809

83399BRACKET, VACUUM SWITCH

main83399-20070iRN3#,45198110-198809

sub83399-27040

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iLN3#,4#,RN3#,4#197912-198809

DENSO

main83420-20011iRN3#,40197808-197912

main83420-20020iLN3#,4#,RN3#,4#197912-198809

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-55011iRN36,39197910-198310

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iLN3#,4#,RN3#,45198202-198502

main83530-14030iLN4#,RN35,45198502-198809

sub83530-28030

main83530-36011iLN3#,4#,RN3#,4#197808-198202

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10060iLN3#,4#197912-198206

main84210-26010iRN3#,4#197808-198311

main84210-26020iRN35,45198311-198508

main84210-35010iLN36,46198208-198302

main84210-35020iLN30,40198208-198401

sub84210-16021

main84210-60021iLN40198401-198508

84210TSENSOR ASSY, SHIFT POINT

main84220-35011iRN30,40..4F197808-197912

main84220-35040iRN30,40..4H197808-197912

sub84220-35020

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35011iLN36,46,RN36,39197910-198202

main84222-35012iLN36,46,RN39198202-198310

89427SWITCH, TEMPERATURE DETECT

main89428-12030iRN30,40197808-197912

main89428-28020iRN33,35,4#197912-198809

89620IGNITER ASSY

main89620-35130iRN3#,45198110-198809

sub89620-14H93

9001908063

main90019-08063

9011908063

main90119-08063

9043018007

main90430-18007

9046108365

main90461-08365

16 parts on this diagram · 6 diagrams in section
