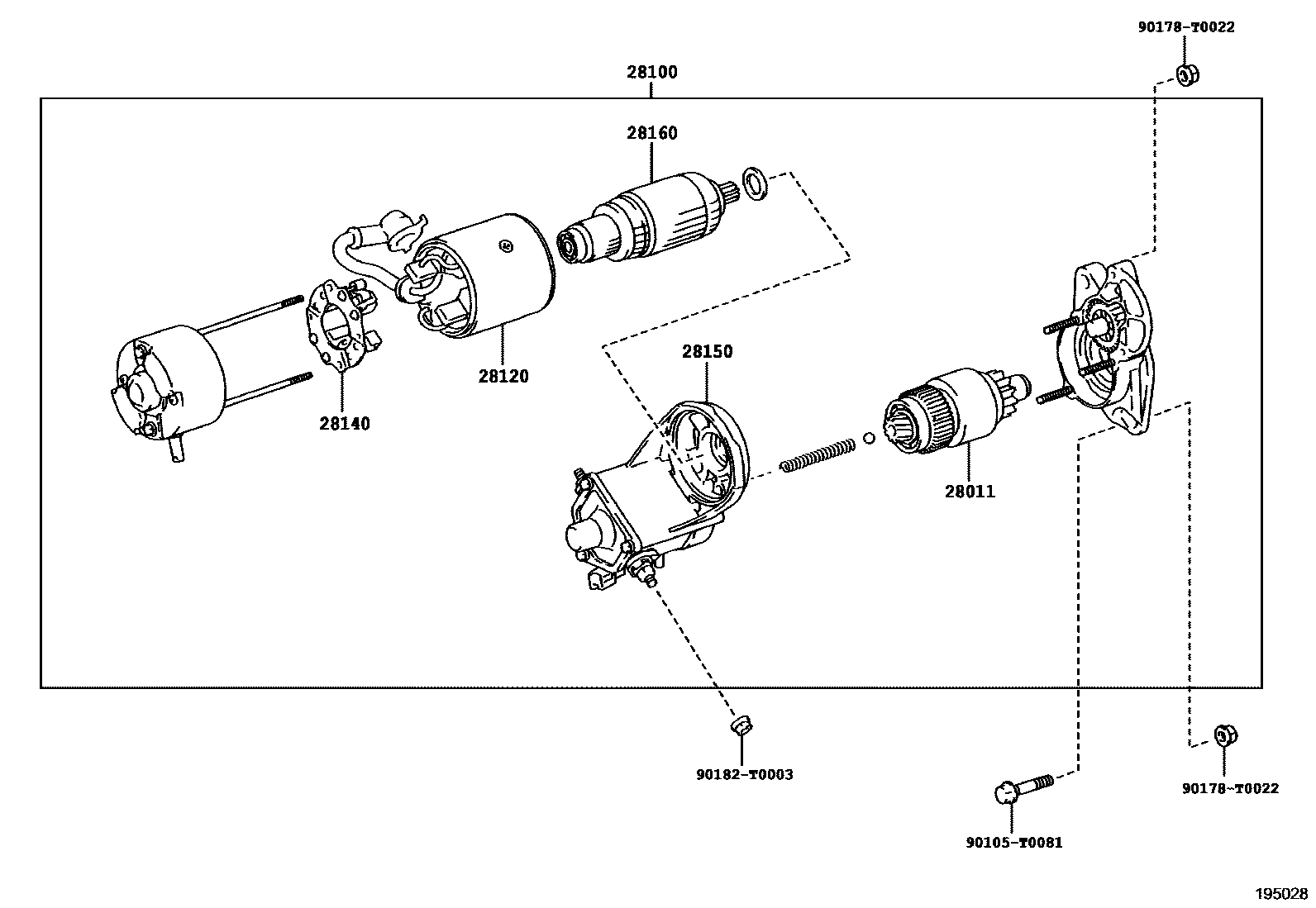

Toyota HILUX — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i201708-202005

28100STARTER ASSY

main28100-0L052i201708-202005

28120YOKE ASSY, STARTER

main28120-0L050i201708-202005

28140HOLDER ASSY, STARTER BRUSH

main28140-77090i201708-202005

28150SWITCH ASSY, MAGNET STARTER

main28150-0L050i201708-202005

28160ARMATURE ASSY, STARTER

main28160-54140i201708-202005

90105T0081

main90105-T0081

90178T0022

main90178-T0022

90182T0003

main90182-T0003

9 parts on this diagram · 1 diagram in section

STARTER for Toyota HILUX

This section contains 9 genuine Toyota parts for the STARTER system of the Toyota HILUX. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH, SWITCH ASSY, MAGNET STARTER.
