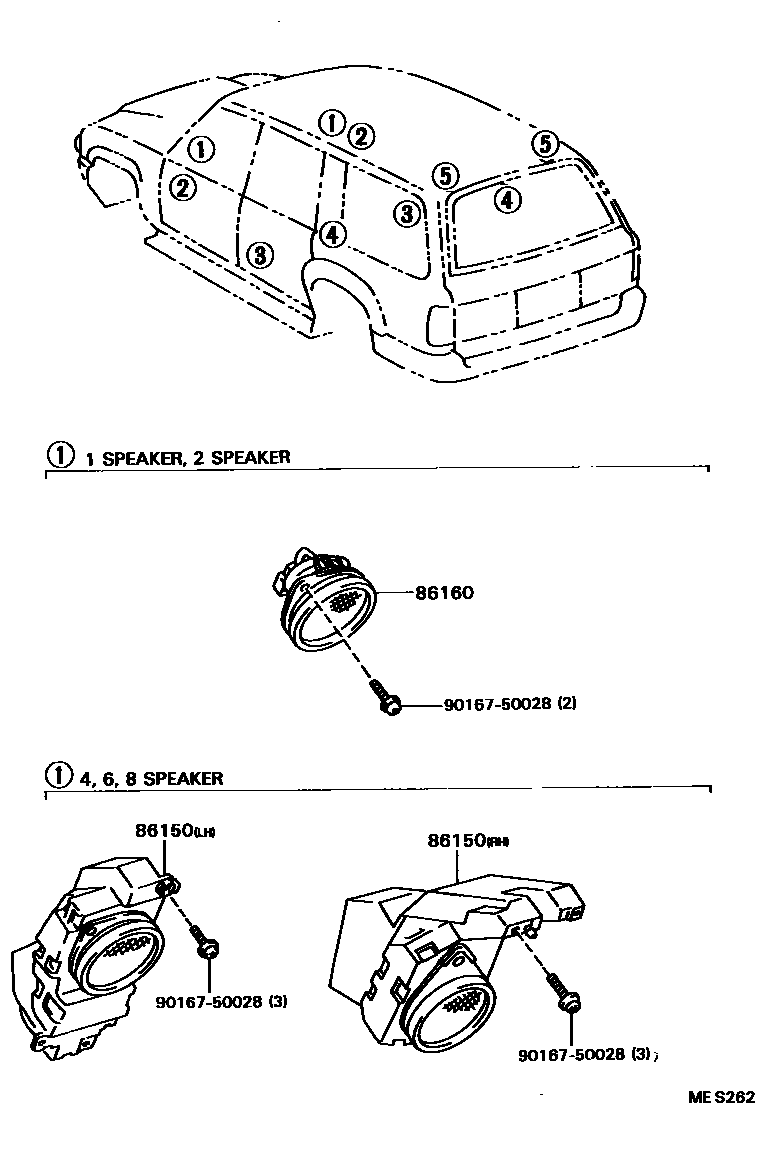

Toyota HILUX — SPEAKER
86150SPEAKER ASSY, W/BOX, NO.1
main86150-35030iLN108,131..SR,SSRX;KZN130,LN107,109,112,130,VZN130,YN107..(SSR,SSRX)..(DSL,EFI,TDE)199108
main86150-35050iLN108,131..SR,SSRX;KZN130,LN107,109,112,130,VZN130,YN107..(SSR,SSRX)..(DSL,EFI,TDE)199108
86160SPEAKER ASSY, FRONT NO.1
main86160-35080iKZN130,LN100,106,107,108,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD; LN100,106,107,108,131,8#,YN10#,8#..DLX,SDX,SR,SSR,STD199108-199708
9016750028
main90167-50028
3 parts on this diagram · 2 diagrams in section
SPEAKER for Toyota HILUX
This section contains 12 genuine Toyota parts for the SPEAKER system of the Toyota HILUX. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, ROOF, WIRING SUB-ASSY, SPEAKER, RR.
