Toyota HILUX — ROOF PANEL & BACK PANEL

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63135-KK010i202006-202010

main63135-KK050i202010-202108

63111PANEL, ROOF

main63111-KK010i202006-202108

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK900i202006-202108

63137ABRACKET, DOME LAMP, NO.1

main63137-KK010i202006-202108

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-KK020i202006-202108

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-KK010i202006-202108

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-KK010i202006-202108

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK010i202006-202010

main63145-KK030i202010-202108

64111APANEL, BACK

main64101-KK090i202006-202108

64147DPLATE, BACK PANEL CORNER, UPPER

main64147-KK010i202006-202108

64810WINDOW ASSY, BACK

main64801-0K111i202006-202108

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-KK040i202006-202108

64818SPACER, BACK WINDOW GLASS

main64818-0K090i202006-202108

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-0K110i202006-202108

64827DCLIP, BACK WINDOW GLASS

main64827-0K110i202006-202108

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-0K080i202006-202108

90105T0135

main90105-T0135

90119T0208

main90119-T0208

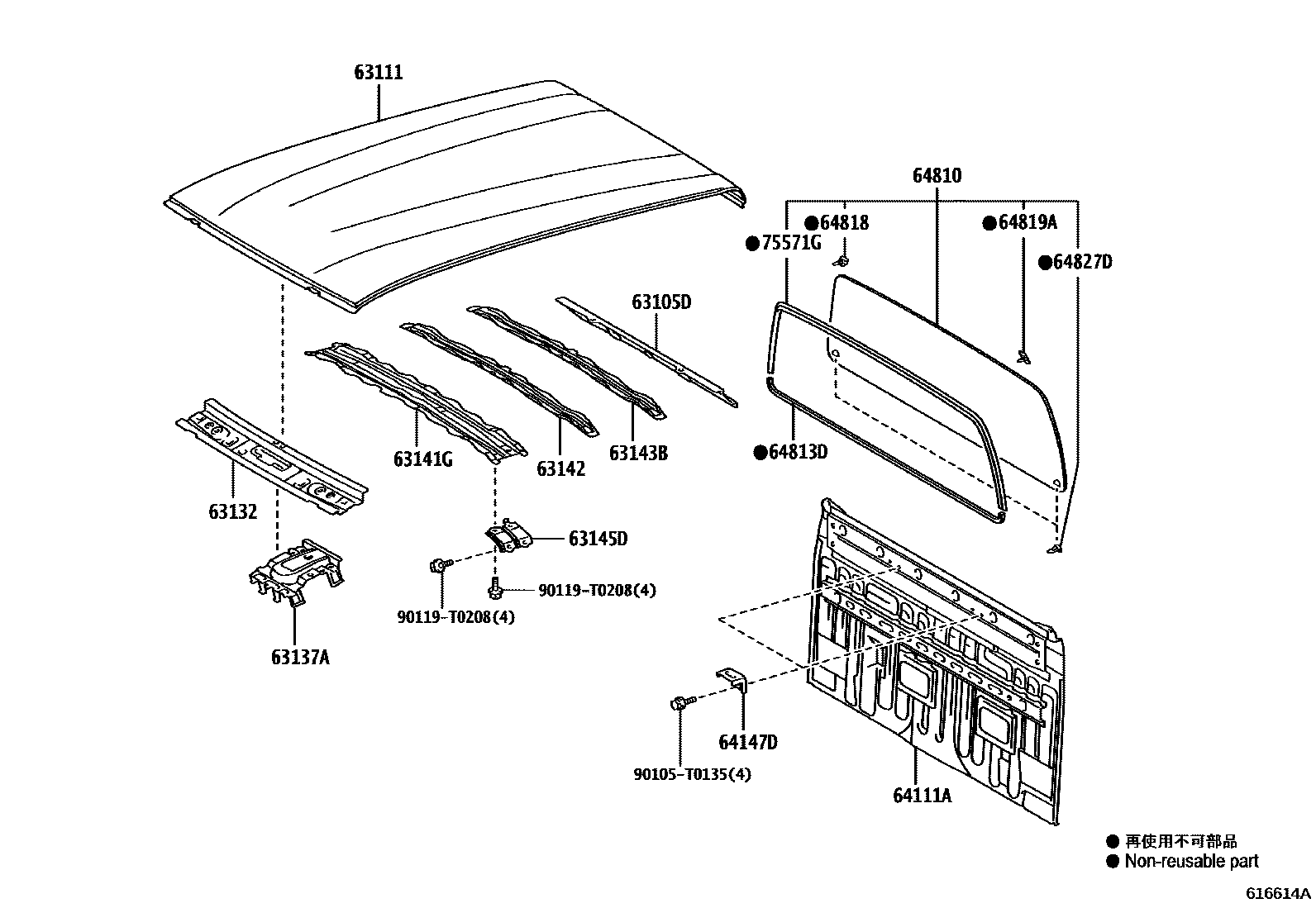

18 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota HILUX

This section contains 18 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HILUX. Key components include: FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, BRACKET, DOME LAMP, NO.1, REINFORCEMENT, ROOF PANEL, NO.1.
