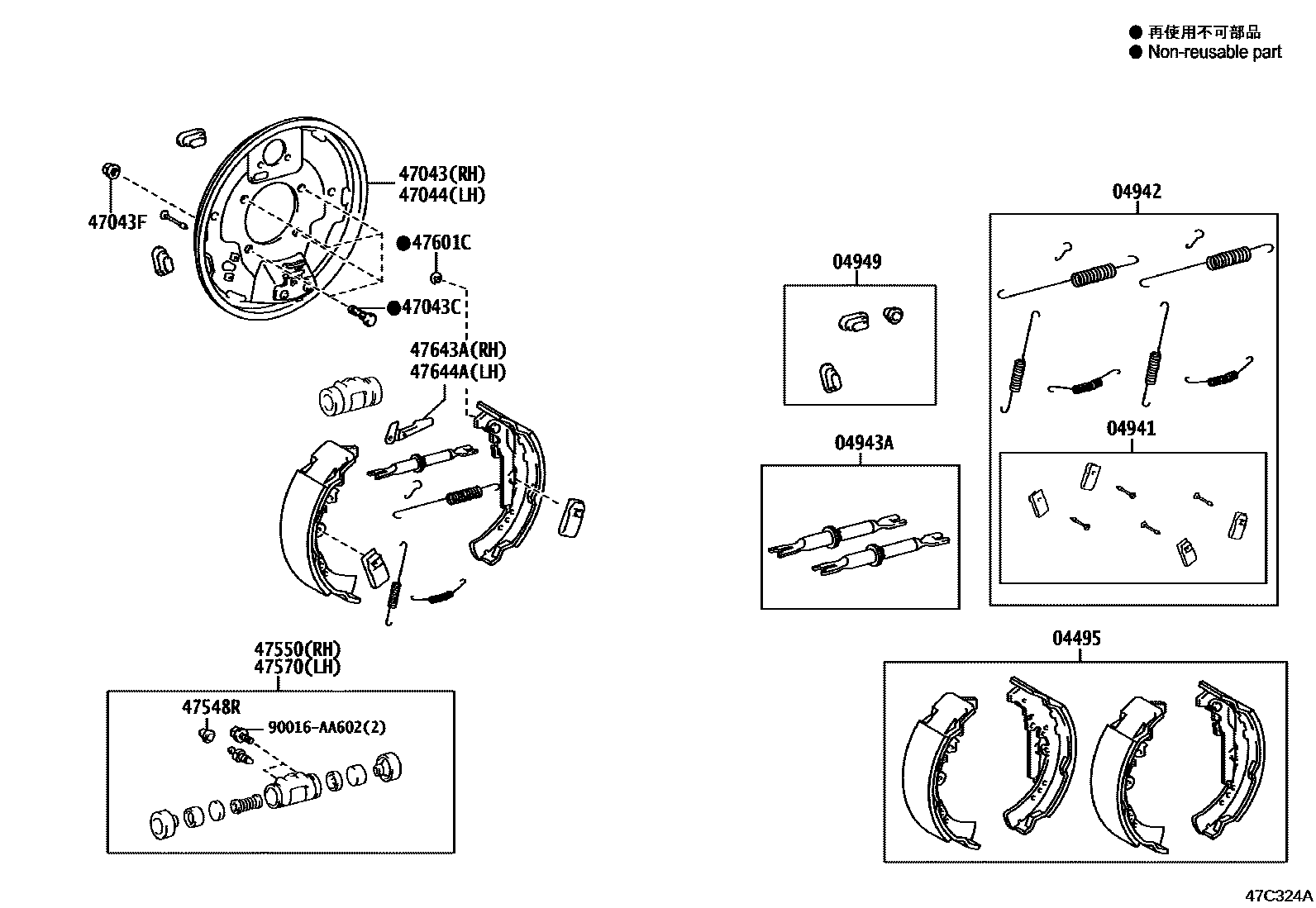

Toyota HILUX — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0K120i202006-202108

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0K030i202006-202108

04942SPRING KIT, REAR BRAKE

main04942-0K130i202006-202108

04943ASTRUT KIT, REAR BRAKE

main04943-0K030i202006-202108

04949PLUG KIT, REAR BRAKE

main04949-0K130×2i202006-202108

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K130i202006-202108

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-T0011×8i202006-202108

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-T0077×8i202006-202108

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K130i202006-202108

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0K030×2i202006-202108

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09070i202006-202108

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09070i202006-202108

47601CWASHER, C(FOR REAR BRAKE)

main90016-AD501×2i202006-202108

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0K050i202006-202108

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0K050i202006-202108

90016AA602

main90016-AA602

16 parts on this diagram · 1 diagram in section

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE for Toyota HILUX

This section contains 16 genuine Toyota parts for the REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE system of the Toyota HILUX. Key components include: SHOE KIT, REAR BRAKE, SPRING KIT, REAR BRAKE SHOE HOLD DOWN, SPRING KIT, REAR BRAKE, STRUT KIT, REAR BRAKE, PLUG KIT, REAR BRAKE.
