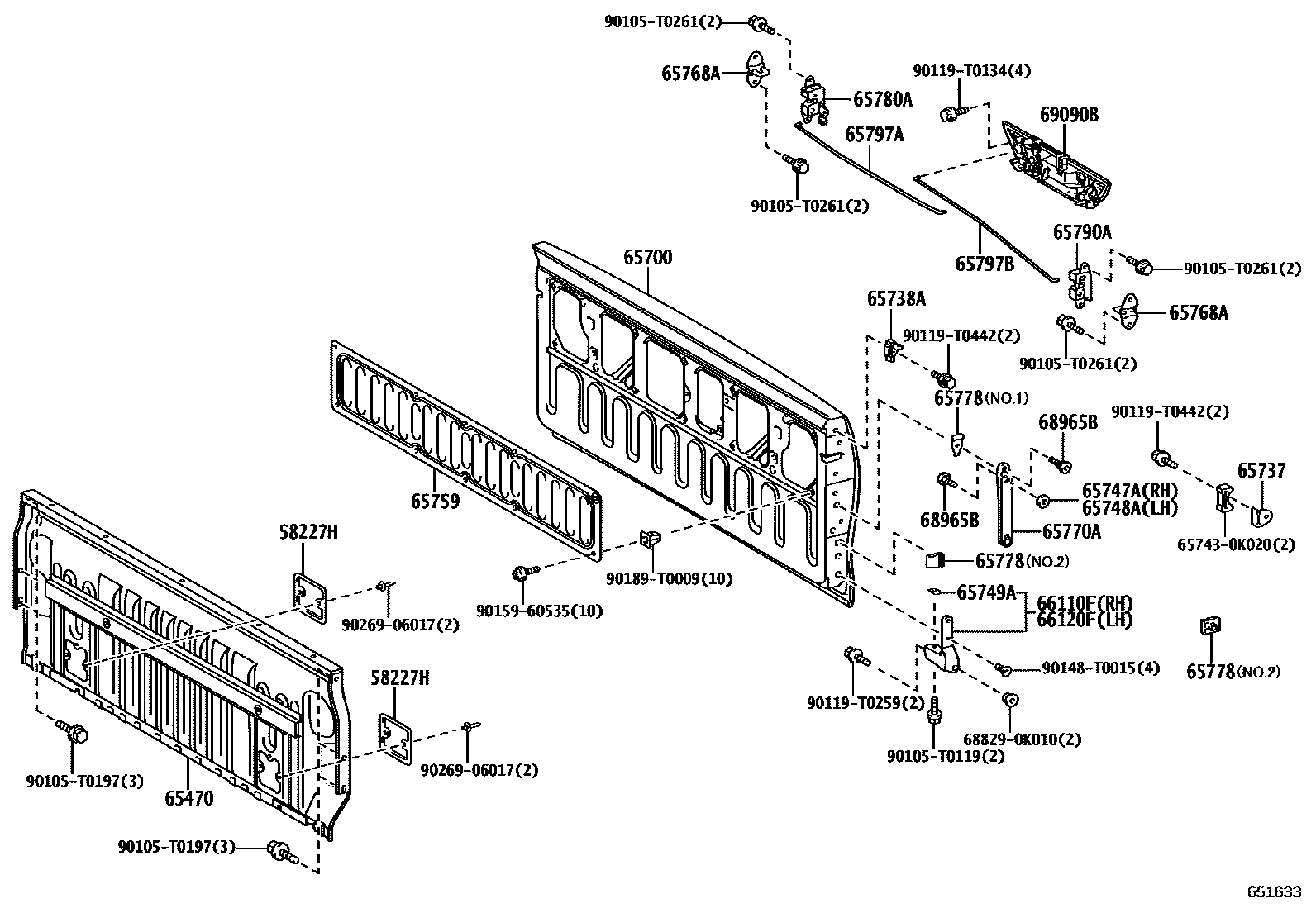

Toyota HILUX — REAR BODY GUARD FRAME & TAIL GATE
58227HCOVER, HEADER PANEL, NO.1
65470BOARD ASSY, HEADER
65700GATE ASSY, REAR BODY TAIL
65737STOP, TAIL GATE
65738ASTOPPER, TAIL GATE LOCK HINGE, NO.1
65747APLATE, TAIL GATE SEAL, RH
65748APLATE, TAIL GATE SEAL, LH
65749APAD, TAIL GATE HINGE
65759COVER, TAIL GATE SERVICE HOLE
65768ASTRIKER, TAIL GATE LOCK
65770ASTAY ASSY, TAIL GATE
65778STOPPER, TAIL GATE STAY
65780ALOCK ASSY, TAIL GATE, RH
65790ALOCK ASSY, TAIL GATE, LH
65797ALINK, TAIL GATE LOCK CONTROL
65797BLINK, TAIL GATE LOCK CONTROL
66110FHINGE ASSY, TAIL GATE, RH
66120FHINGE ASSY, TAIL GATE, LH
68965BSHAFT, TAIL GATE STAY
69090BHANDLE ASSY, TAIL GATE
657430K020
main65743-0K020
688290K010COLLAR, BACK DOOR HINGE
main68829-0K010
90105T0119
main90105-T0119
90105T0197
main90105-T0197
90105T0261
main90105-T0261
90119T0134
main90119-T0134
90119T0259
main90119-T0259
90119T0442
main90119-T0442
90148T0015
main90148-T0015
9015960535
main90159-60535
90189T0009
main90189-T0009
9026906017
main90269-06017
32 parts on this diagram · 1 diagram in section
REAR BODY GUARD FRAME & TAIL GATE for Toyota HILUX
This section contains 32 genuine Toyota parts for the REAR BODY GUARD FRAME & TAIL GATE system of the Toyota HILUX. Key components include: COVER, HEADER PANEL, NO.1, BOARD ASSY, HEADER, GATE ASSY, REAR BODY TAIL, STOP, TAIL GATE, STOPPER, TAIL GATE LOCK HINGE, NO.1.
