Toyota HILUX — REAR BODY ASSEMBLY

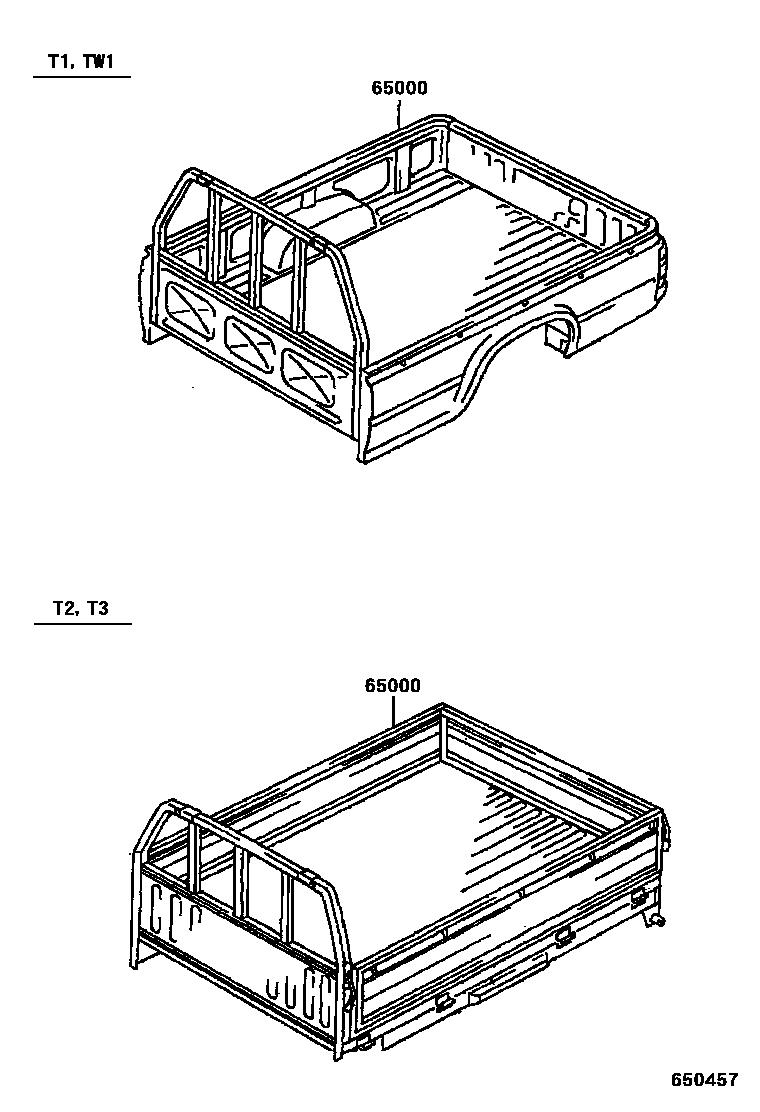

Parts diagram

65000BODY ASSY, REAR

main66000-35130i199108-199601

main66000-35200i199308-199408

main66000-35380i198809-199601

main66000-35390i199108-199601

main66000-35400i199408-199601

main66000-35460i199601-199708

main66000-35500i199601-199708

main66000-35510i199601-199708

main66000-35540i199601-199708

main66000-35570i199601-199708

main66000-35610i199601-199708

main66000-89340i198809-199708

main66000-89341i198809-199708

main66000-89349i198809-199601

main66000-89356i198809-199408

main66000-89357i198809-199708

main66000-89364i198809-199408

main66000-89368i198809-199708

main66000-89373i198809-199601

main66000-89382i198809-199708

main66000-89383i198809-199708

1 parts on this diagram · 1 diagram in section

REAR BODY ASSEMBLY for Toyota HILUX

This section contains 1 genuine Toyota parts for the REAR BODY ASSEMBLY system of the Toyota HILUX. Key components include: BODY ASSY, REAR.
