Toyota HILUX — RADIO RECEIVER & AMPLIFIER & CONDENSER

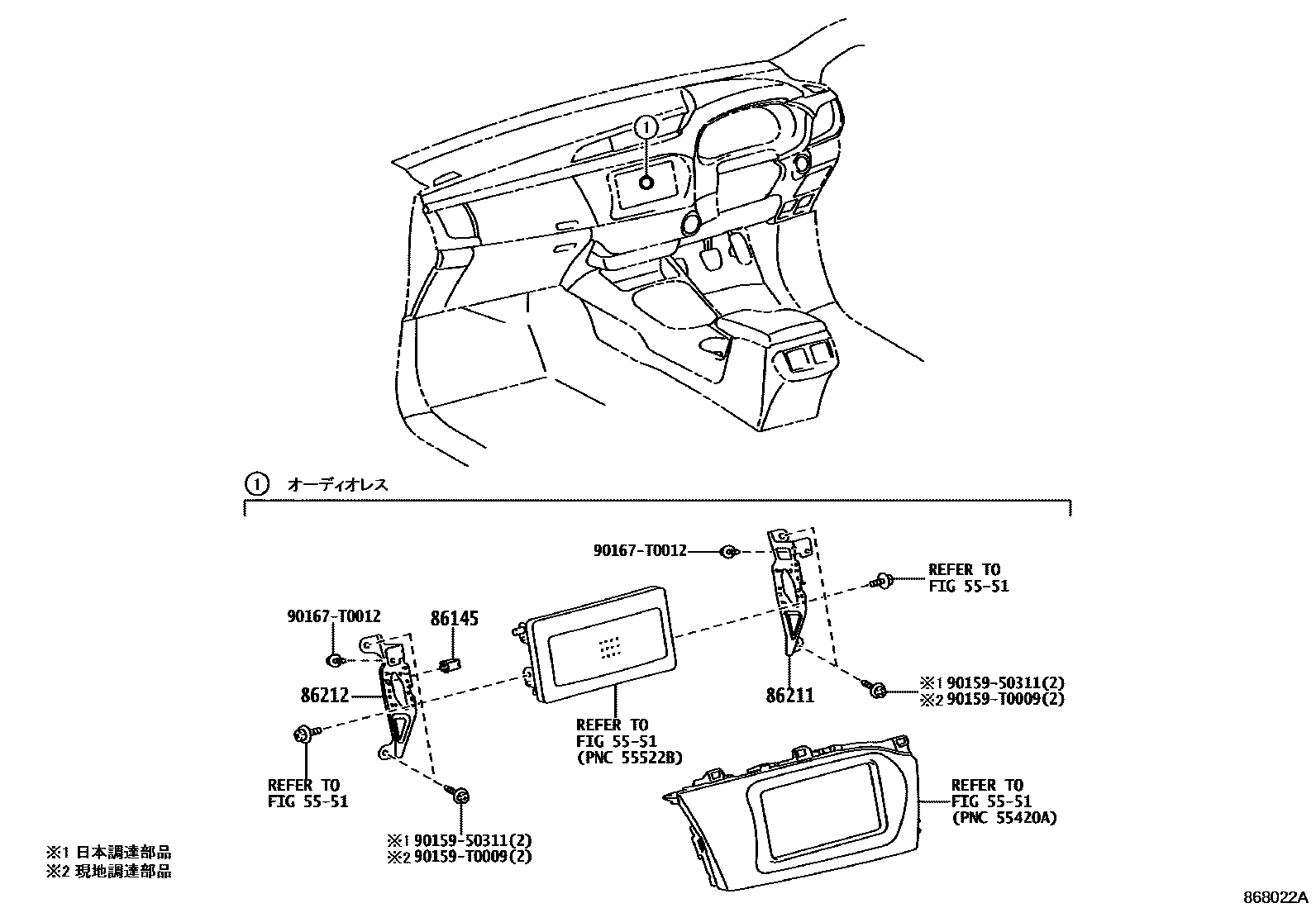

Parts diagram

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

86145CONNECTOR, ANTENNA MALE

main86145-52010i202006-202108

86211BRACKET, RADIO, NO.1

main86211-KK050i202006-202108

86212BRACKET, RADIO, NO.2

main86212-KK050i202006-202108

9015950311

main90159-50311

90159T0009

main90159-T0009

90167T0012

main90167-T0012

7 parts on this diagram · 1 diagram in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota HILUX

This section contains 7 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota HILUX. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, CONNECTOR, ANTENNA MALE, BRACKET, RADIO, NO.1, BRACKET, RADIO, NO.2.
