Toyota HILUX — PARTIAL ENGINE ASSEMBLY

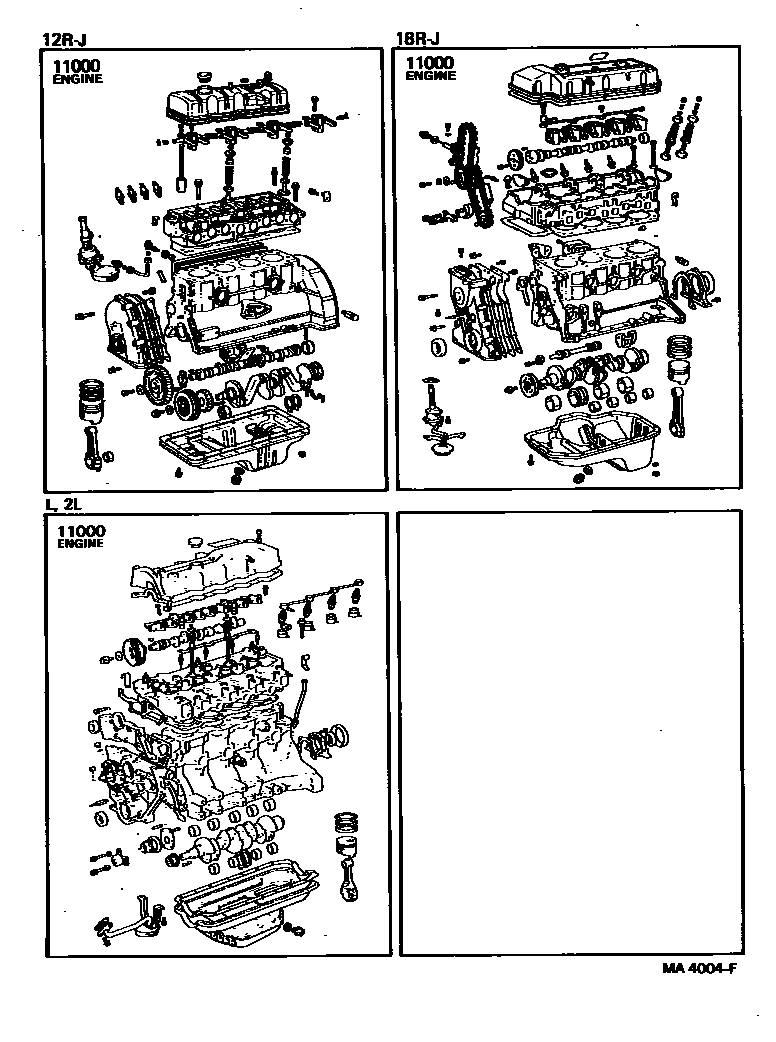

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-31260i197808-197912
sub19000-31261
main19000-31280i197912-198001
main19000-31281i198001-198809
main19000-34500i197910-198110
main19000-34520i198110-198208
main19000-34521i198208-198310
main19000-54050i197912-198105
sub11321-54013
main19000-54051i198105-198107
main19000-54102i198110-198202
main19000-54103i198202-198204
sub11321-54014
sub13568-54050
sub13613-54020
sub90109-08087
sub90170-08184
sub94611-10800
main19000-54104i198204-198205
sub11321-54014
sub13568-54050
sub13613-54020
main19000-54105i198205-198308
main19000-54110i198107-198202
main19000-54111i198202-198204
sub11321-54014
sub13568-54050
sub13613-54020
sub90109-08087
sub90170-08184
sub94611-10800
main19000-54112i198204-198205
sub11321-54014
sub13568-54050
sub13613-54020
main19000-54113i198205-198308
main19000-54250i198308-198310
sub19000-54251
main19000-54260i198308-198310
main19000-54360i198310-198508
sub19000-54361
main19000-54610i198508-198805
sub13405-54011
sub90105-12109
main19000-54611i198805-198807
main19000-54612i198807-198809

1 parts on this diagram · 1 diagram in section
