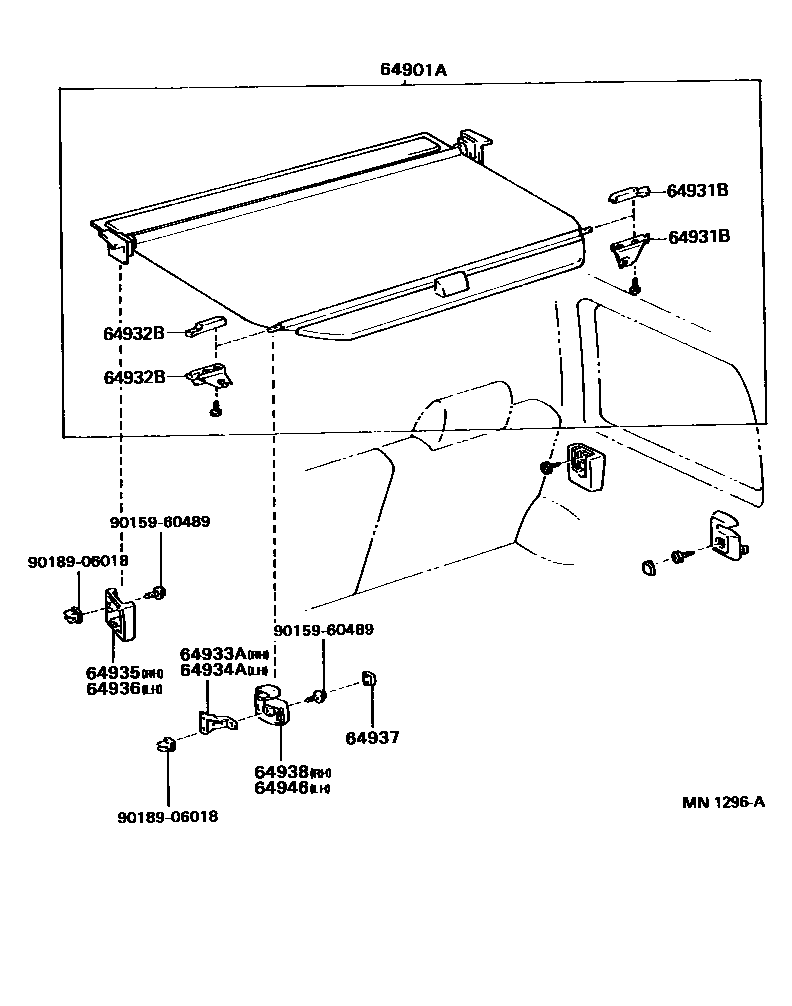

Toyota HILUX — PACKAGE TRAY PANEL

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-35020-B1i199204-199207

main64901-35020-J1i199108-199308

BLUE,TRIM8#

64931BHANGER, TONNEAU COVER, RH

main64931-35010-B0i199108-199511

GRAY,TRIM1#,UPPER

main64931-35010-J0i199108-199308

BLUE,TRIM8#,UPPER

main64951-35010-B0i199108-199511

GRAY,TRIM1#,LOWER

main64951-35010-J0i199108-199308

BLUE,TRIM8#,LOWER

64932BHANGER, TONNEAU COVER, LH

main64932-35010-B0i199108-199511

GRAY,TRIM1#,UPPER

main64932-35010-J0i199108-199308

BLUE,TRIM8#,UPPER

main64952-35010-B0i199108-199511

GRAY,TRIM1#,LOWER

main64952-35010-J0i199108-199308

BLUE,TRIM8#,LOWER

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-35020i199204-199207

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-35020i199204-199207

64935HOLDER, TONNEAU COVER, RH

main64935-35010-B0i199310-199403

main64935-35010-J0i199108-199308

BLUE,TRIM8#

64936HOLDER, TONNEAU COVER, LH

main64936-35010-B0i199204-199207

main64936-35010-J0i199108-199308

BLUE,TRIM8#

64937CAP, TONNEAU COVER HOLDER, NO.1

main64937-35020-B0×2i199108-199511

GRAY,TRIM1#

main64937-35020-J0×2i199108-199308

BLUE,TRIM8#

64938HOOK, TONNEAU COVER, A

main64938-35010-B0i199204-199207

main64938-35010-J0i199108-199308

BLUE,TRIM8#

64946HOOK, TONNEAU COVER, B

main64946-35010-B0i199108-199511

GRAY,TRIM1#

main64946-35010-J0i199108-199308

BLUE,TRIM8#

9015960489

main90159-60489

9018906018

main90189-06018

12 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota HILUX

This section contains 12 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota HILUX. Key components include: RETRACTOR SUB-ASSY, TONNEAU COVER, HANGER, TONNEAU COVER, RH, HANGER, TONNEAU COVER, LH, BRACKET, TONNEAU COVER HOLDER, RH, BRACKET, TONNEAU COVER HOLDER, LH.
