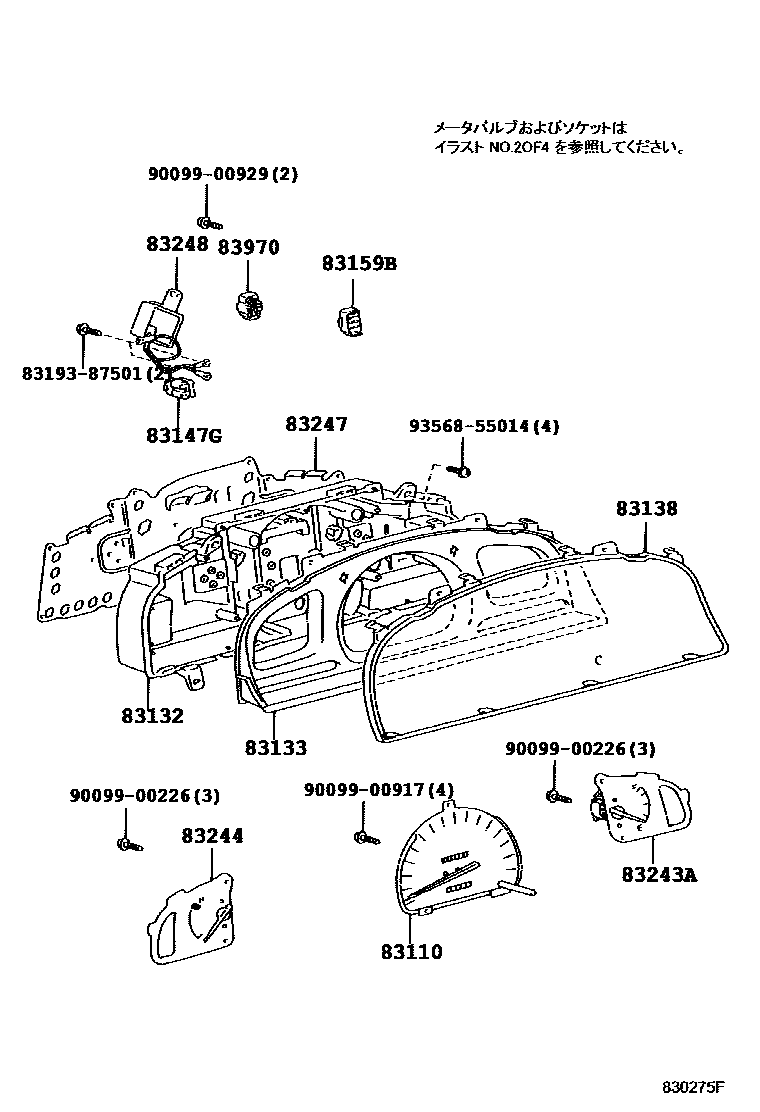

Toyota HILUX — METER
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83147GCONNECTOR, COMBINATION METER
83159BRELAY ASSY, METER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
83248CHIME, SPEED WARNING
83970BUZZER ASSY, REVERSE WARNING
8319387501
main83193-87501
9009900226
main90099-00226
9009900917
main90099-00917
9009900929
main90099-00929
9356855014
main93568-55014
16 parts on this diagram · 6 diagrams in section
METER for Toyota HILUX
This section contains 44 genuine Toyota parts for the METER system of the Toyota HILUX. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
