Toyota HILUX — METER

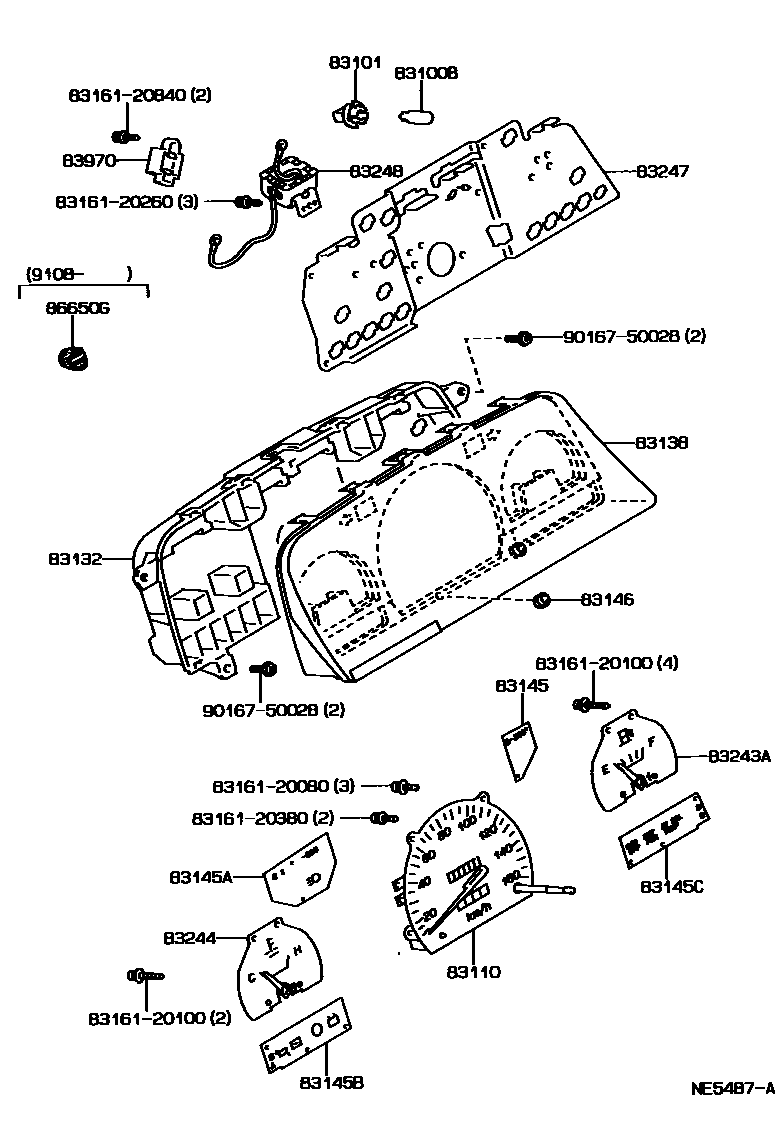

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83109-37020i199308

main90981-11018×9i198809-199008

main99132-12034×6i198809-199108

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×14i199308-199408

BULB:12V 1.4W

main83101-20040×5i199108-199308

BULB:12V 3.4W; BULB;12V 3.4W

83110SPEEDOMETER ASSY

main83110-35110i199008-199105

main83110-35120i199108-199408

main83110-35250i199108-199408

main83110-35310i199108-199408

main83110-35320i199108-199408

main83110-35410i199108-199408

main83110-35610i199105-199108

main83110-35680i199105-199108

main83110-35700i199105-199108

main83110-35800i199105-199108

main83110-35820i199105-199108

main83110-3D070i199408-199708

main83110-3D130i199408-199708

main83110-3D140i199408-199511

main83110-3D260i199408-199708

main83110-3D330i199408-199511

main83110-3D420i199408-199708

main83110-89304i198809-199008

main83110-89312i198809-199105

main83110-89320i198809-199105

main83110-89326i198809-199008

main83110-89327i198809-199008

main83110-89338i199008-199105

83132CASE, COMBINATION METER

main83132-35020i199108-199408

main83132-35040i199408-199511

main83132-89502i198809-199108

main83132-89504i199408

83138GLASS, SPEEDOMETER

main83138-35040i199108-199308

main83138-35120i199308

main83138-89508i198809-199108

main83138-89510i198809-199008

main83138-89516i198904-199008

main83138-89518i198809-199008

main83138-89522i199408

main83138-89524i198809-199008

main83138-89526i198809

main83138-89532i199308-199511

83145LENS, METER, NO.1

main83145-89504i198809

main83145-89546i198809

83145ALENS, METER, NO.2

main83145-35180i199108

main83145-89408i199408

main83145-89502i198809

main83145-89558i198809

83145BLENS, METER, NO.3

main83145-35140i199108-199408

main83145-89402i198809-199108

main83145-89516i198809

main83145-89522i199108

main83145-89532i198809-199008

main83145-89548i199108

main83145-89602i199408

83145CLENS, METER, NO.4

main83145-35240i199108-199408

main83145-35380i199408-199511

main83145-35420i199408

main83145-89512i198809-199008

main83145-89524i199308-199408

main83145-89550i198904-199108

main83145-89606i199008-199108

main83145-89608i199008-199108

main83145-89610i199308-199408

83146GROMMET, METER GLASS

main83145-89318i198809

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-34020i199408-199511

main83243-35040i199108

main83243-35060i199408

main83243-35080i199108-199408

main83243-35100i199108-199408

main83243-35140i199408

main83243-89504i198809-199108

main83243-89506i198809-199108

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-34120i199408

main83244-35040i199108

main83244-35100i199108

main83244-35140i199108-199408

main83244-89504i198809-199108

main83244-89506i198809-199108

main83244-89510i198809-199108

83247PLATE, METER CIRCUIT

main83149-35180i199408

main83149-35360i199408

main83149-35370i199510

main83149-35400i199510-199511

main83149-35410i199510-199511

main83149-35480i199510-199511

main83149-35490i199510-199511

main83247-35140i199108-199408

main83247-35300i199108-199408

main83247-35340i199308-199408

main83247-35360i199308-199408

main83247-35380i199108-199408

main83247-35620i199108-199408

main83247-35660i199108-199510

main83247-35680i199108-199510

main83247-89404i199408-199510

main83247-89502i198809-199008

main83247-89522i198809-199108

main83247-89542i198809-199008

main83247-89548i198904-199008

main83247-89552i198904-199108

main83247-89554i199008-199108

main83247-89610i199008-199108

main83247-89612i199408-199510

main83247-89614i199408-199510

main83247-89624i199008-199108

main83861-35010i199508

83248CHIME, SPEED WARNING

main86640-89103i198809-199108

main86640-89104i199408

83970BUZZER ASSY, REVERSE WARNING

main83970-22010i198809-199408

86650GBUZZER ASSY

main86650-12030i199408-199511

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120260CASE, COMBINATION METER MIRROR, NO.1

main83161-20260

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120840CASE, COMBINATION METER MIRROR, NO.1

main83161-20840

9016750028

main90167-50028

22 parts on this diagram · 4 diagrams in section

METER for Toyota HILUX

This section contains 49 genuine Toyota parts for the METER system of the Toyota HILUX. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, GLASS, SPEEDOMETER.
