Toyota HILUX — LPG FILTER

04234AELEMENT KIT, LPG

main04234-44012i198411-198808

LPG PACKAGE,3YP

23400FILTER ASSY, LPG

main23400-40024i198411-198808

LPG PACKAGE,3YP

23401BOLT SUB-ASSY, STUD(FOR LPG FILTER)

main23401-40020i198411-198808

LPG PACKAGE,3YP

23401ANUT(FOR LPG FILTER STUD BOLT SET)

main94115-40500i198411-198808

LPG PACKAGE,3YP

23415PLATE, ELEMENT

main23415-40010i198411-198808

LPG PACKAGE,3YP

23972BRACKET, FILTER & SOLENOID VALVE

main23972-73040i198411-198502

LPG PACKAGE,3YP

main23972-73041i198502-198808

LPG PACKAGE,3YP

9111140618

main91111-40618

9165140614

main91651-40614

9165640818

main91656-40818

9451200600

main94512-00600

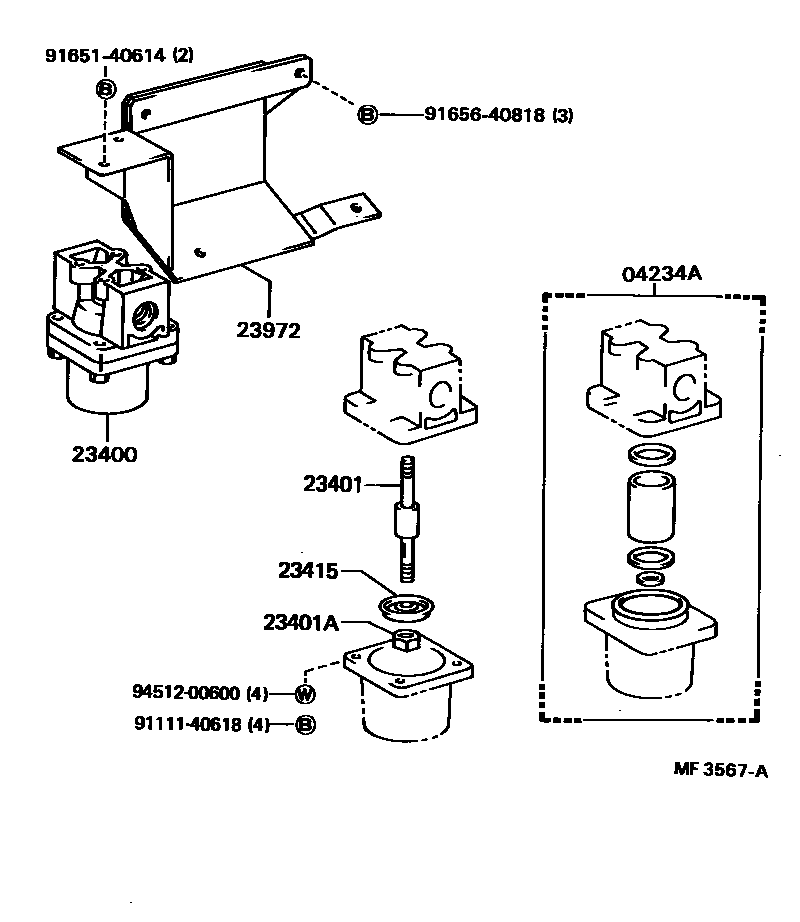

10 parts on this diagram · 1 diagram in section

LPG FILTER for Toyota HILUX

This section contains 10 genuine Toyota parts for the LPG FILTER system of the Toyota HILUX. Key components include: ELEMENT KIT, LPG, FILTER ASSY, LPG, BOLT SUB-ASSY, STUD(FOR LPG FILTER), NUT(FOR LPG FILTER STUD BOLT SET), PLATE, ELEMENT.
