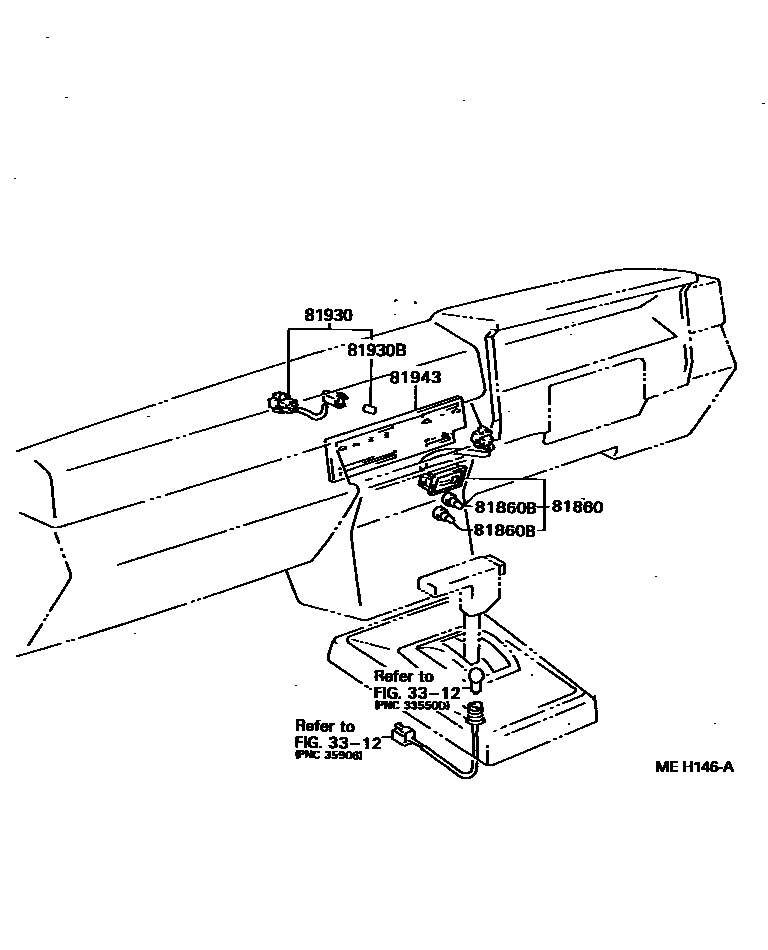

Toyota HILUX — INDICATOR

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-35010i198311-198608

OVER DRIVE

main81860-35030i198608-198903

OVER DRIVE

main81860-35040i198608-198903

ECT

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110×2i198311-198903

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-89115i198311-198903

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11014i198311-198903

81943LENS, HEATER CONTROL INDICATOR

main55519-89115i198311-198608

main55519-89119i198311-198608

W/CLOCK

main55519-89128i198608-198708

W/CLOCK

main55519-89129i198608-198708

main55519-89140i198708-198710

W/CLOCK

main55519-89141i198708-198808

6 parts on this diagram · 1 diagram in section

INDICATOR for Toyota HILUX

This section contains 6 genuine Toyota parts for the INDICATOR system of the Toyota HILUX. Key components include: SHIFT LEVER & RETAINER, LAMP ASSY, TRANSMISSION INDICATOR, BULB, TRANSMISSION INDICATOR LAMP, LAMP ASSY, HEATER CONTROL INDICATOR, NO.1, BULB, HEATER CONTROL INDICATOR LAMP.
