Toyota HILUX — HEATING & AIR CONDITIONING - SET

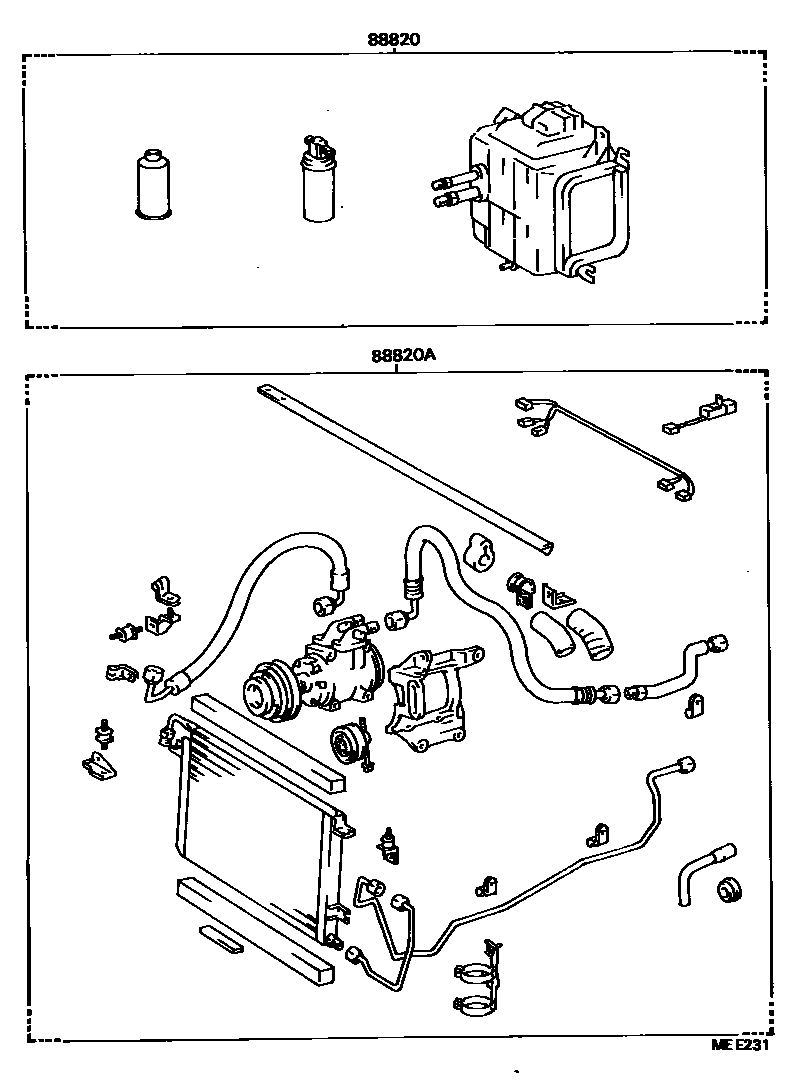

Parts diagram

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-89102i198311-198608

main88820-89104i198311-198411

main88820-89107i198411-198903

main88820-89108i198608-198903

main88820-89109i198608-198903

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-89103i198311-198608

main88830-89108i198311-198608

main88830-89113i198405-198608

main88830-89114i198405-198608

main88830-89115i198411-198608

main88830-89117i198608-198903

main88830-89118i198608-198903

main88830-89119i198608-198808

main88830-89120i198608-198808

main88830-89121i198608-198903

main88830-89122i198608-198903

2 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota HILUX

This section contains 2 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota HILUX. Key components include: AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2.
