Toyota HILUX — HEATING & AIR CONDITIONING - SET

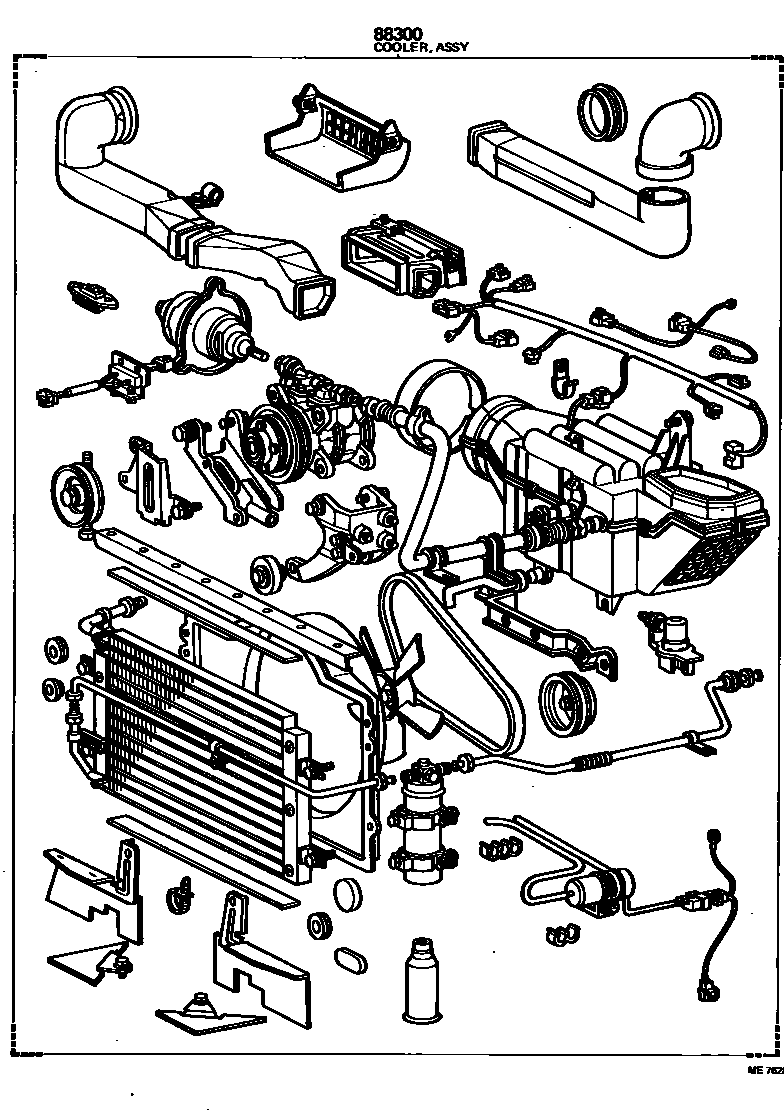

88300COOLER & ACCESSORY ASSY

main88300-89120i197808-197912

main88300-89130i197912-198110

12V

main88300-89134i197912-198110

main88300-89139i198110-198310

main88300-89149i198110-198310

main88300-89165i198110-198310

COLD SPEC

main88300-95116i197910-198110

main88300-95123i198110-198310

main88300-95126i198110-198310

1 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - SET for Toyota HILUX

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota HILUX. Key components include: COOLER & ACCESSORY ASSY, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2.
