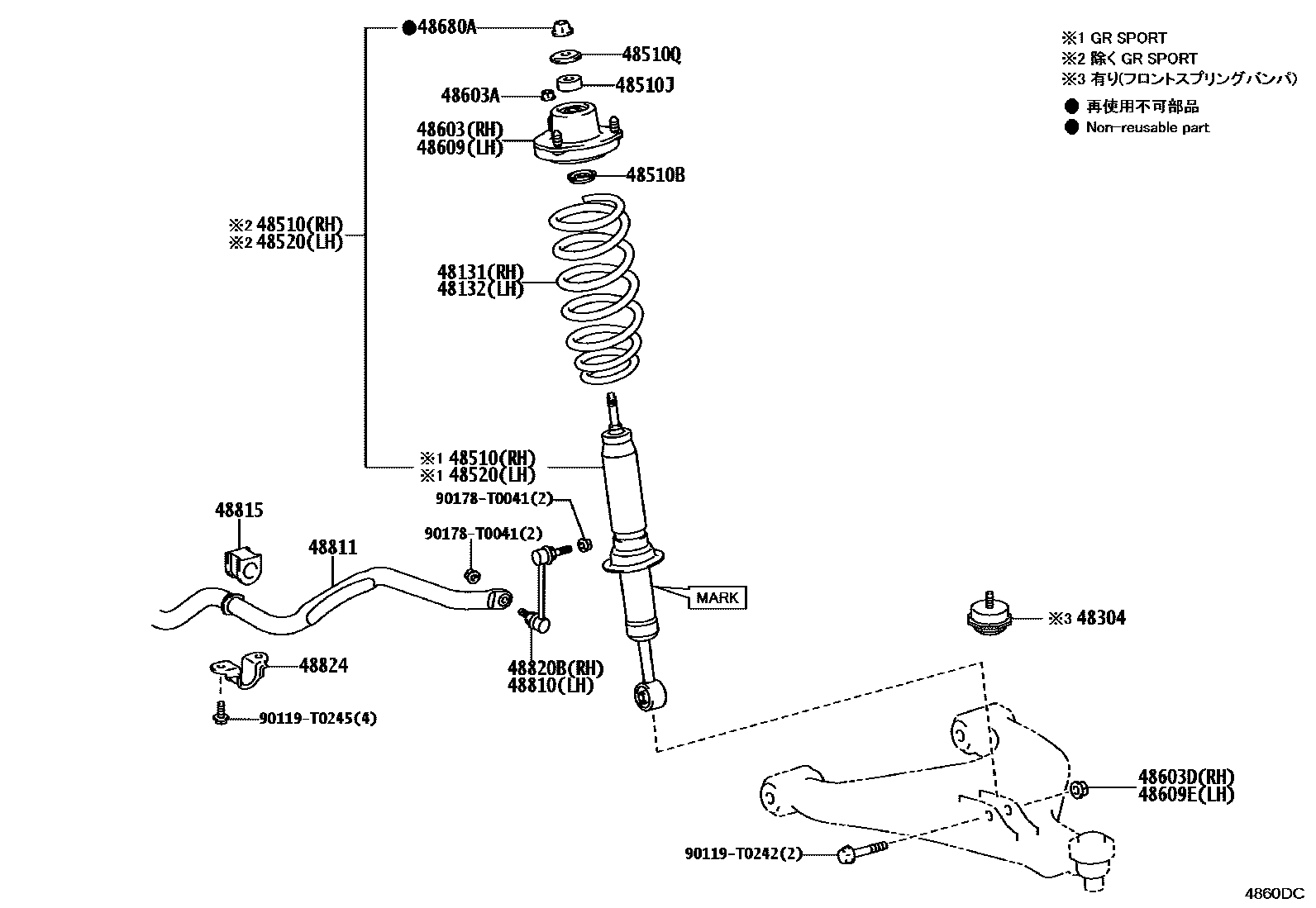

Toyota HILUX — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0KC21i202108-202207

main48131-YY230i202108-202207

48132SPRING, FRONT COIL, LH

main48131-0KC21i202108-202207

main48131-YY230i202108-202207

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K041×2i202108-202207

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z453i202108-202207

main48510-YY150i202108-202202

main48510-YY151i202203-202207

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003×2i202108-202207

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1013×2i202108-202207

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004×2i202108-202207

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z453i202108-202207

main48510-YY150i202108-202202

main48510-YY151i202203-202207

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K070i202108-202207

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050×6i202108-202207

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048i202108-202207

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K070i202108-202207

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048i202108-202207

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015×2i202108-202207

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010i202108-202207

48811BAR, STABILIZER, FRONT

main48811-0K170i202108-202207

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K090×2i202108-202207

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030i202108-202207

48824BRACKET, STABILIZER, FRONT

main48824-KK010×2i202108-202207

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota HILUX

This section contains 22 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota HILUX. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, BUMPER SUB-ASSY, FRONT SPRING, NO.1, ABSORBER ASSY, SHOCK, FRONT RH, RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER).
