Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

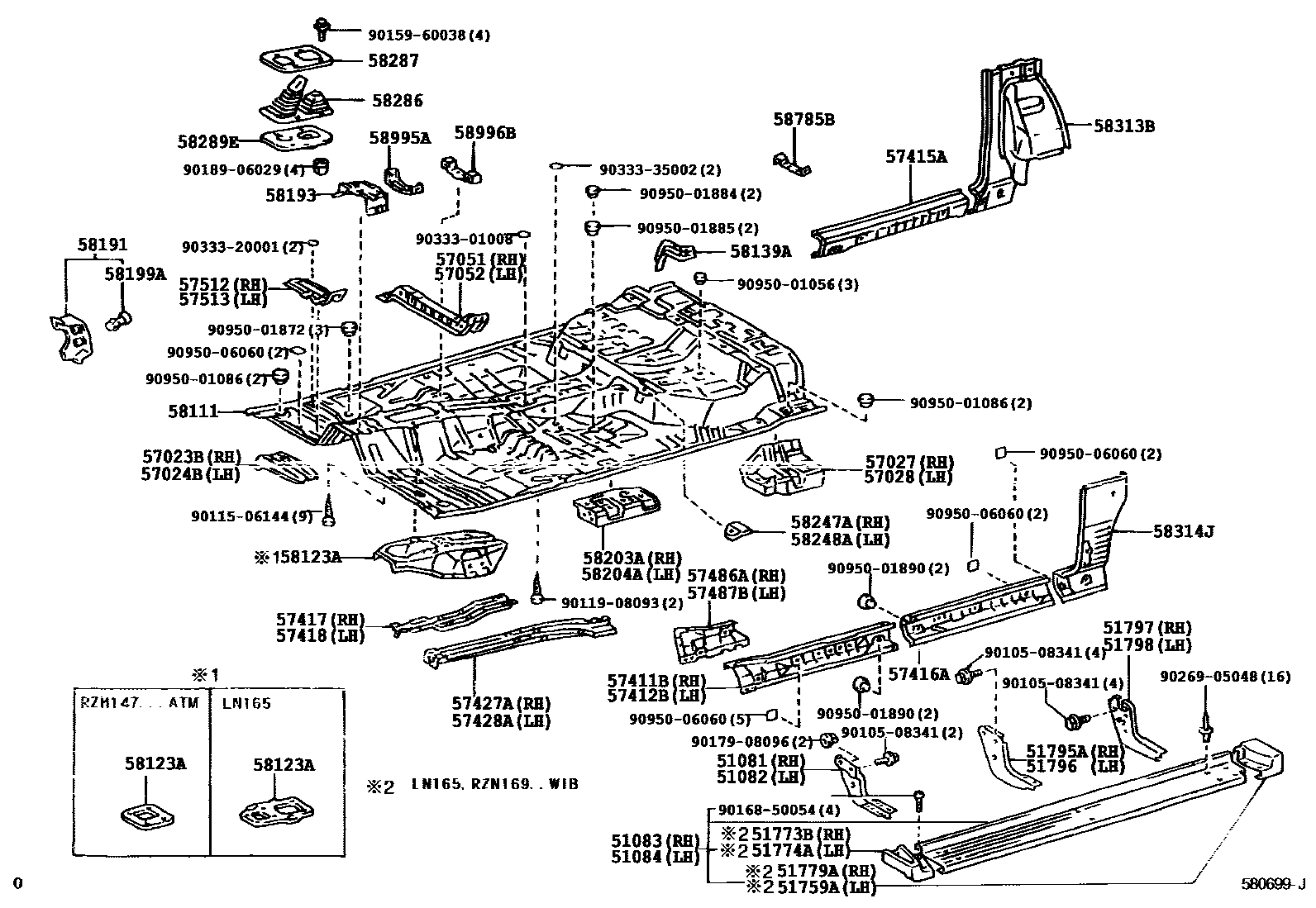

Parts diagram

51081STAY SUB-ASSY, SIDE STEP, NO.1 RH

main51081-35040i199708-200108

main51081-35050i199708-200108

51082STAY SUB-ASSY, SIDE STEP, NO.1 LH

main51082-35040i199708-200108

main51082-35050i200108-200407

51083STEP SUB-ASSY, RH

main51083-35100i200108-200307

main51083-35101i200307-200407

main51083-35110i199708-200108

main51083-35111i200307-200407

main51083-35120i199908-200108

main51083-35121i200307-200308

main51083-35130i200108-200307

main51083-35131i200307-200407

51084STEP SUB-ASSY, LH

main51084-35090i200108-200307

main51084-35091i200307-200407

main51084-35100i199708-200108

main51084-35101i200307-200310

main51084-35102i200310-200407

main51084-35110i199708-199908

main51084-35111i200307-200308

main51084-35120i200108-200307

main51084-35121i200307-200407

51759ACOVER, SIDE DOOR STEP PLATE, REAR LH

main51759-35040i200108-200407

main51759-35050i200108-200308

main51778-35040i200108-200407

51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH

main51773-35040i200108-200407

main51778-35040i199708-200108

51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH

main51774-35040i200108-200407

main51779-35040i199708-200108

51779ACOVER, SIDE DOOR STEP PLATE, REAR RH

main51779-35040i199708-200108

main51779-35050i200108-200407

main51779-35060i199708-200108

51795ABRACKET, SIDE STEP, NO.2 RH

main51795-35030i199708-200108

main51795-35040i199708-199908

main51795-35050i200108-200407

51796BRACKET, SIDE STEP, NO.2 LH

main51796-35030i200108-200407

main51796-35040i199708-199908

main51796-35050i199708-200108

51797BRACKET, SIDE STEP, NO.3 RH

main51797-35040i199711-200108

main51797-35050i199708-200108

main51797-35060i199708-200108

51798BRACKET, SIDE STEP, NO.3 LH

main51798-35040i199711-200108

main51798-35050i200108-200407

main51798-35060i200108-200308

57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-35050i200108-200407

57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-35050i200108-200407

57027BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH

main57027-35020i200108-200308

57028BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH

main57028-35020i200108-200407

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35020i199708-200108

main57051-35040i199708-199803

main57051-35041i200108-200308

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35020i199708-200108

main57052-35040i199708-199803

main57052-35041i199803-200108

57411BMEMBER, FLOOR SIDE, INNER RH

main57411-35050i199708-200108

57412BMEMBER, FLOOR SIDE, INNER LH

main57412-35050i200108-200308

57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH

main57415-35020i199708-200108

57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH

main57416-35020i199708-200108

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35040i199708-200108

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-35040i199708-200108

57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-35010i199708-200108

main57427-35020i200108-200308

57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57428-35010i199708-200108

main57428-35020i199708-200108

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-35020i199708-200108

57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-35020i199708-200108

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-35020i199708-199711

main57512-35021i199711-200108

main57512-35030i200108-200308

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-35020i199708-199711

main57513-35021i200108-200407

main57513-35030i200108-200308

58111PAN, FRONT FLOOR

main58111-04270i199711-200101

main58111-04271i200101-200108

main58111-04290i199711-200101

main58111-04291i200101-200108

main58111-04300i199908-200101

main58111-04301i200101-200108

main58111-35230i199708-200101

main58111-35231i200108-200407

main58111-35240i199708-200101

main58111-35241i200108-200308

main58111-35250i199708-200101

main58111-35251i200108-200308

main58111-35300i199708-200101

main58111-35301i200101-200108

main58111-35310i199708-200101

main58111-35311i200101-200108

main58111-35320i199708-200101

main58111-35321i200108-200308

main58111-35330i199708-200101

main58111-35331i200101-200108

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-35010i199708-200108

main58123-35050i199708-199909

main58123-35051i199909-200010

main58123-35052i200010-200108

main58123-35060i200108-200308

main58123-89101i199708-199803

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-35010i200108-200308

58191FOOTREST, FRONT FLOOR

main58190-35020i199708-200108

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-35040i199708-200108

58199ACLIP, FOOTREST, NO.2

main58199-20030×2i199708-200108

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-35010i199711-200108

main58203-35020i199708-200108

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-35010i199711-200108

main58204-35020i199708-200108

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-89102i199708-200108

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-89102i199708-200108

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-35050i199708-199908

main58286-35110i199708-200108

main58286-35130i199708-200108

main58286-35150i200108-200407

58287RETAINER, SHIFT LEVER BOOT

main58287-35030i200108-200407

main58287-35060i200108-200308

58289EBOOT, SHIFT LEVER, NO.2

main58289-35020i199708-199908

main58289-35070i200108-200407

main58289-35090i199708-200108

main58289-35120i199708-200108

58313BPANEL, REAR FLOOR SIDE, RH

main58313-35900i199708-200108

58314JPANEL, REAR FLOOR SIDE, LH

main58314-35030i199708-200108

58785BBRACKET, TOOL BAG BAND

main58785-89106i199708-200108

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-35030i199708-200108

58996BBRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-35010i199708-200108

9010508341

main90105-08341

9011506144

main90115-06144

9011908093

main90119-08093

9015960038

main90159-60038

9016850054

main90168-50054

9017908096

main90179-08096

9018906029

main90189-06029

9026905048

main90269-05048

9033301008

main90333-01008

9033320001

main90333-20001

9033335002

main90333-35002

9095001056

main90950-01056

9095001086

main90950-01086

9095001872

main90950-01872

9095001884

main90950-01884

9095001885

main90950-01885

9095001890

main90950-01890

9095006060

main90950-06060

66 parts on this diagram · 3 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX

This section contains 86 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, COVER, SIDE DOOR STEP PLATE, REAR LH.
