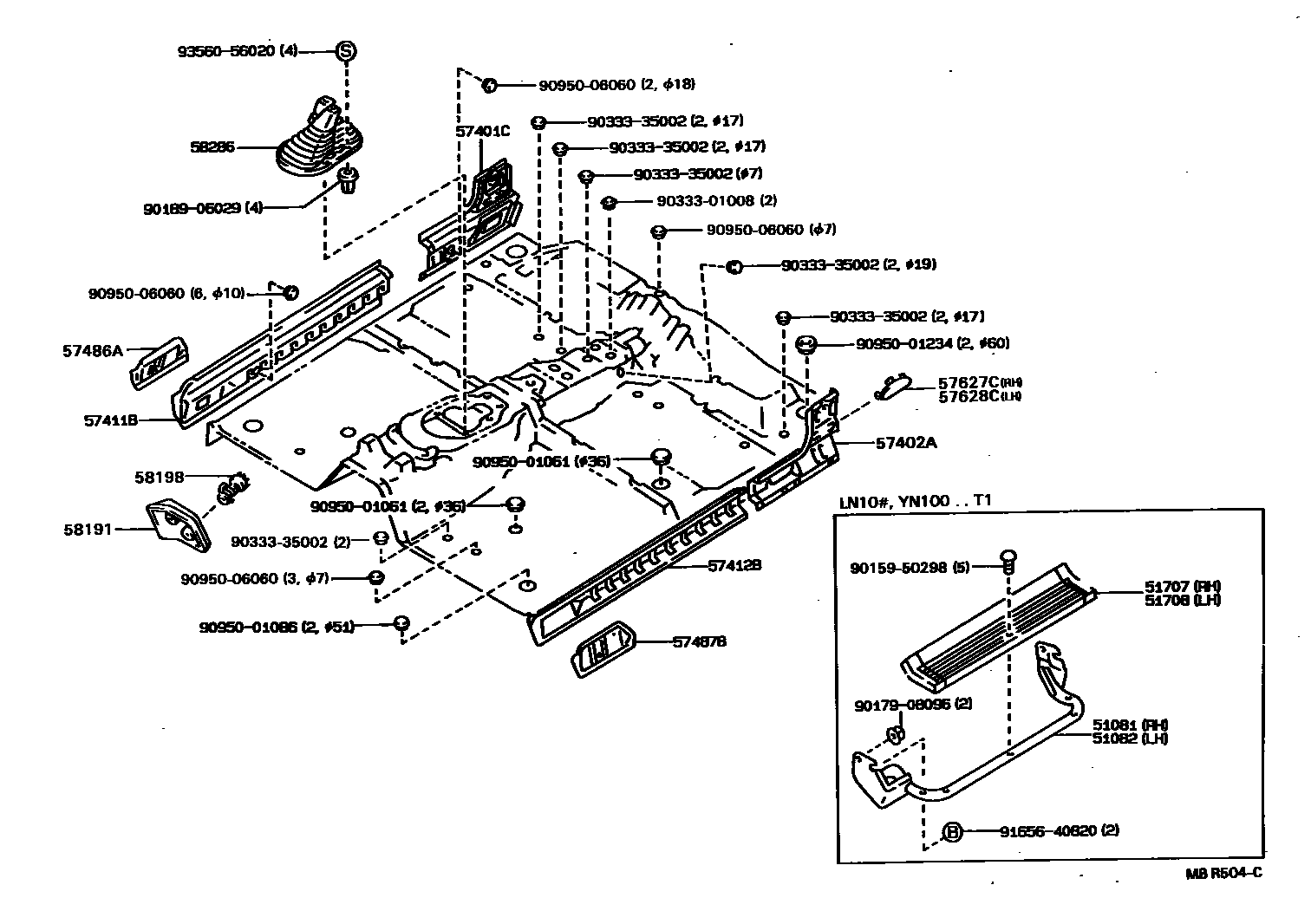

Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51081STAY SUB-ASSY, SIDE STEP, NO.1 RH
51082STAY SUB-ASSY, SIDE STEP, NO.1 LH
51707STEP SUB-ASSY, RH
51708STEP SUB-ASSY, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57411BMEMBER, FLOOR SIDE, INNER RH
57412BMEMBER, FLOOR SIDE, INNER LH
57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57627CCOVER, REAR FLOOR SIDE MEMBER, RH
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58286BOOT, SHIFT & SELECT LEVER, NO.1
9015950298
main90159-50298
9017908096
main90179-08096
9018906029
main90189-06029
9033301008
main90333-01008
9033335002
main90333-35002
9095001061
main90950-01061
9095001086
main90950-01086
9095001234
main90950-01234
9095006060
main90950-06060
9165640820
main91656-40820
9356056020
main93560-56020
26 parts on this diagram · 4 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX
This section contains 54 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, COVER, SIDE DOOR STEP PLATE, REAR LH.
