Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

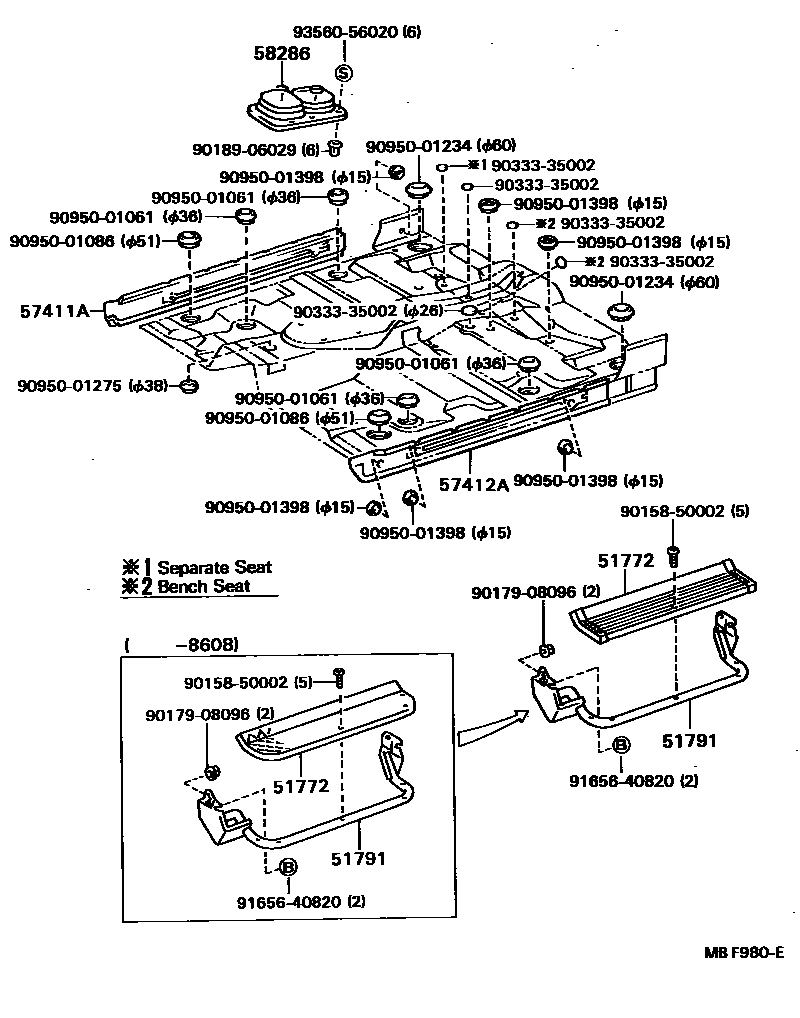

Parts diagram

51772PLATE, STEP

main51707-89104×2i198608-198903

main51707-89105×2i198608-198808

main51771-89101×2i198312-198608

main51771-95111×2i198311-198608

51791STAY, STEP

main51705-89104i198311-198608

RH

main51705-89109i198312-198608

RH

main51705-89110i198405-198608

RH

main51705-89117i198608-198808

RH

main51705-89118i198608-198903

RH

main51705-89119i198608-198808

RH

main51706-89104i198311-198608

LH

main51706-89109i198312-198608

LH

main51706-89110i198405-198608

LH

main51706-89117i198608-198808

LH

main51706-89118i198608-198903

LH

main51706-89119i198608-198808

LH

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-89103i198507-198903

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-89105i198507-198903

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-89105i198311-198903

main58280-89106i198311-198808

main58280-89108i198411-198903

9015850002

main90158-50002

9017908096

main90179-08096

9018906029

main90189-06029

9033335002

main90333-35002

9095001061

main90950-01061

9095001086

main90950-01086

9095001234

main90950-01234

9095001275

main90950-01275

9095001398

main90950-01398

9165640820

main91656-40820

9356056020

main93560-56020

16 parts on this diagram · 3 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX

This section contains 28 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: PLATE, STEP, PLATE SUB-ASSY, REAR STEP, RH, PLATE SUB-ASSY, REAR STEP, LH, STAY, STEP, STAY, STEP PLATE, NO.2.
