Toyota HILUX — FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
main69206-89105-J0iLN10#,13#,8#,VZN130,YN10#,130,8#..(4D,T1,T2,T3,TW1)..(DLX,SDX,SR,SSR); LN130,VZN130,YN130..2D199008-199108
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
BLUE,TRIM8#
GRAY,TRIM1#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
main69310-35180iKZN130,LN107,YN107..(4D,TW1)..SSR..(DSL,EFI,TDE); KZN130,LN108,109,112,VZN130..(4D,TW1)..SSRX199308-199708
69320LOCK ASSY, FRONT DOOR, LH
main69320-35160iKZN130,LN107,YN107..(4D,TW1)..SSR..(DSL,EFI,TDE); KZN130,LN108,109,112,VZN130..(4D,TW1)..SSRX199308
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
GRAY,TRIM1#
GRAY,TRIM1#
main69741-89104-J0×2iLN130..2D..SSR;LN10#,13#,8#,VZN130,YN10#,8#..(4D,T1,T2,T3,TW1)..(DLX,SDX,SR,SSR,SSRX)199108-199206
BLUE,TRIM8#
main69741-89104-J1×2iLN130..2D..SSR;LN10#,13#,8#,VZN130,YN10#,8#..(4D,T1,T2,T3,TW1)..(DLX,SDX,SR,SSR,SSRX)199206-199308
BLUE,TRIM8#
RED,TRIM3#
MEDIUM GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
NATURAL
69759SSNAP, FRONT DOOR INSIDE HANDLE
main69759-20060iKZN130,LN100,106,13#,8#,VZN130,YN100,130,8#..RCB,VAN,WG; LN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809
main69759-20070iKZN130,LN100,106,13#,8#,VZN130,YN100,130,8#..RCB,VAN,WG; LN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809
8401SWITCH & RELAY & COMPUTER
9014860022
main90148-60022
9014860023
main90148-60023
9014880027
main90148-80027
9016250008
main90162-50008
9016460015
main90164-60015
9018905003
main90189-05003
9018906018
main90189-06018
9165140612
main91651-40612

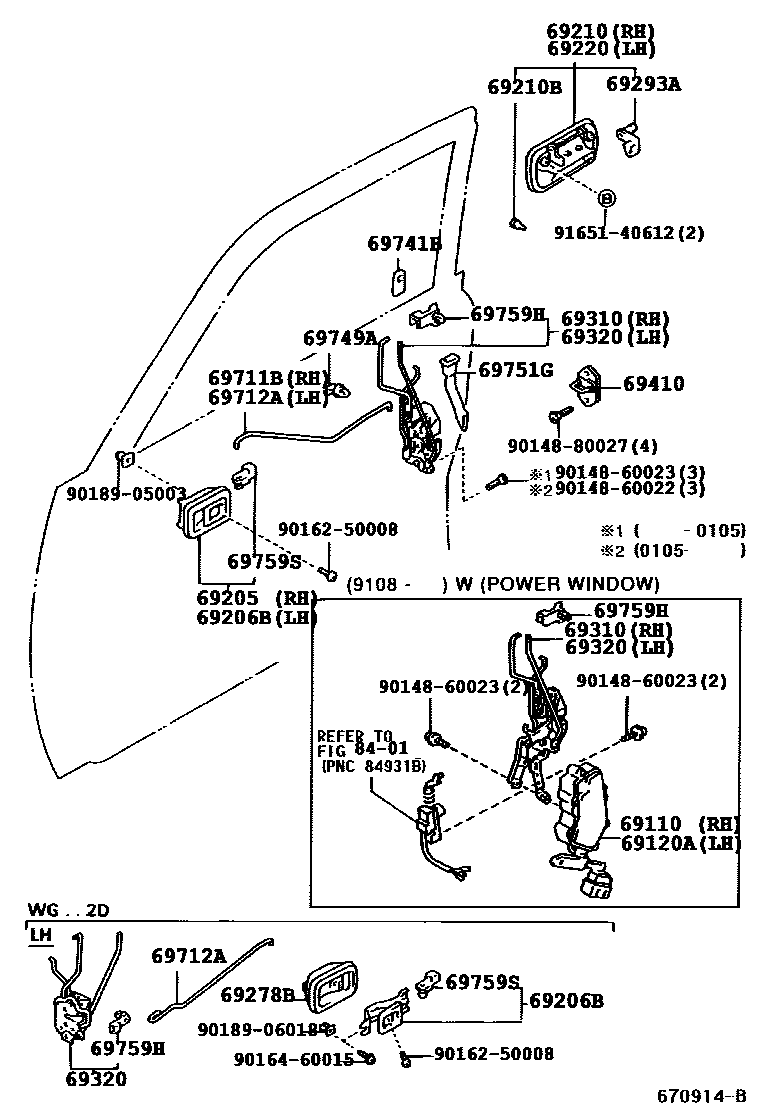

28 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota HILUX
This section contains 28 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota HILUX. Key components include: ACTUATOR ASSY, FRONT DOOR LOCK, RH, ACTUATOR ASSY, FRONT DOOR LOCK, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
