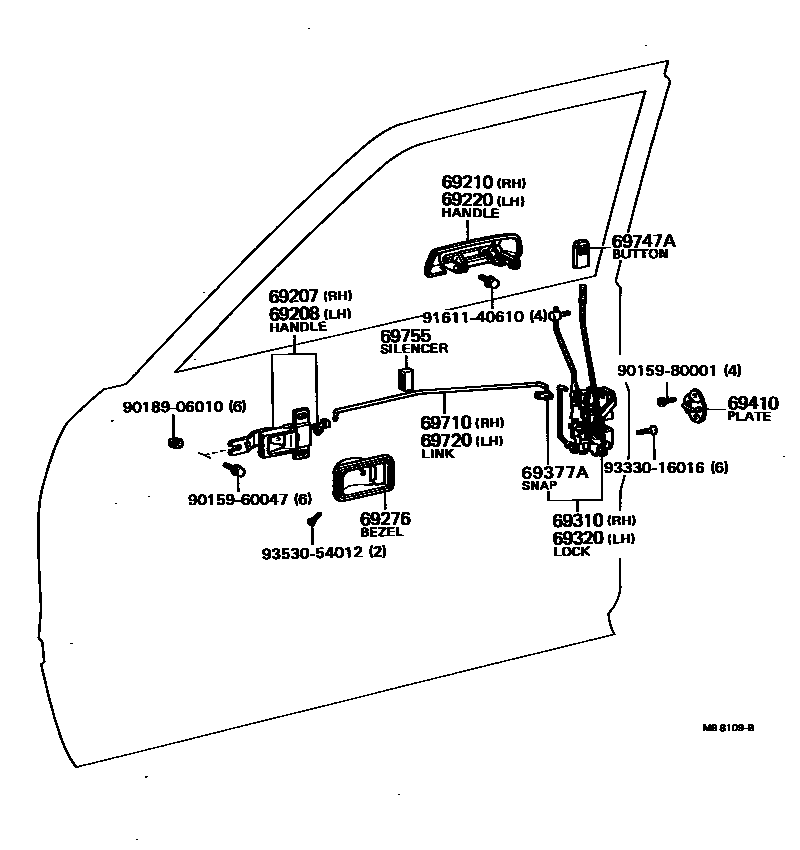

Toyota HILUX — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377ASNAP, BACK DOOR UPPER LOCK ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
69755SILENCER, FRONT DOOR LOCK LINK
9015960047
main90159-60047
9015980001
main90159-80001
9018906010
main90189-06010
9161140610
main91611-40610
9333016016
main93330-16016
9353054012
main93530-54012
19 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota HILUX
This section contains 19 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota HILUX. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH, BEZEL, FRONT DOOR INSIDE HANDLE.
